A8 Device User Guide

EN

中

Device User Guide

Function :

Scan QR Code

Display QR code

Octopus

Credit Card Payment

Instalment

EPS

DCC Sale

- Step 1 -

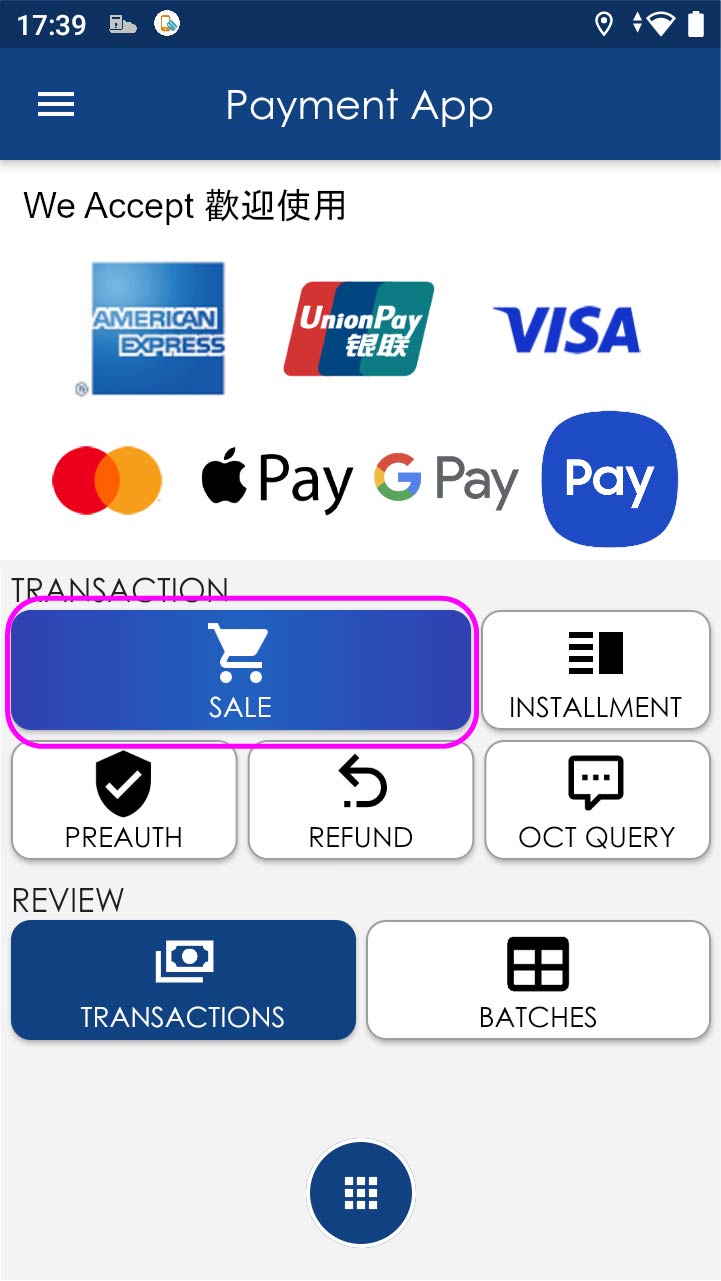

Press [Sale] on menu

- Step 2 -

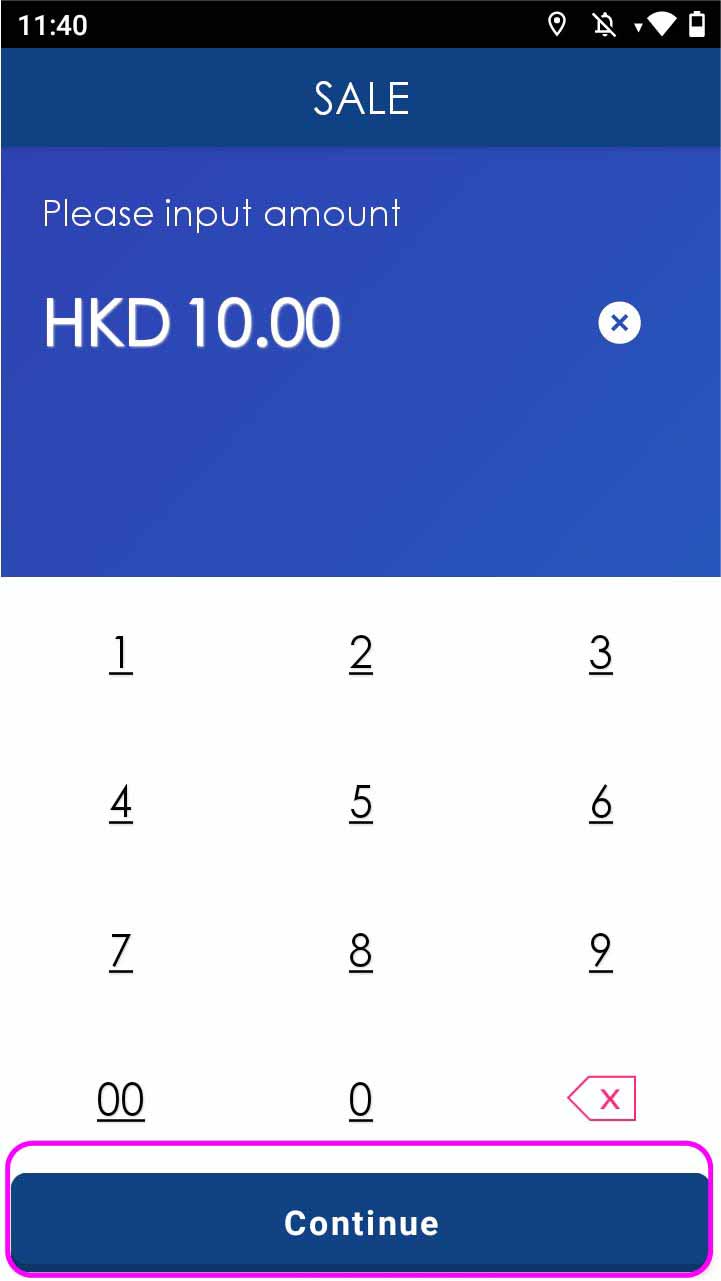

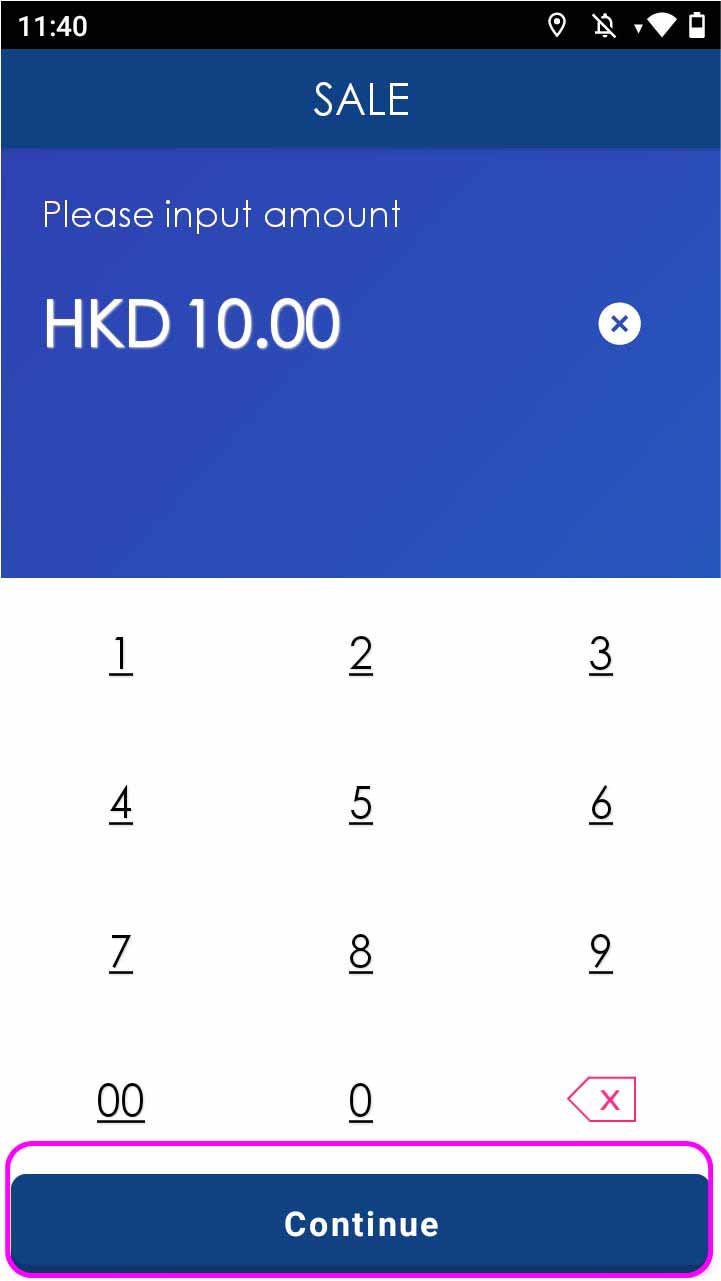

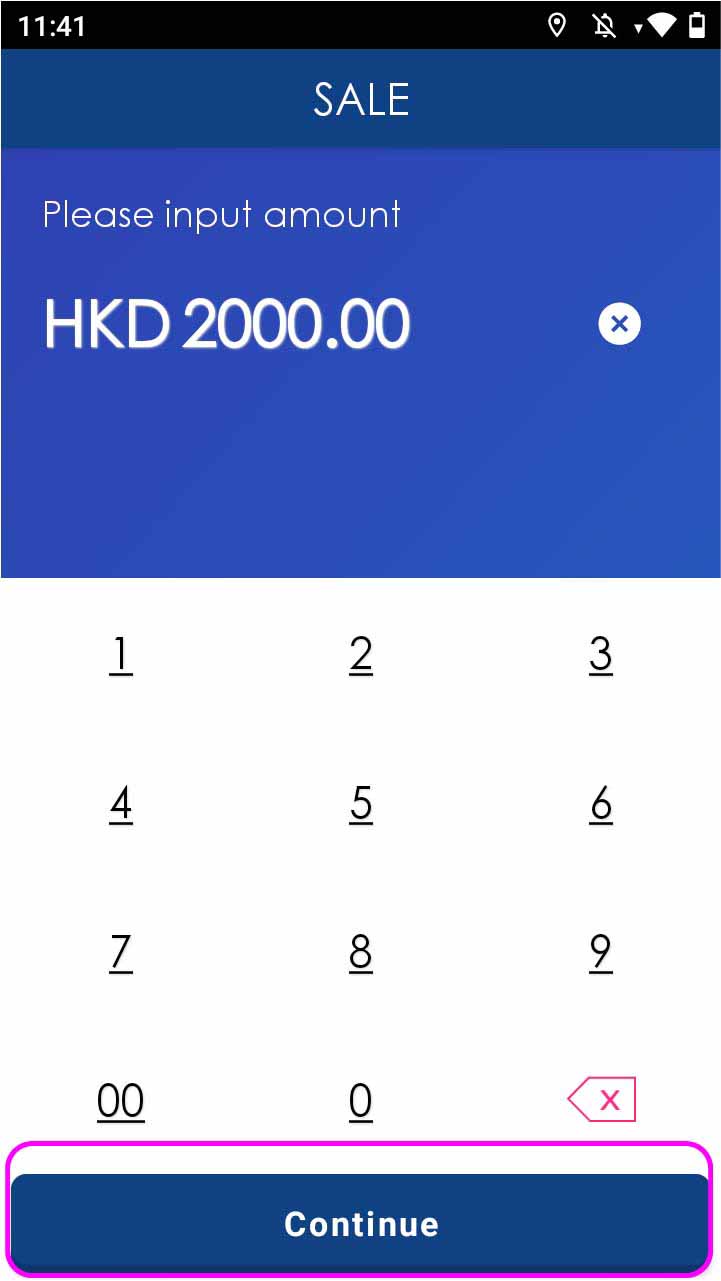

Enter sale amount, and press [Continue]

- Step 3 -

Press button to select QR code payment

- Step 4 -

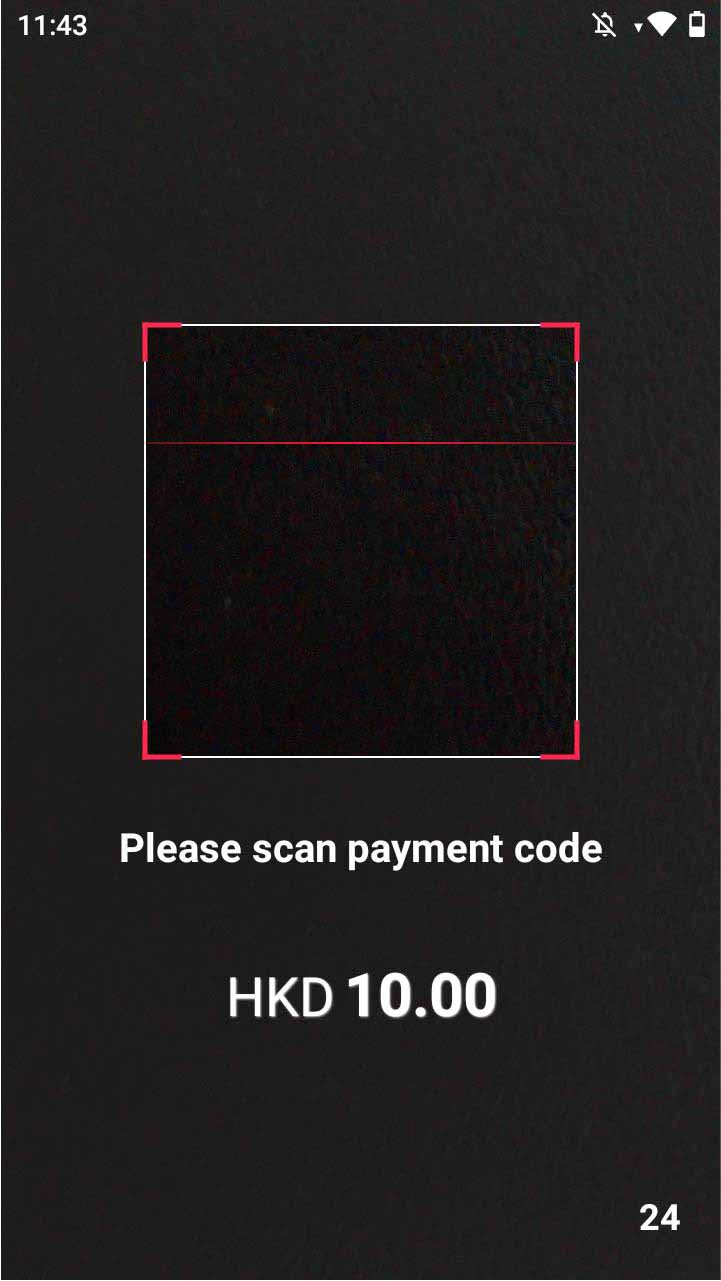

Scan QR code from client mobile

- Step 5 -

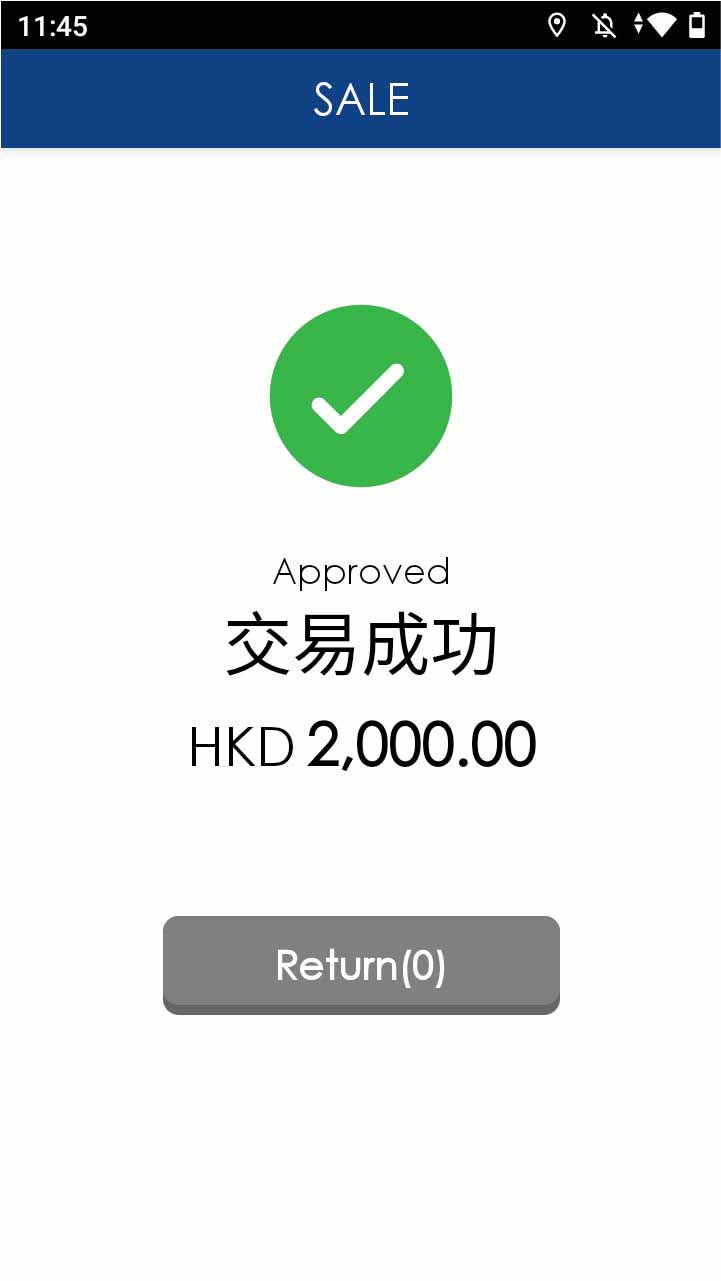

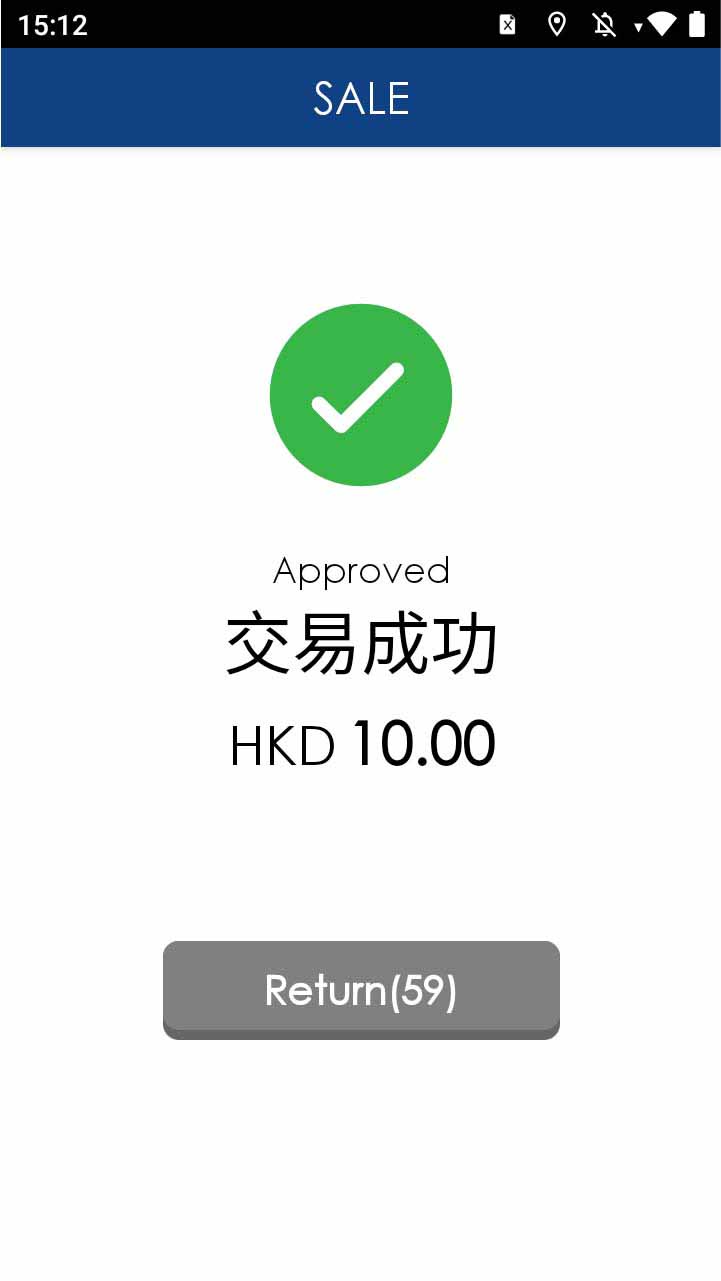

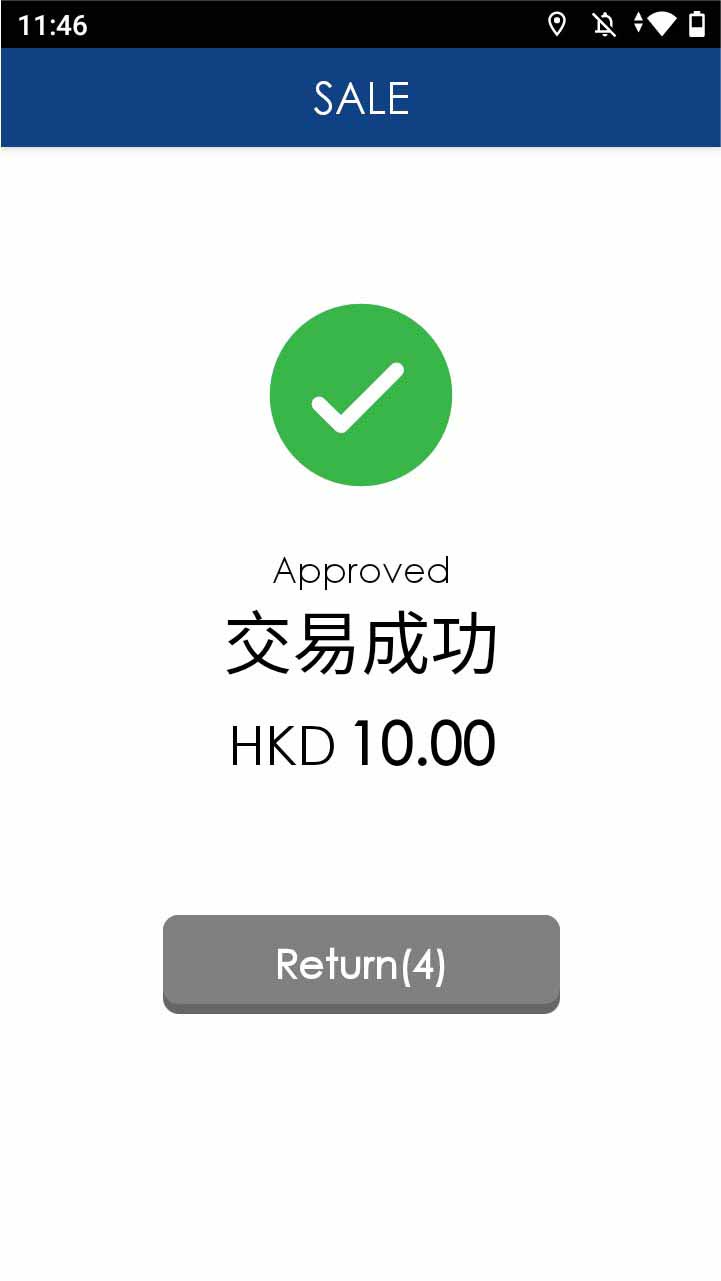

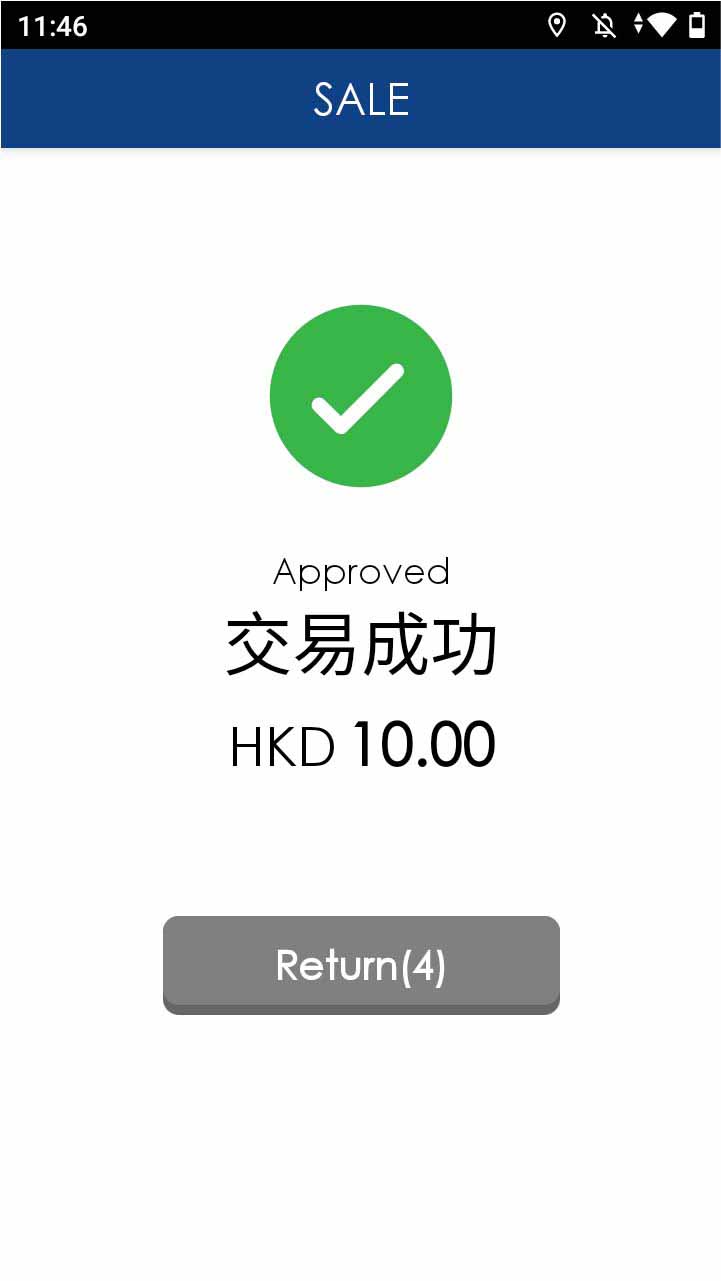

Transaction is completed, and terminal prints out receipt

- Step 1 -

Press [Sale] on menu

- Step 2 -

Enter sale amount, and press [Continue]

- Step 3 -

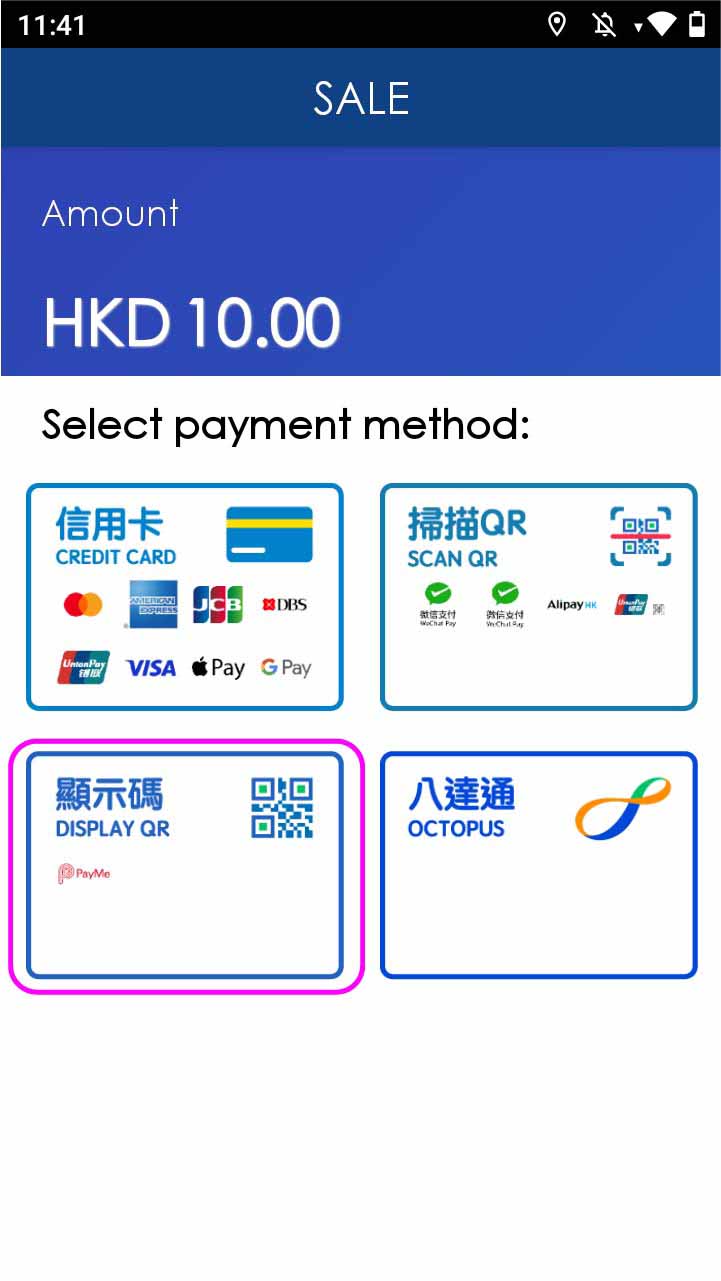

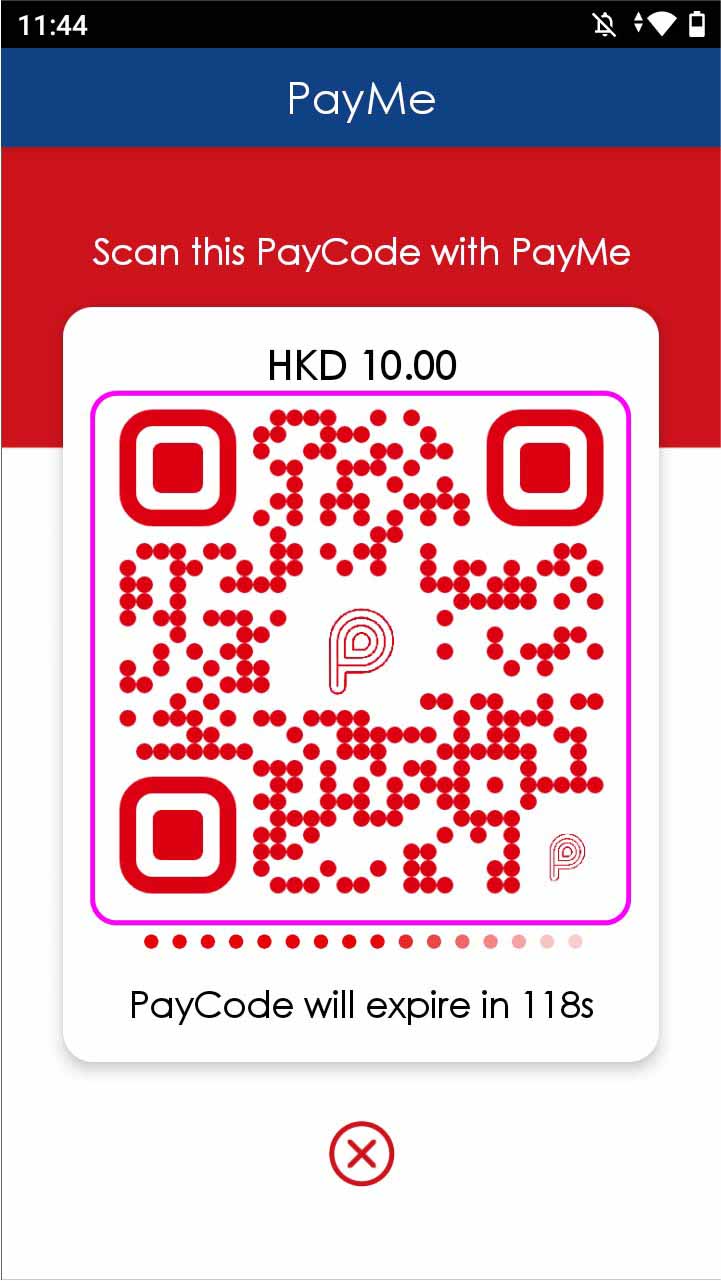

Press button to display QR code

- Step 4 -

Client scans QR code and confirm payment

- Step 5 -

Transaction is completed, and terminal prints out receipt

- Step 1 -

Press [Sale] on menu

- Step 2 -

Enter sale amount, and press [Continue]

- Step 3 -

Press button to select Octopus payment

- Step 4 -

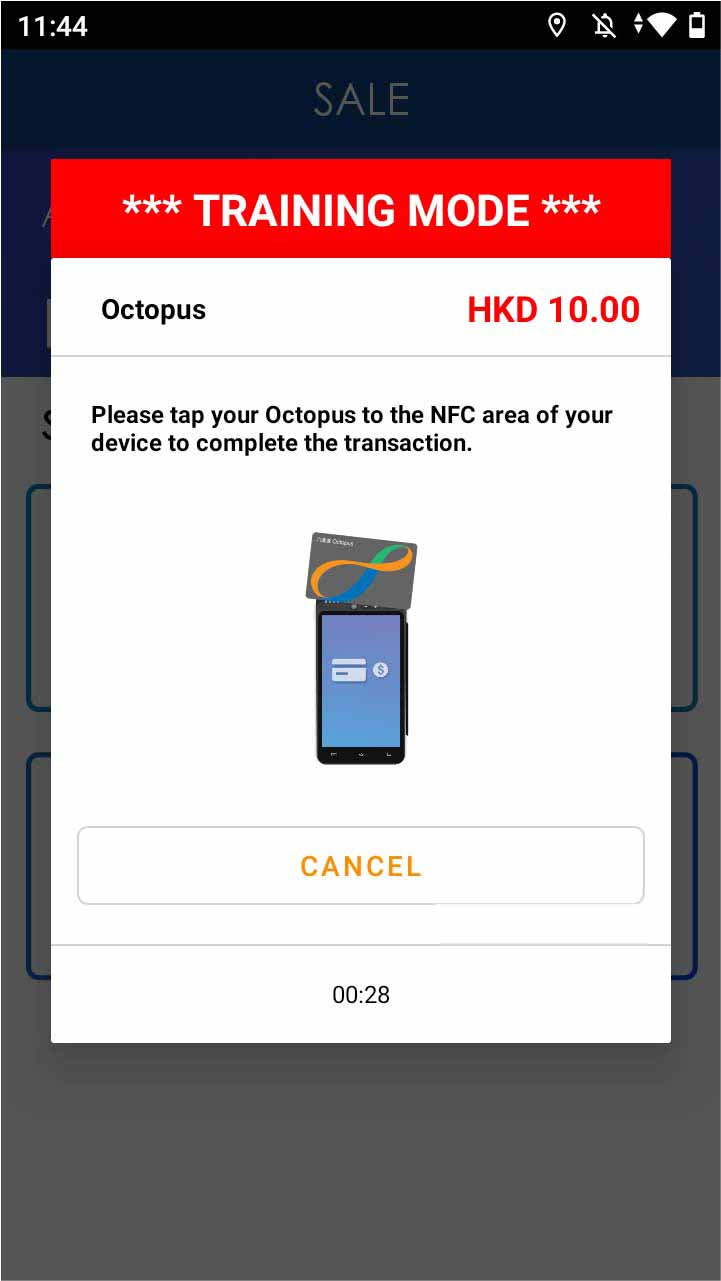

Tap Octopus card on detection area

- Step 5 -

Transaction is completed, and terminal prints out receipt

- Step 1 -

Press [Sale] on menu

- Step 2 -

Enter sale amount, and press [Continue]

- Step 3 -

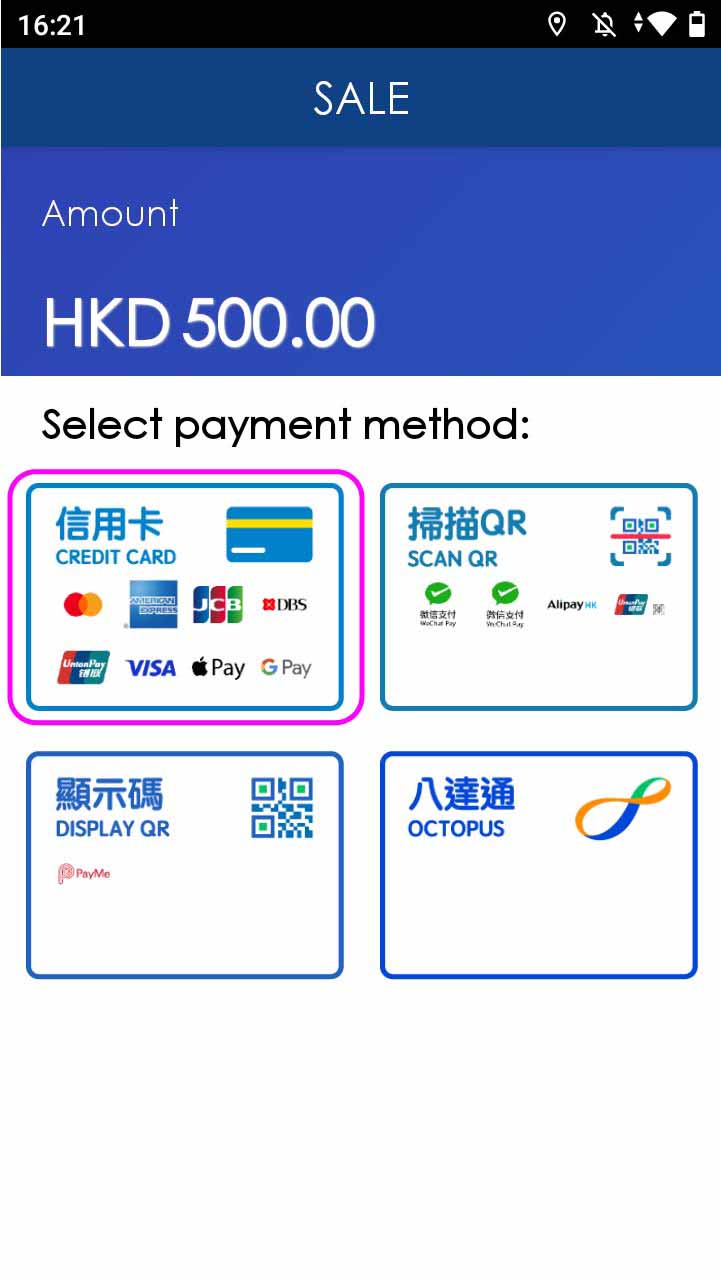

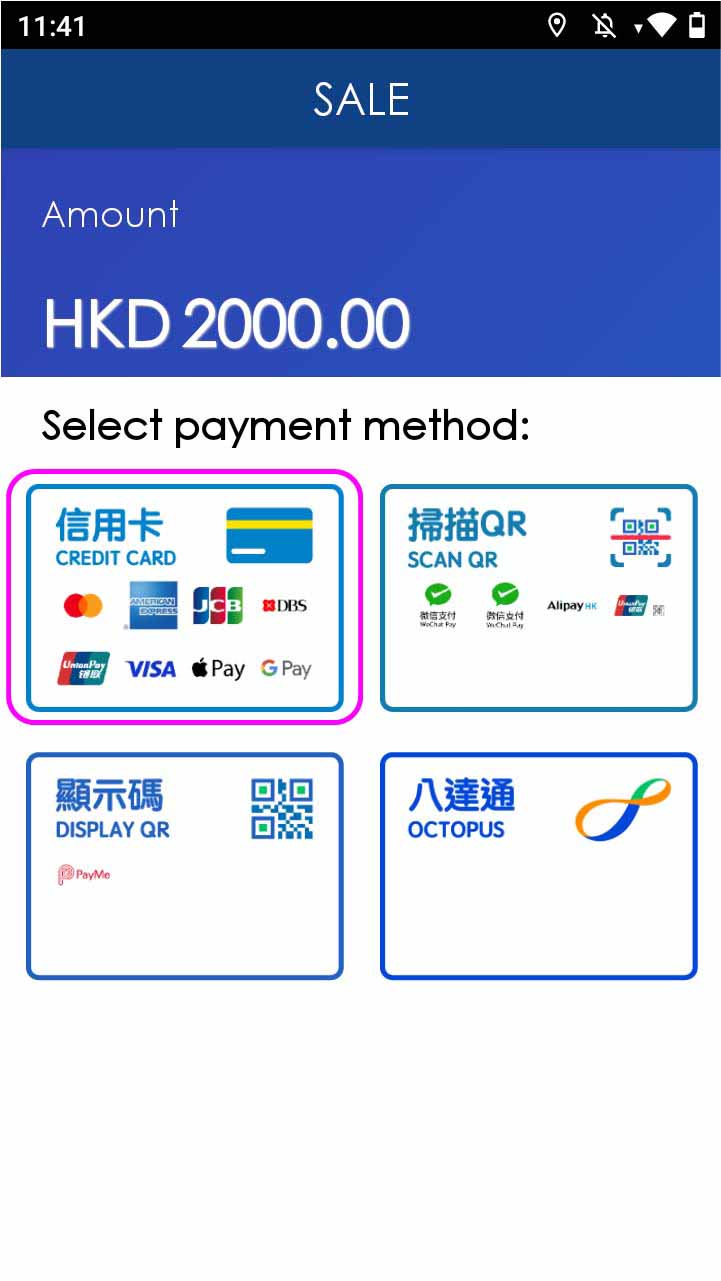

Press button to select credit card payment

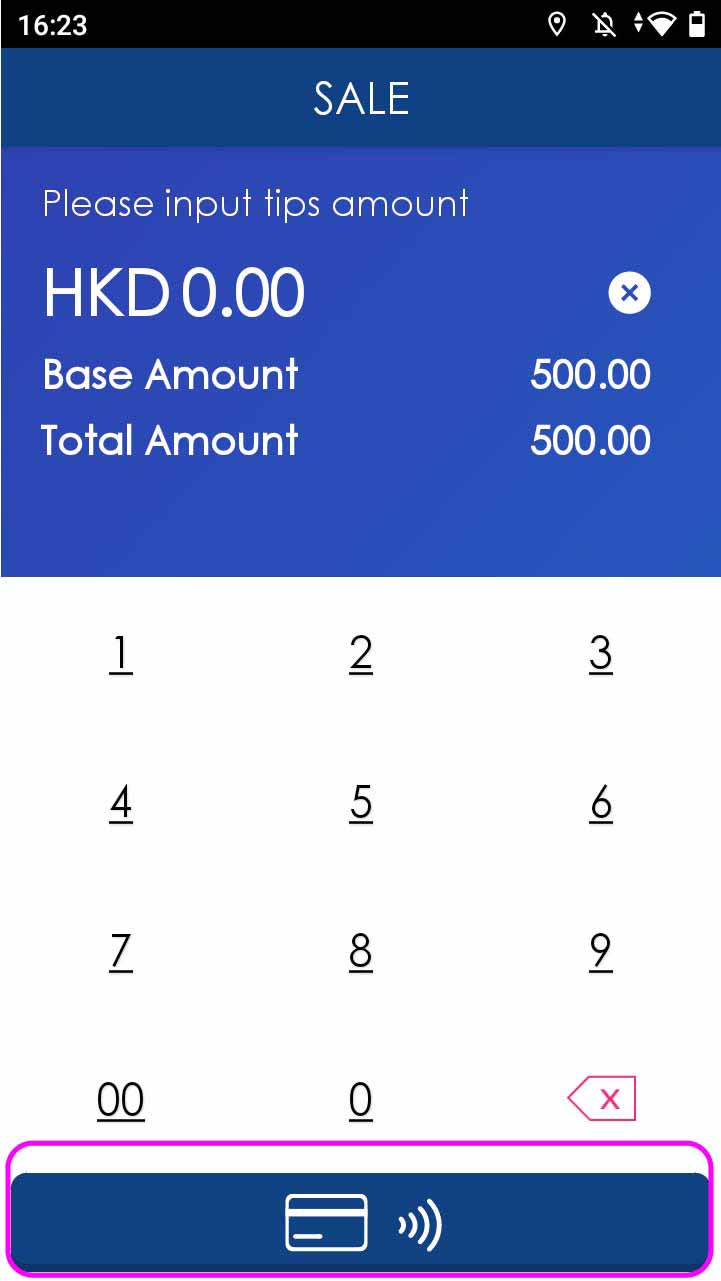

- Step 4 -

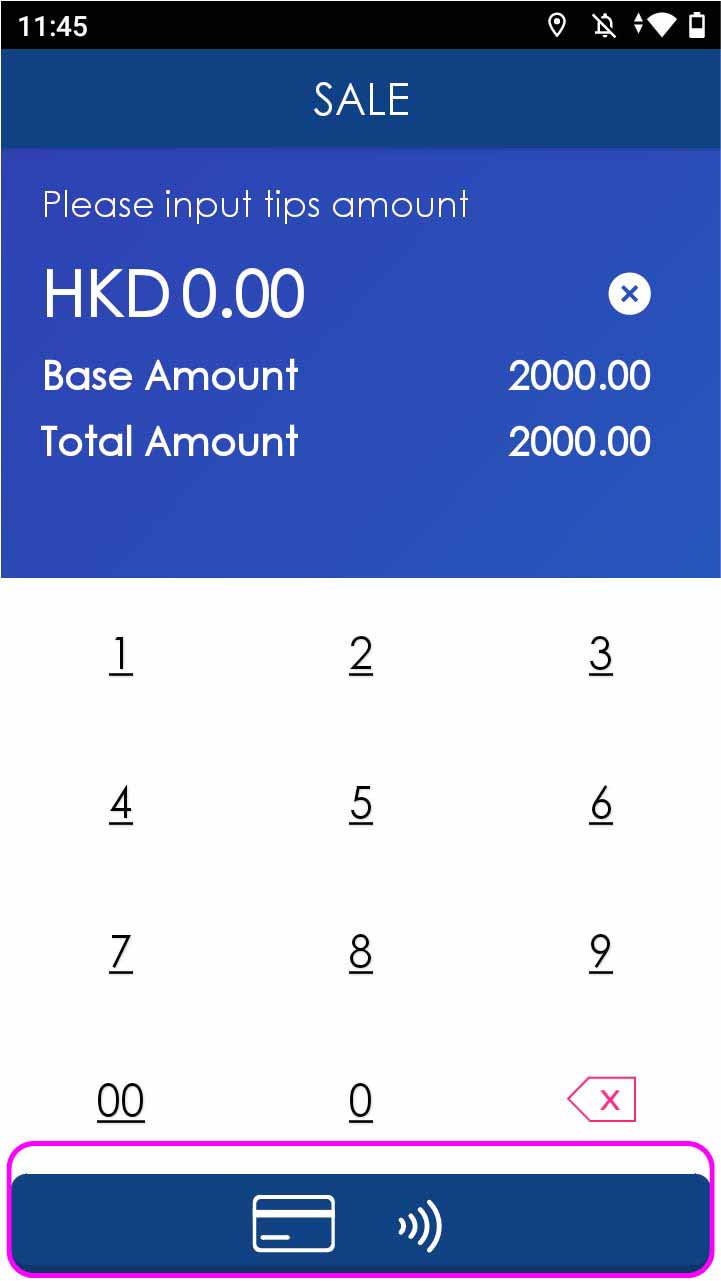

Enter tips amount (If Yes), and select credit card payment

- Step 5 -

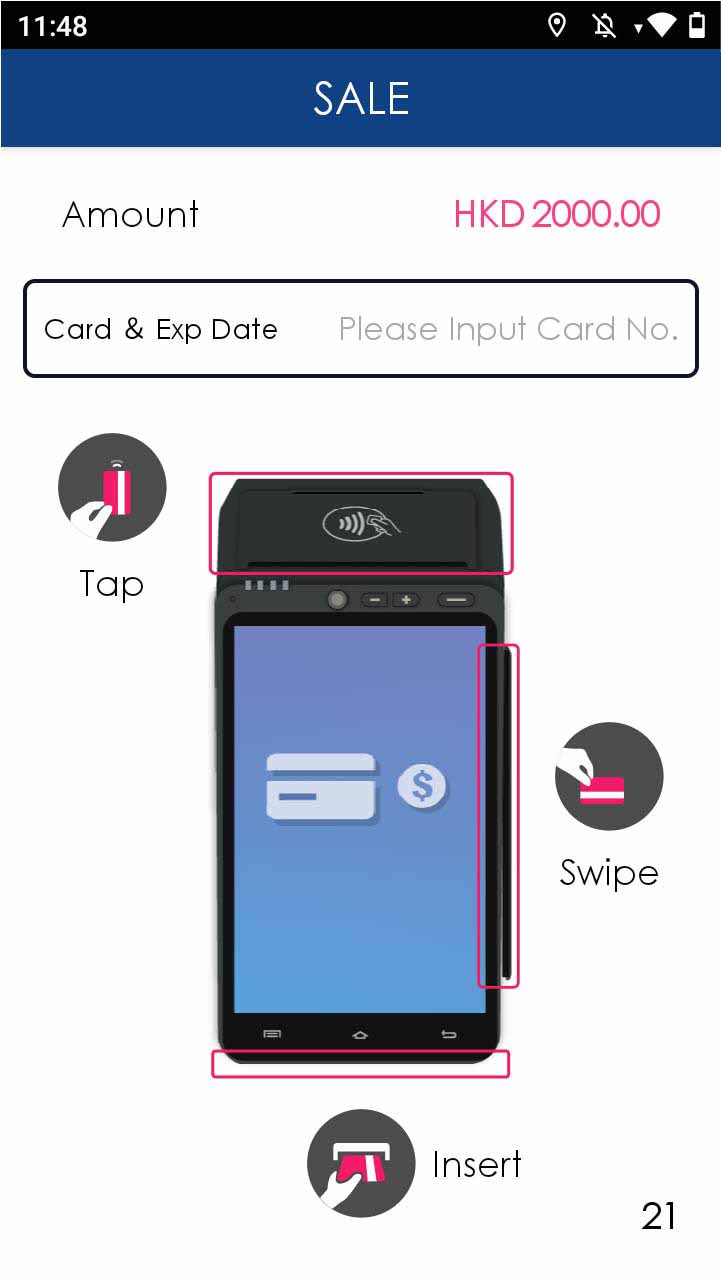

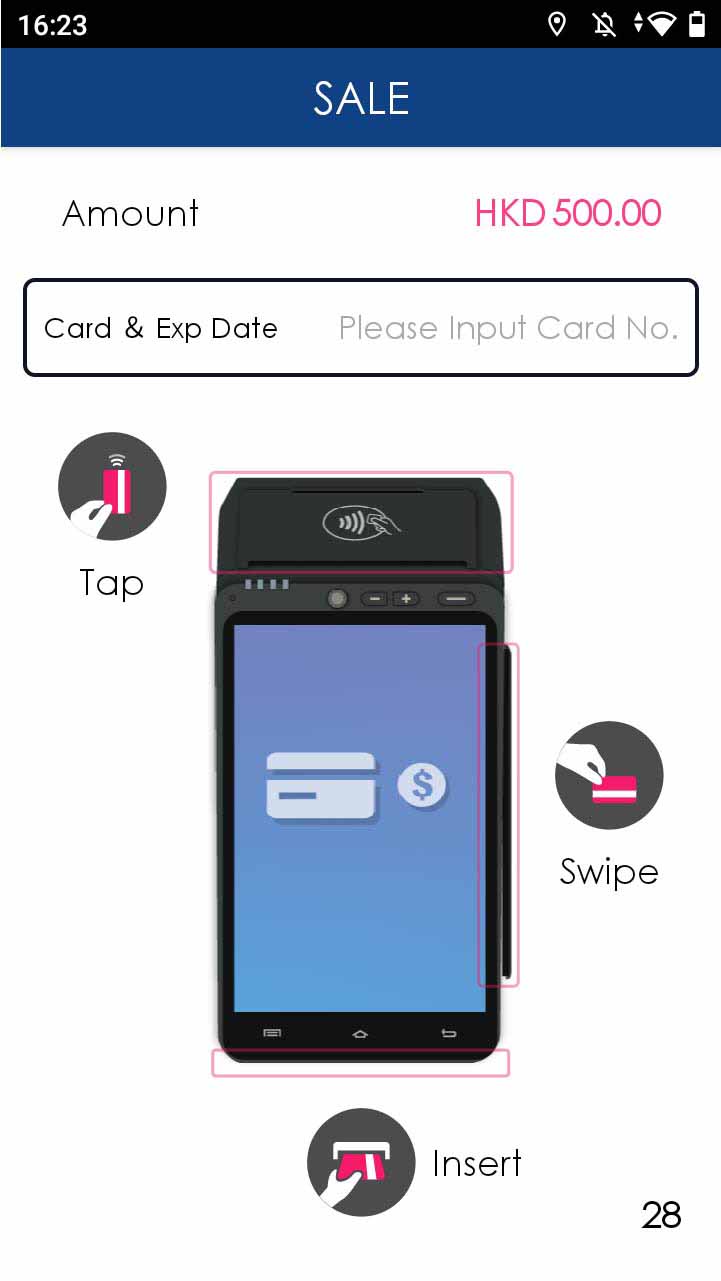

Insert/tap/swipe card OR mobile payment OR manually enter card number & expiry date

- Step 6 -

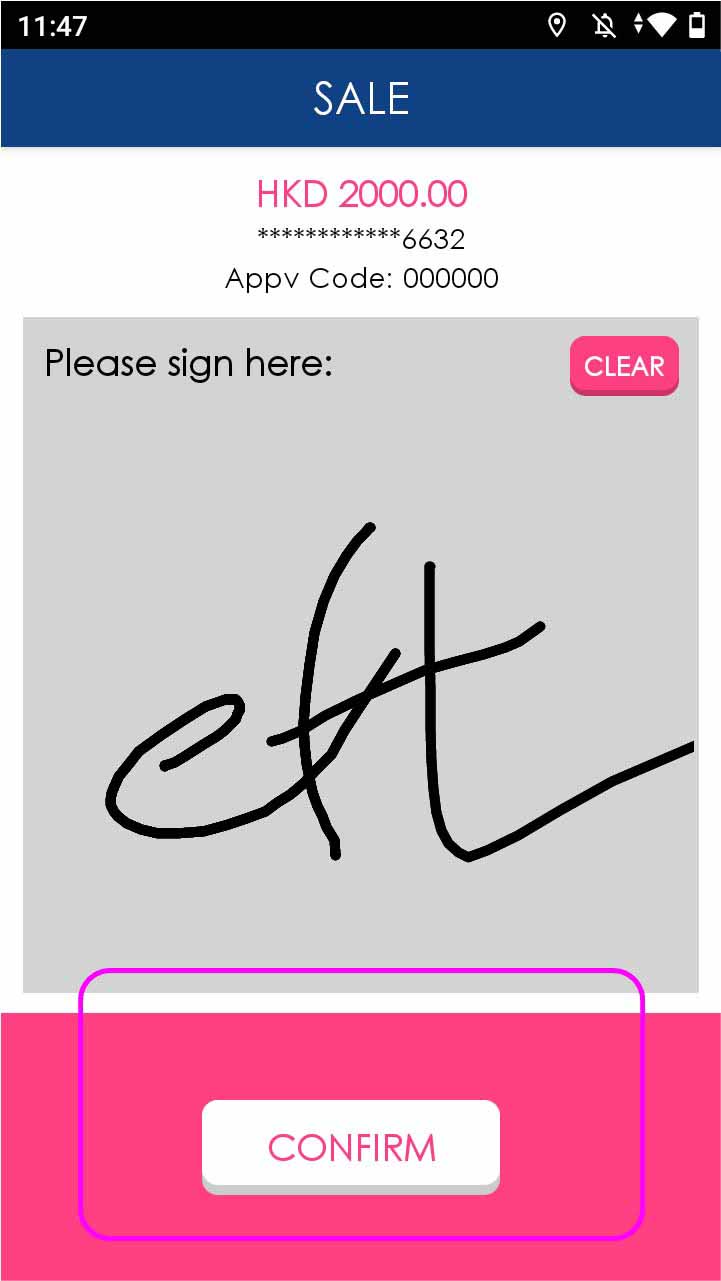

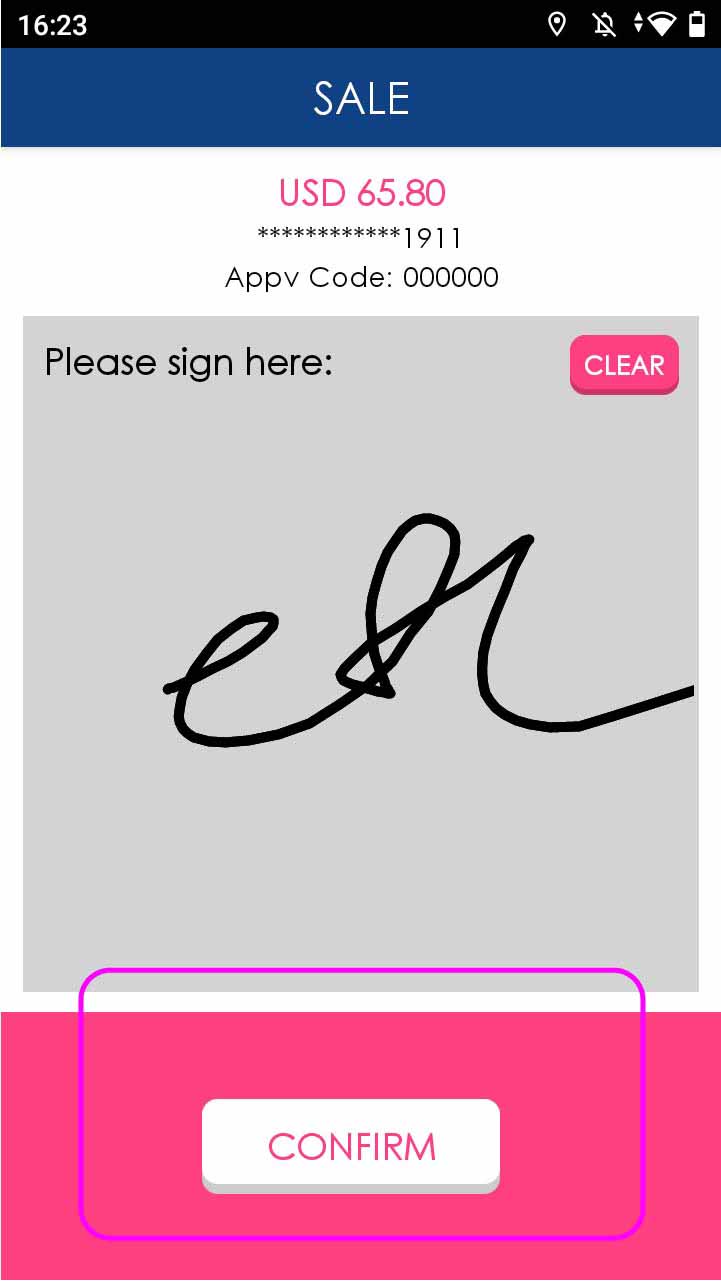

Customer signs, and press [Confirm] (If necessary)

- Step 7 -

Transaction is completed, and terminal prints out receipt

- Step 1 -

Press [Installment] on menu

- Step 2 -

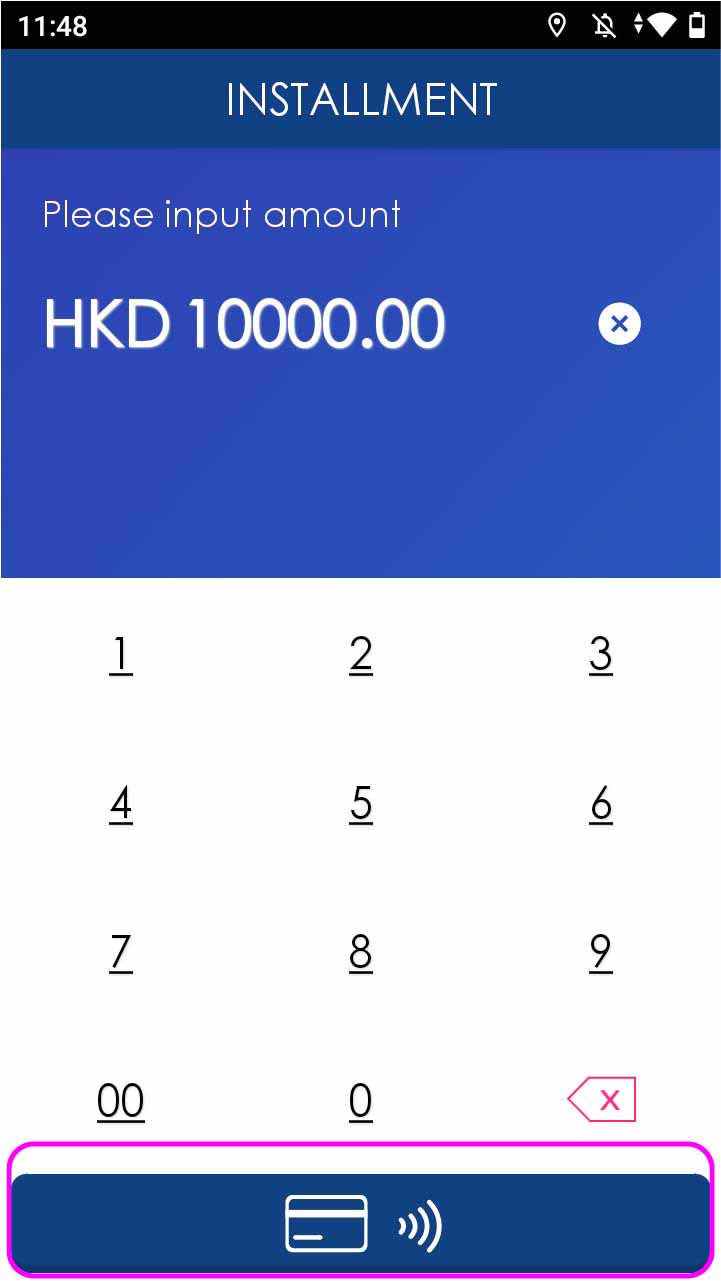

Enter sale amount, , and select credit card payment

- Step 3 -

Insert/tap/swipe card OR mobile payment OR manually enter card number & expiry date

- Step 4 -

Select Installment plan and enter the password (If necessary)

- Step 5 -

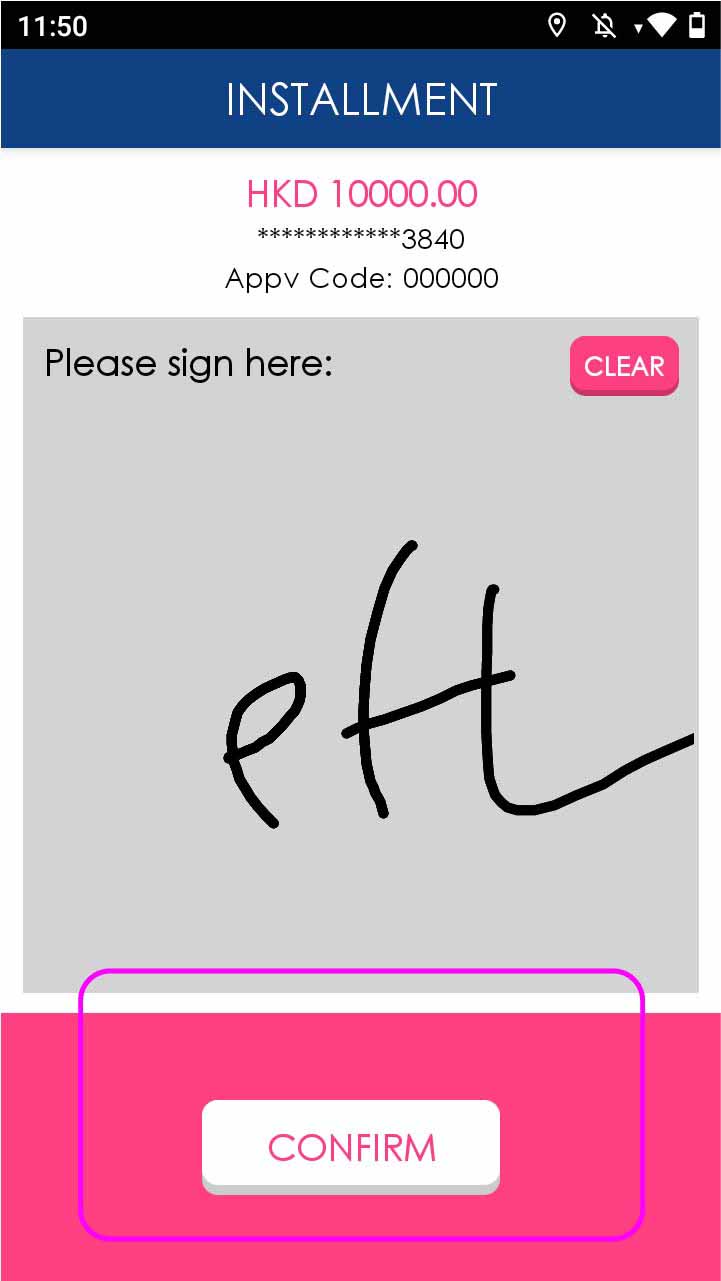

Customer signs, and press [Confirm] (If necessary)

- Step 6 -

Transaction is completed, and terminal prints out receipt

- Step 1 -

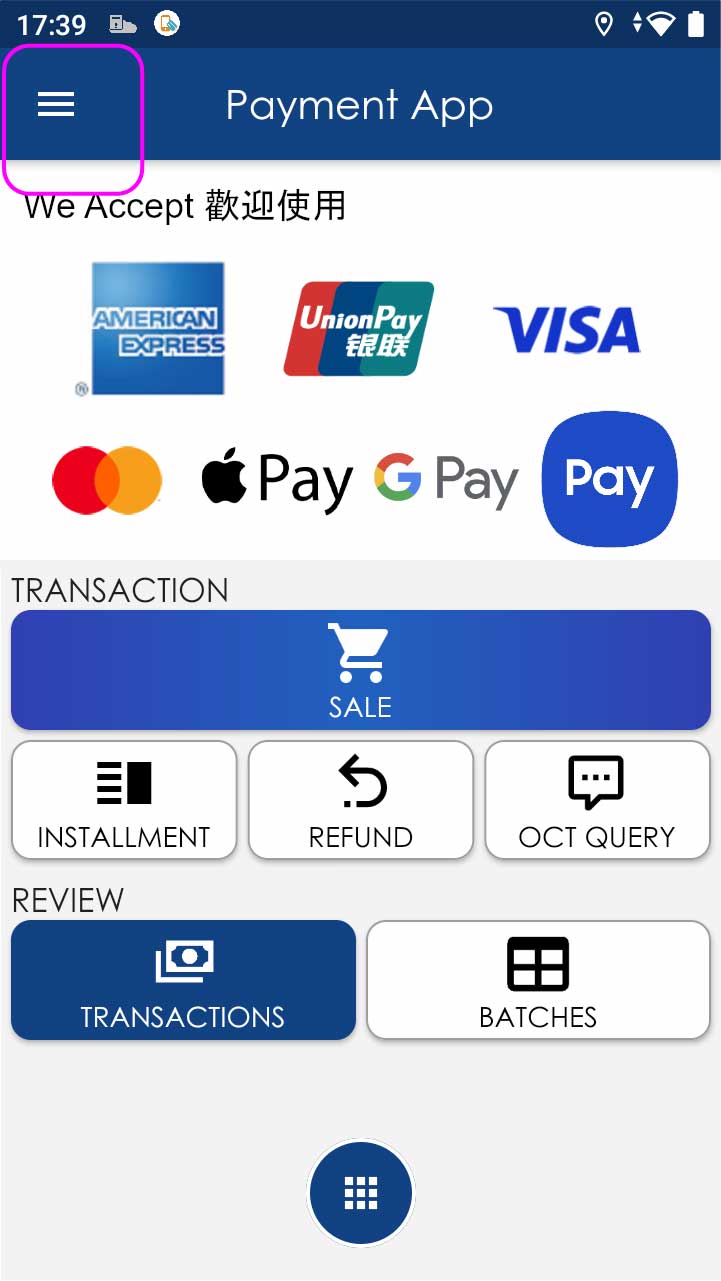

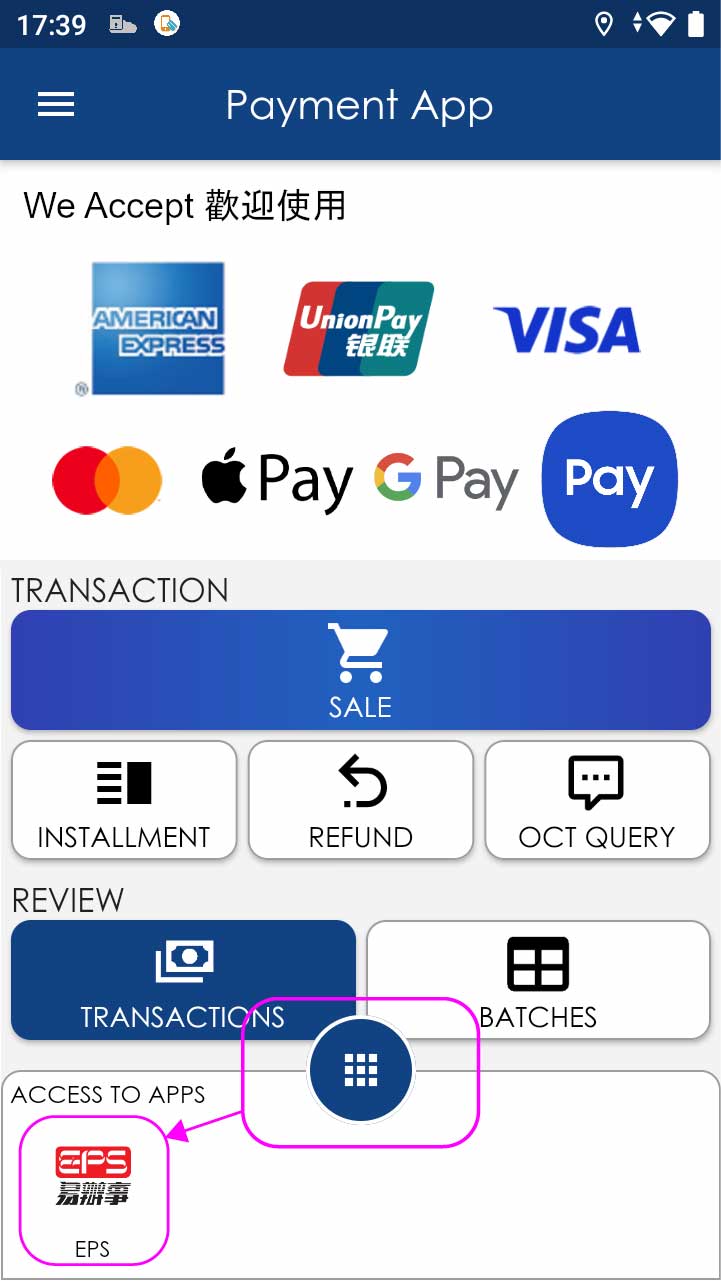

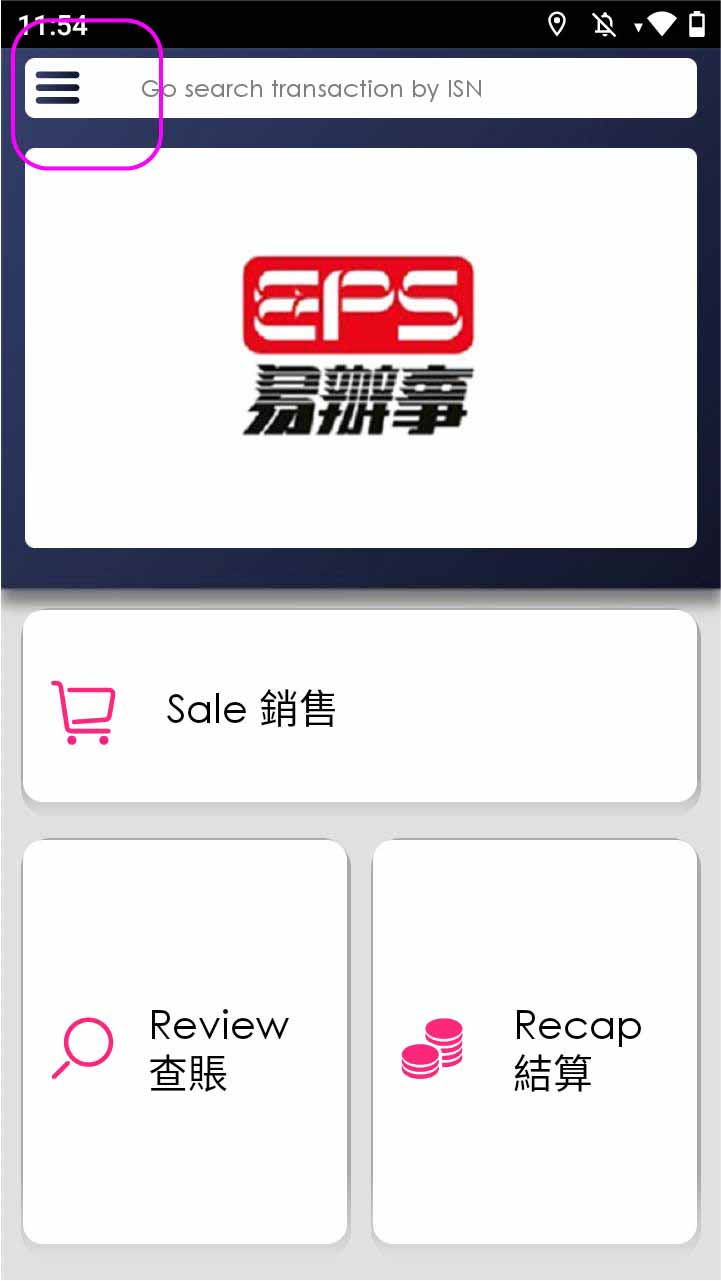

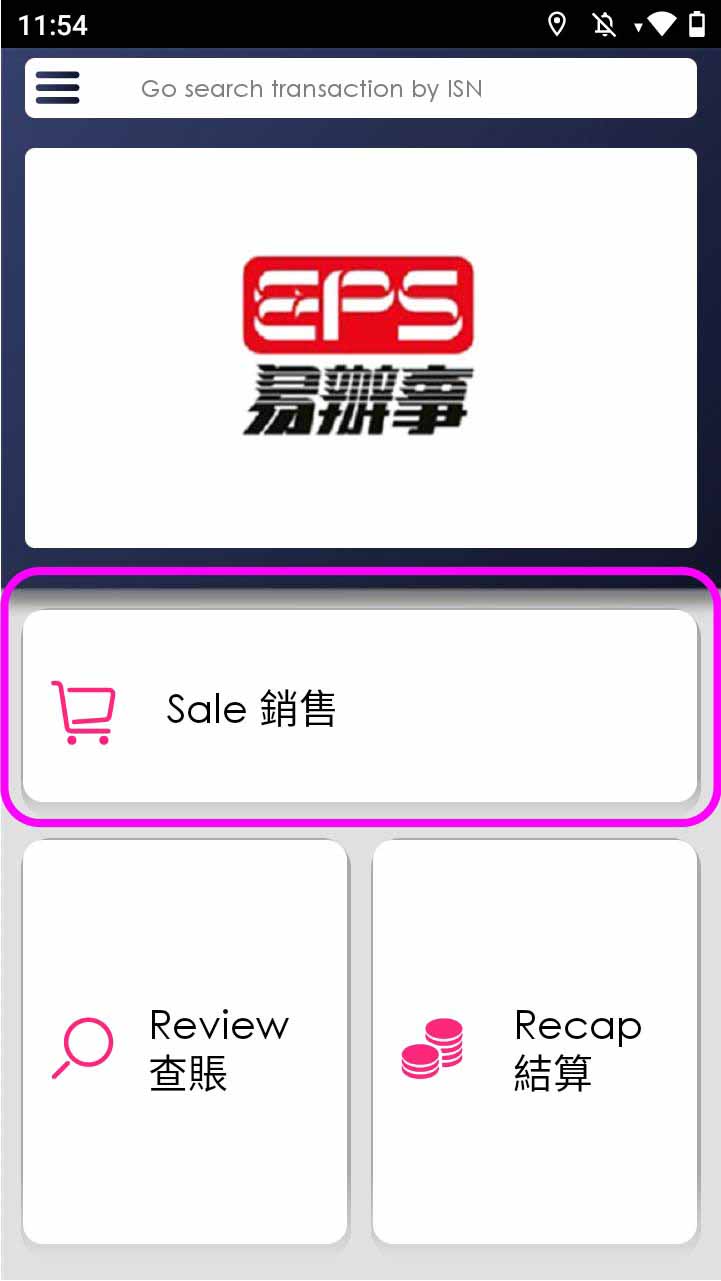

Press [icon] on menu，choose EPS

- Step 2 -

Press [Sale] on menu

- Step 3 -

Please insert card

- Step 4 -

Enter sale amount, and press [ENTER]

- Step 5 -

Press [YES] to confirm amount

- Step 6 -

Enter the card password, and press [Enter]

- Step 7 -

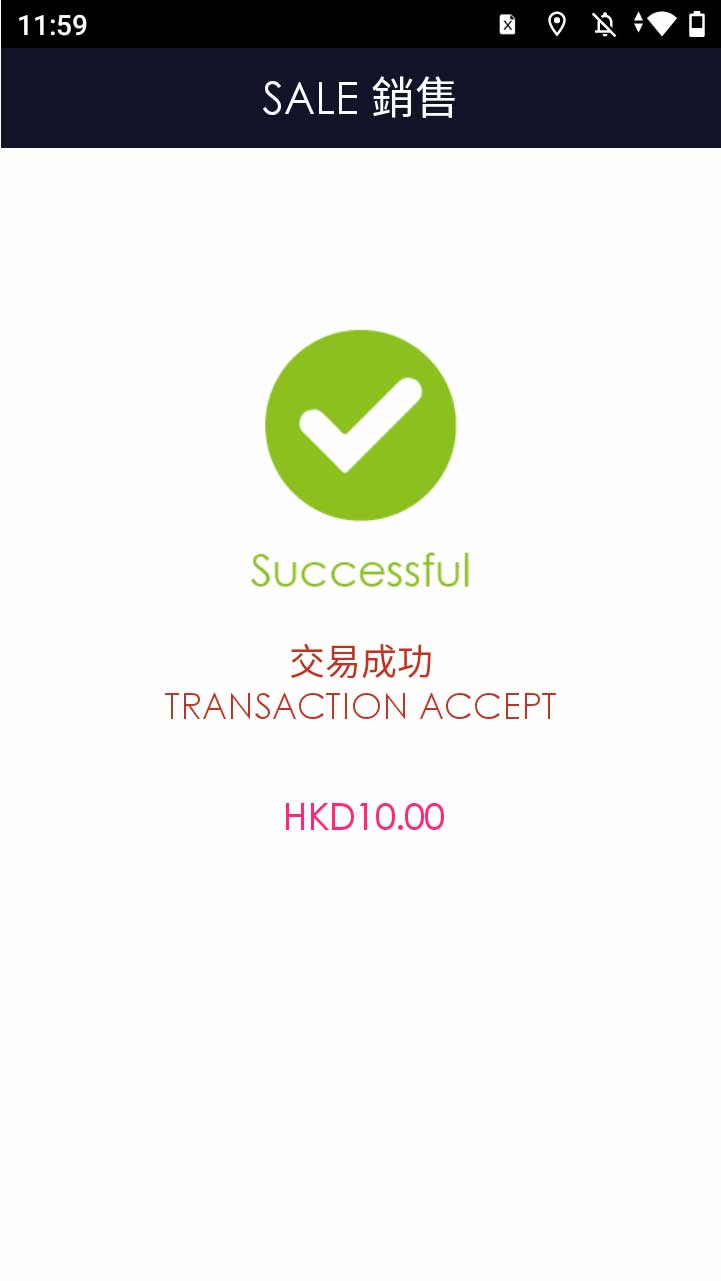

Transcation is completed, and terminal prints out receipt

- Step 1 -

Press [Sale] on menu

- Step 2 -

Enter sale amount, and press [Continue]

- Step 3 -

Select credit card payment

- Step 4 -

Enter total amount with tips (if any), and select credit card payment

- Step 5 -

Insert/tap/swipe card OR mobile payment OR manually enter card number & expiry date

- Step 6 -

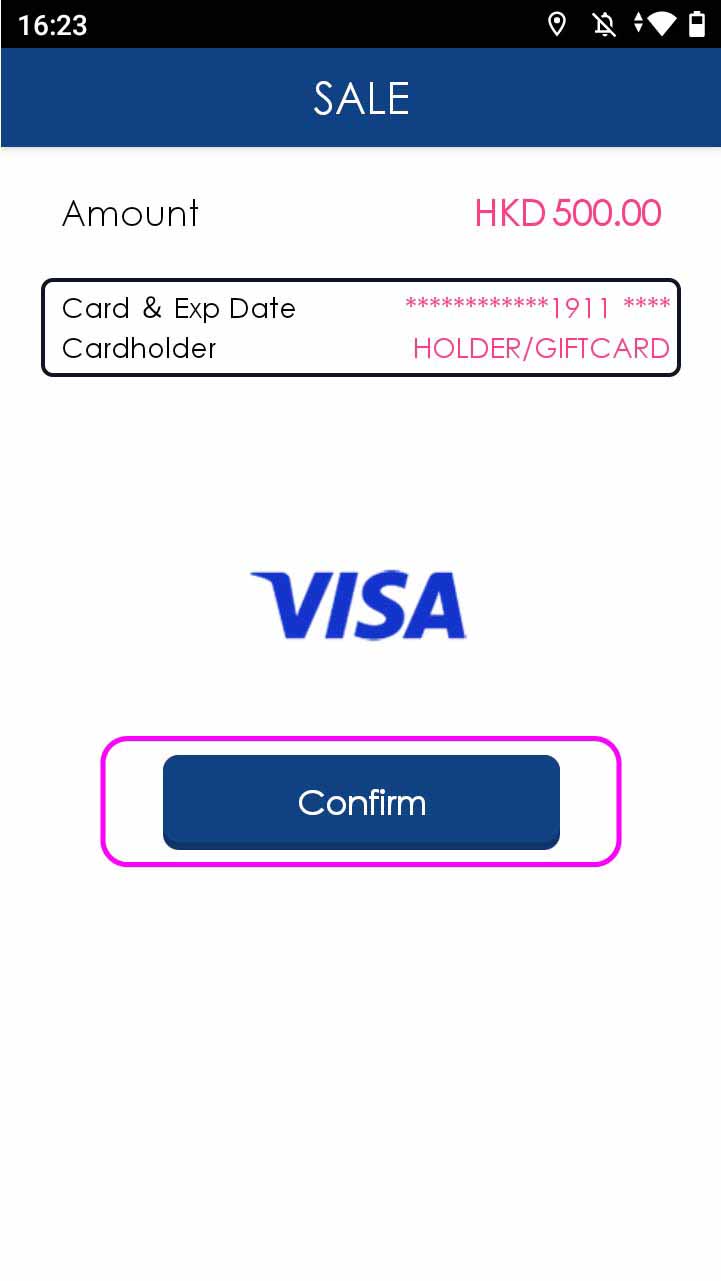

Press [Confirm]

- Step 7 -

Cardholder chooses transaction currency

- Step 8 -

Customer signs, and press [Confirm] (If necessary)

- Step 9 -

Transaction is completed, and terminal prints out receipt

Void

- Step 1 -

<Not applicable to Octopus>

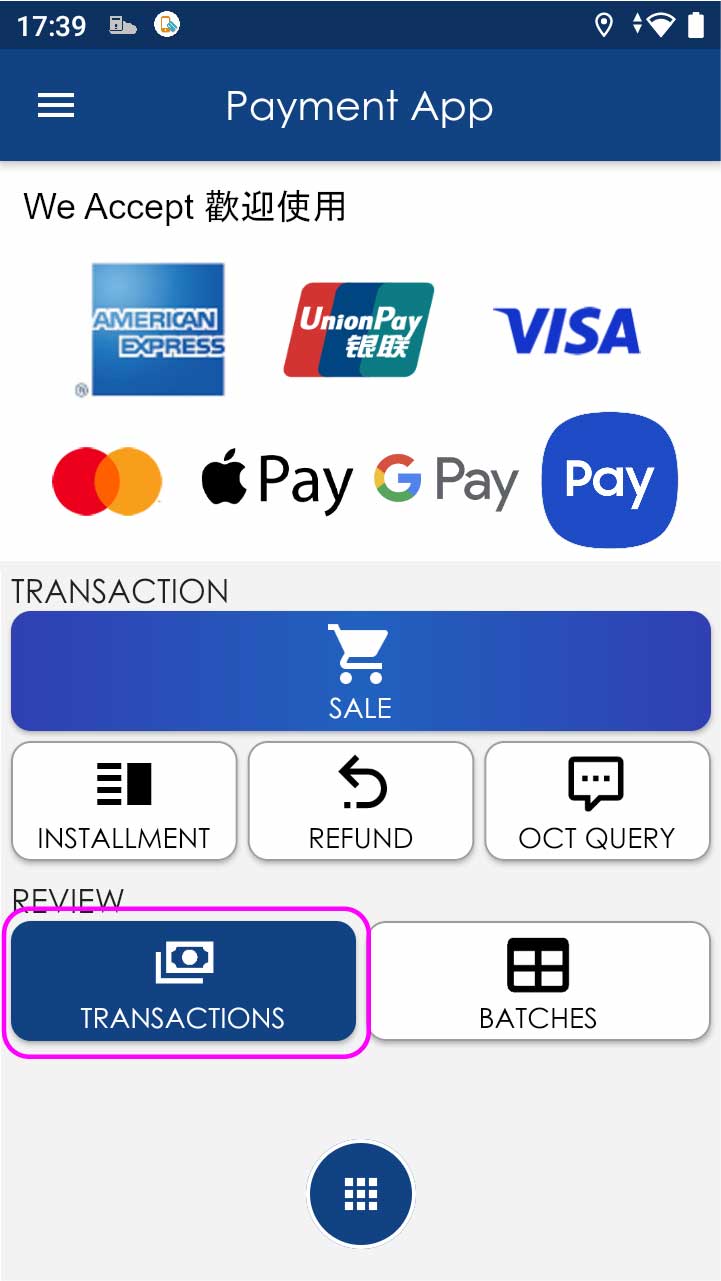

Press [Transactions] on menu

- Step 2 -

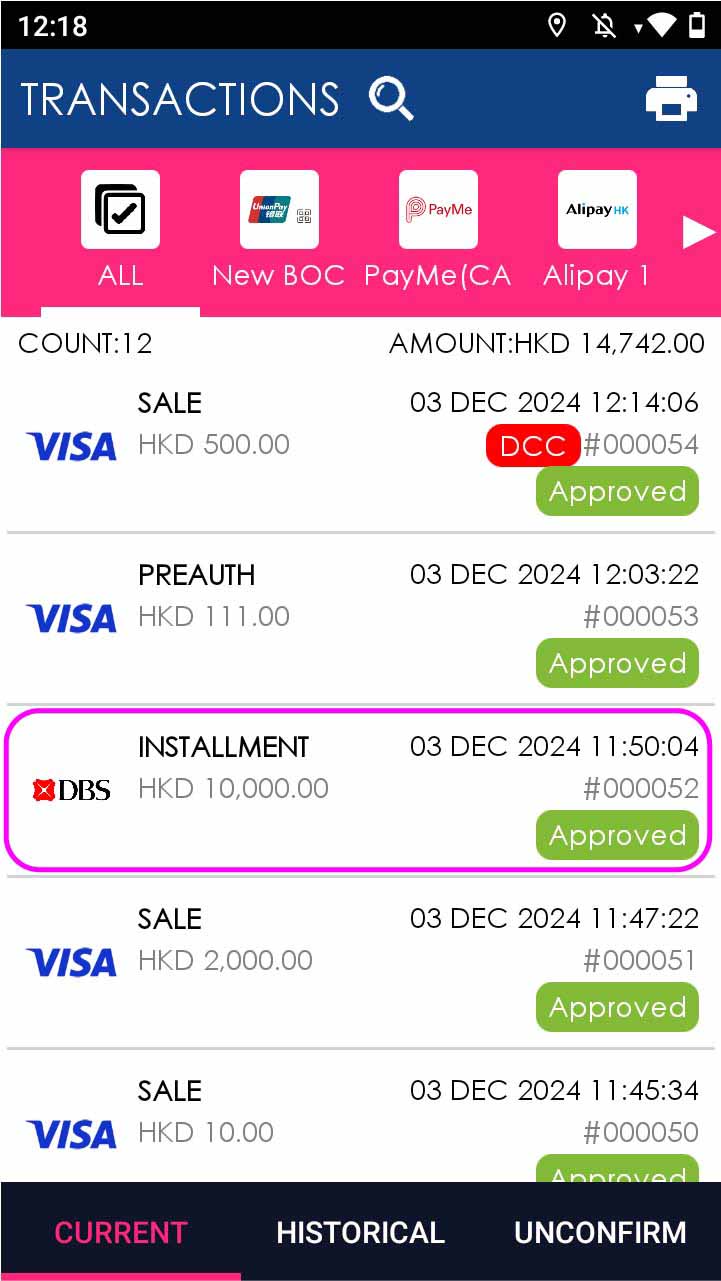

Select transaction record

- Step 3 -

Select [Menu], and press [Void]

- Step 4 -

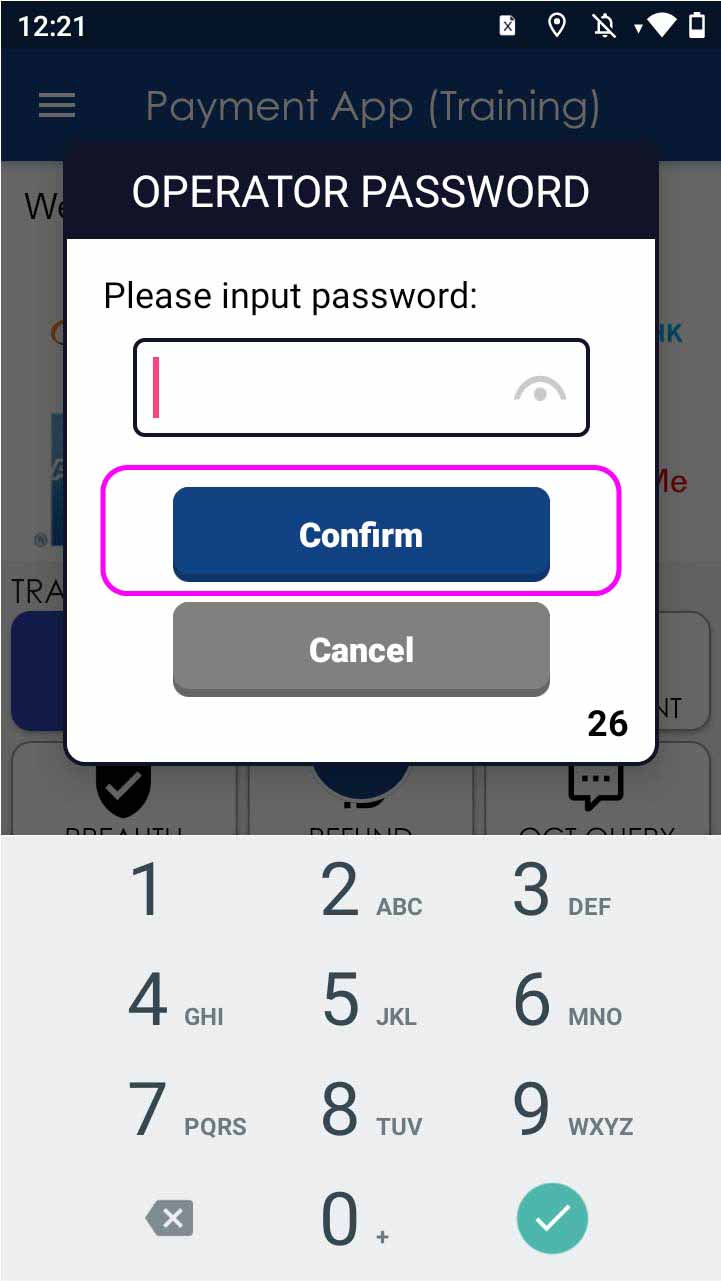

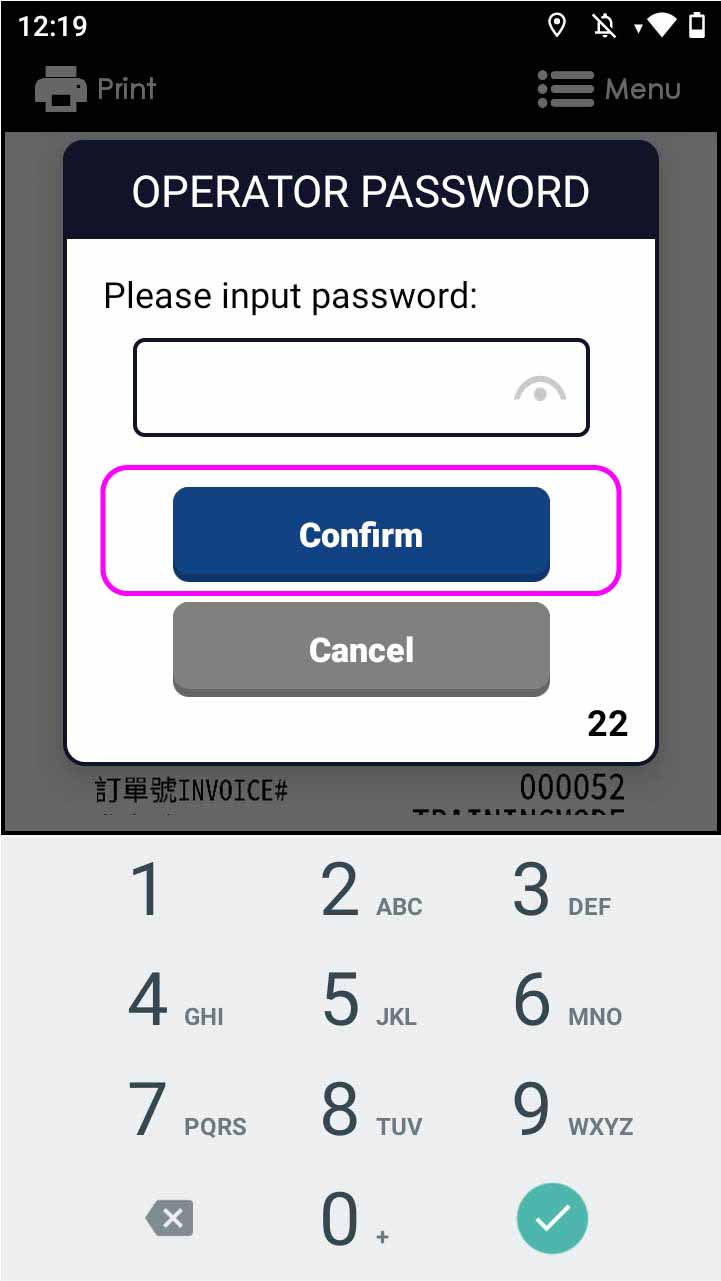

Enter operator password, and press [Confirm]

- Step 5 -

Transaction completed, terminal prints out receipt

QR Code Payment -
Scan QR code

QR Code Payment -
Manual Entry

Credit Card Payment

- Step 1 -

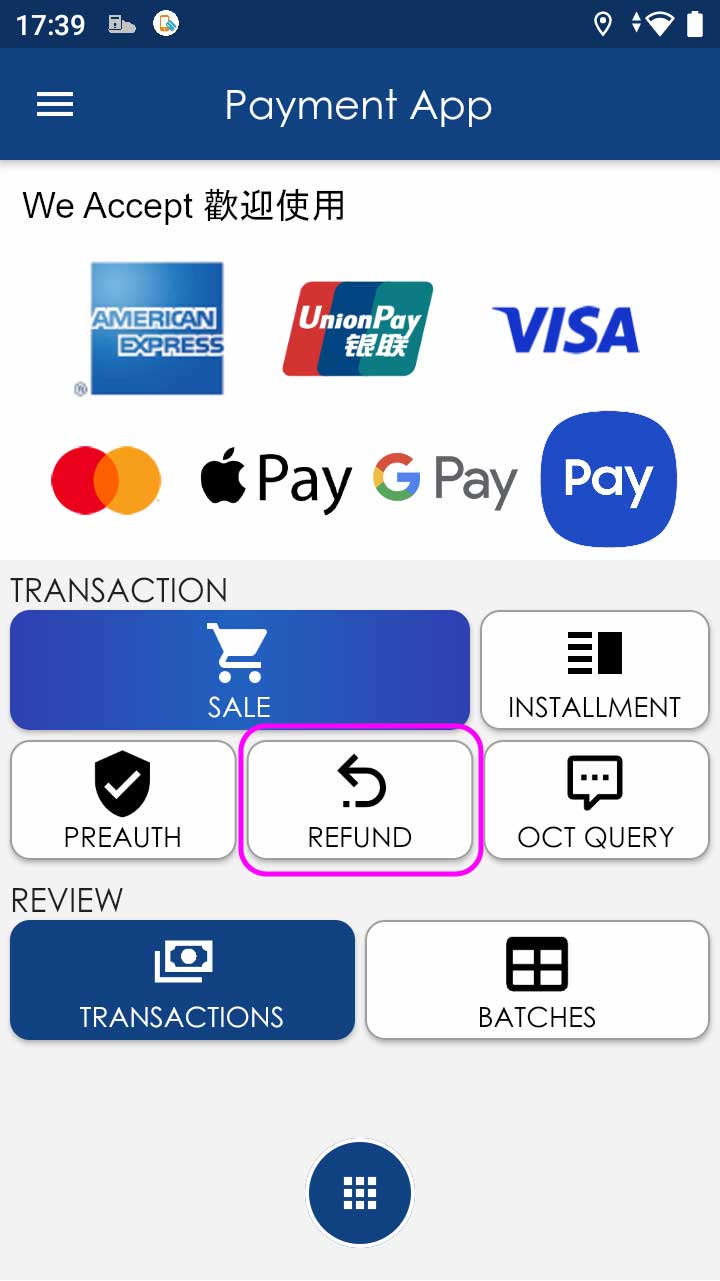

Press [Refund] on menu

- Step 2 -

Enter operator password, and press [Confirm]

- Step 3 -

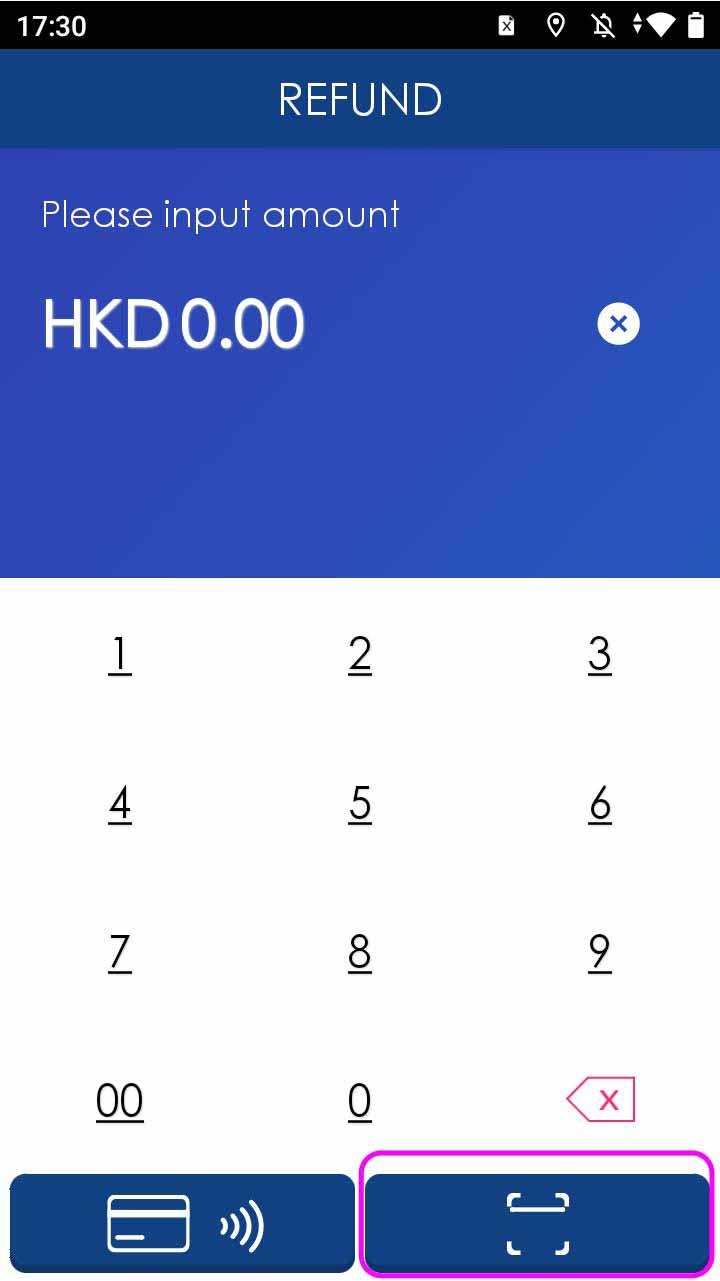

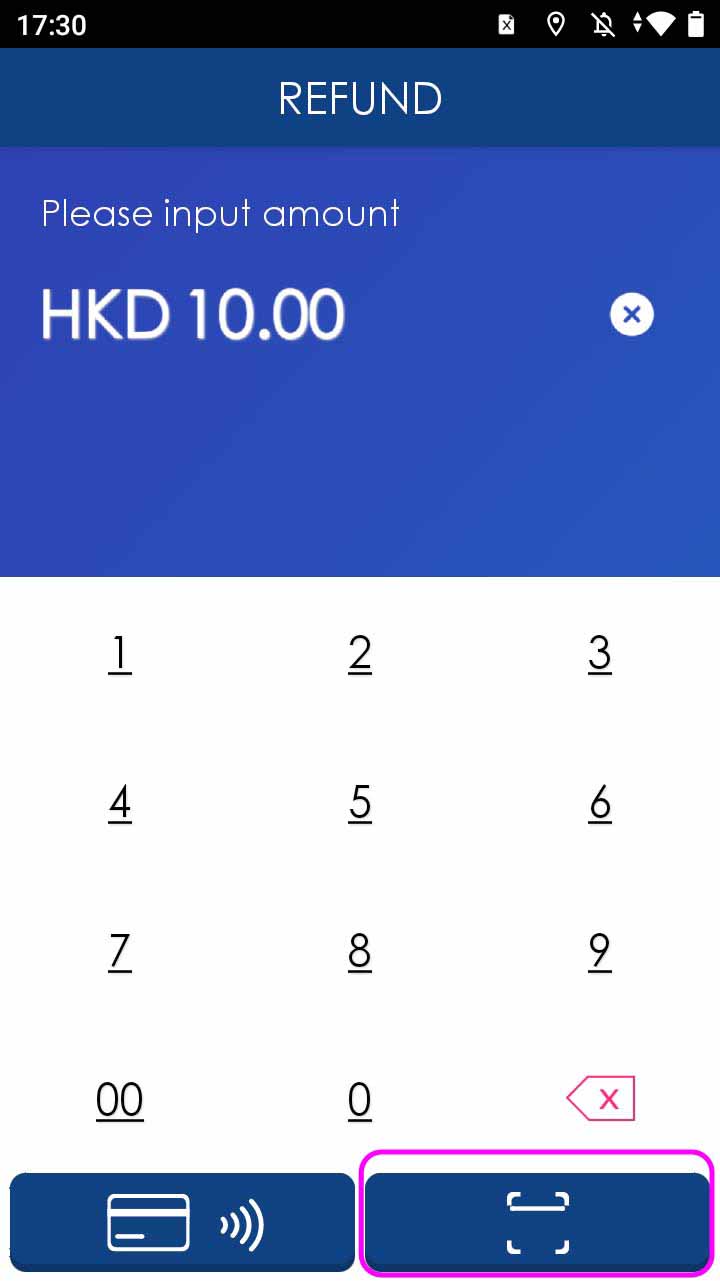

Enter amount, and press button to select QR code payment

- Step 4 -

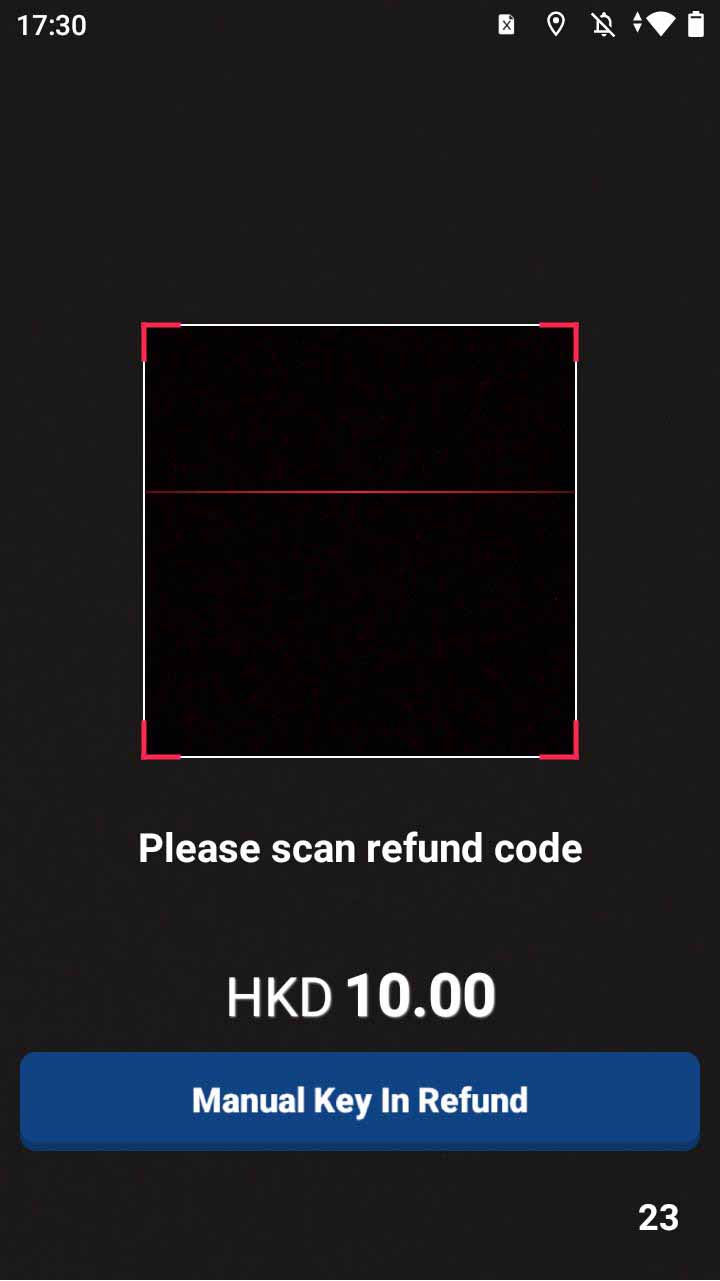

Scan QR code of receipt

- Step 5 -

Select refund payment

- Step 6 -

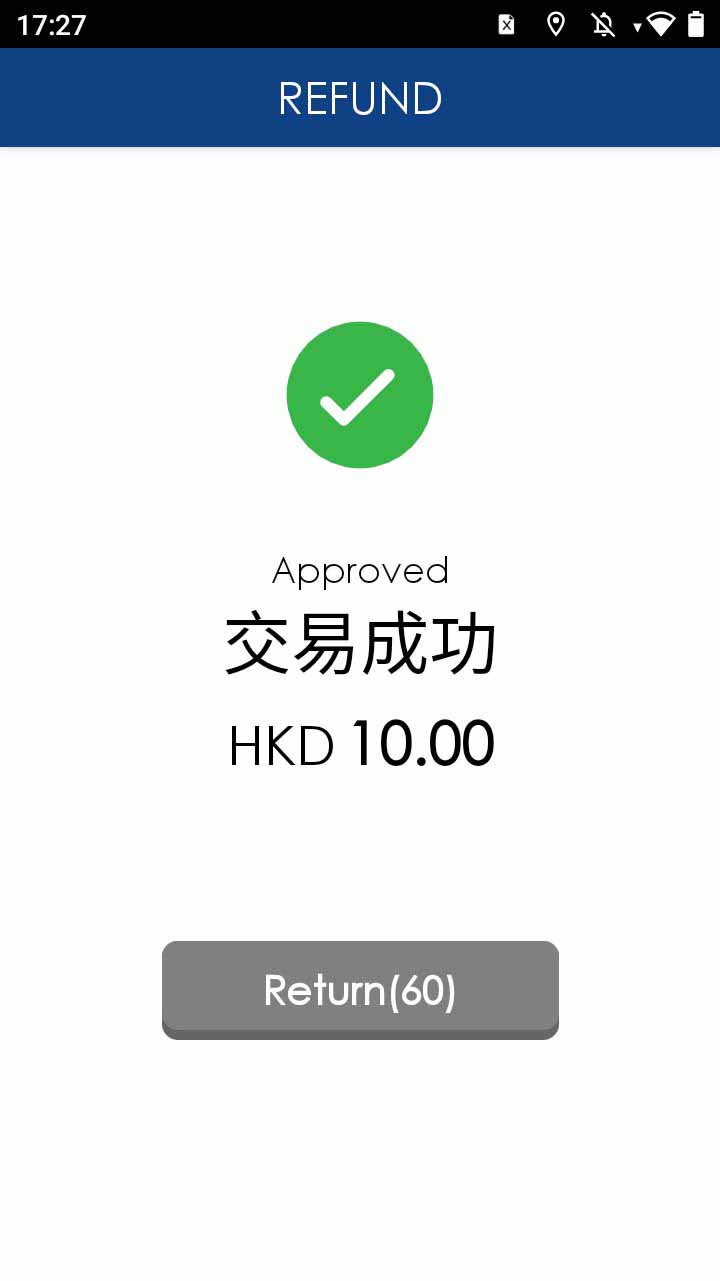

Transaction completed, terminal prints out receipt

- Step 1 -

Press [Refund] on menu

- Step 2 -

Enter operator password, and press [Confirm]

- Step 3 -

Enter amount, and press button to select QR code payment

- Step 4 -

Select [Manual Key In Refund]

- Step 5 -

Select refund payment

- Step 6 -

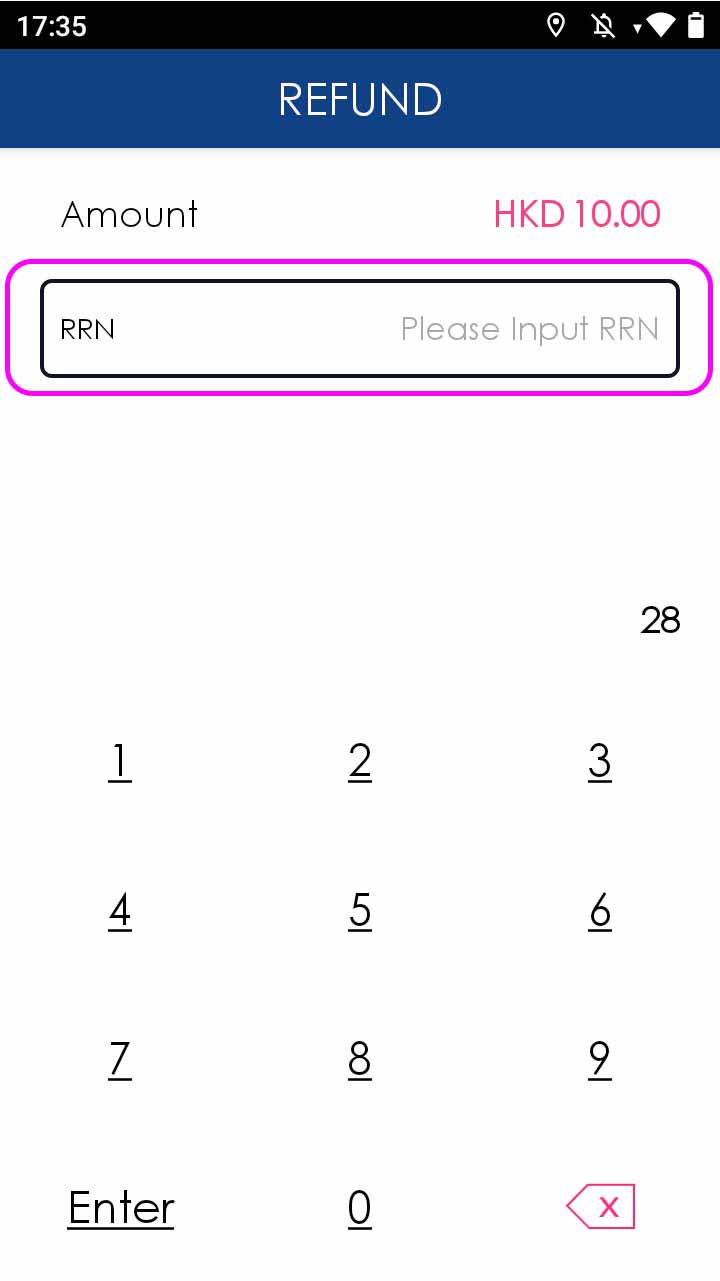

Enter 12 digits reference number from sales receipt or transaction details, and press [Confirm]

- Step 7 -

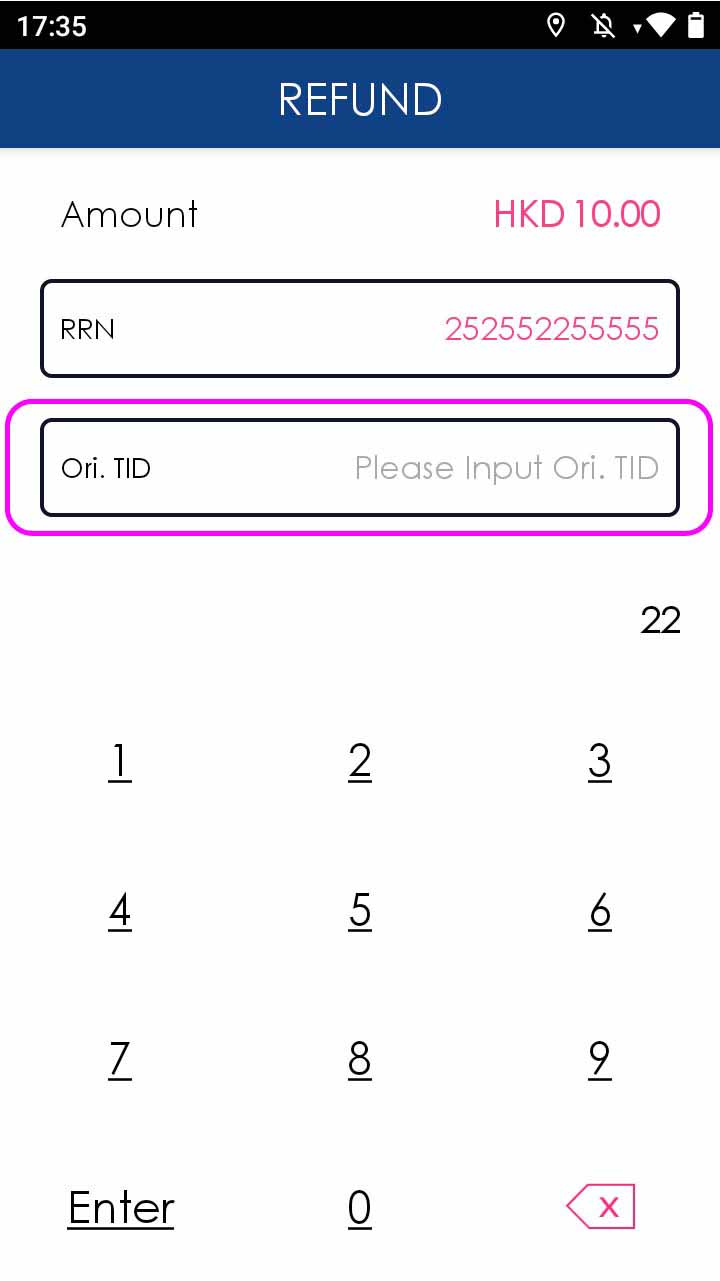

Enter 8 digit original Terminal ID, and press [Confirm]

- Step 8 -

Transaction is completed, and terminal prints out receipt

- Step 1 -

Press [Refund] on menu

- Step 2 -

Enter operator password, and press [Confirm]

- Step 3 -

Enter amount, and press button to select credit card payment

- Step 4 -

Insert/tap/swipe card OR mobile payment OR manually enter the card number & expiry date

- Step 5 -

Cardholder chooses transaction currency (If there is a foreign currency account)

- Step 6 -

Transaction is completed, and terminal prints out receipt

Unconfirmed Transaction Query

- Step 1 -

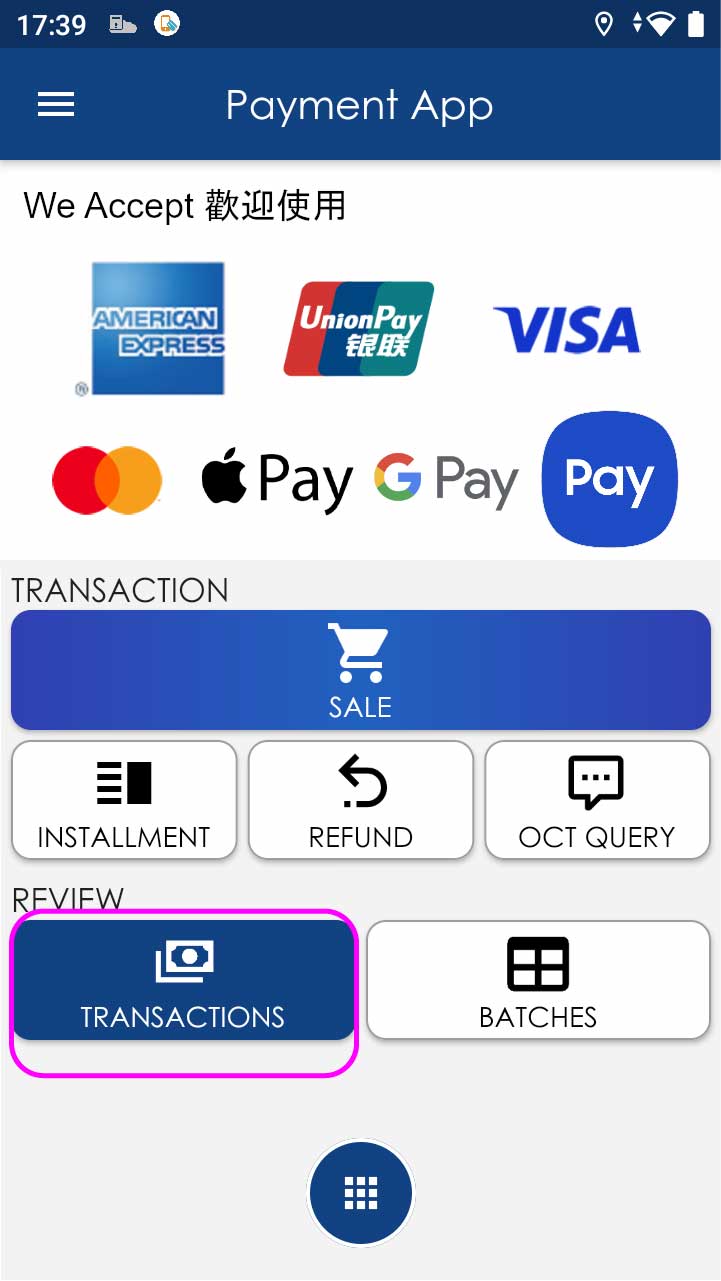

Press [Transactions] on menu

- Step 2 -

Select [Unconfirm] page

- Step 3 -

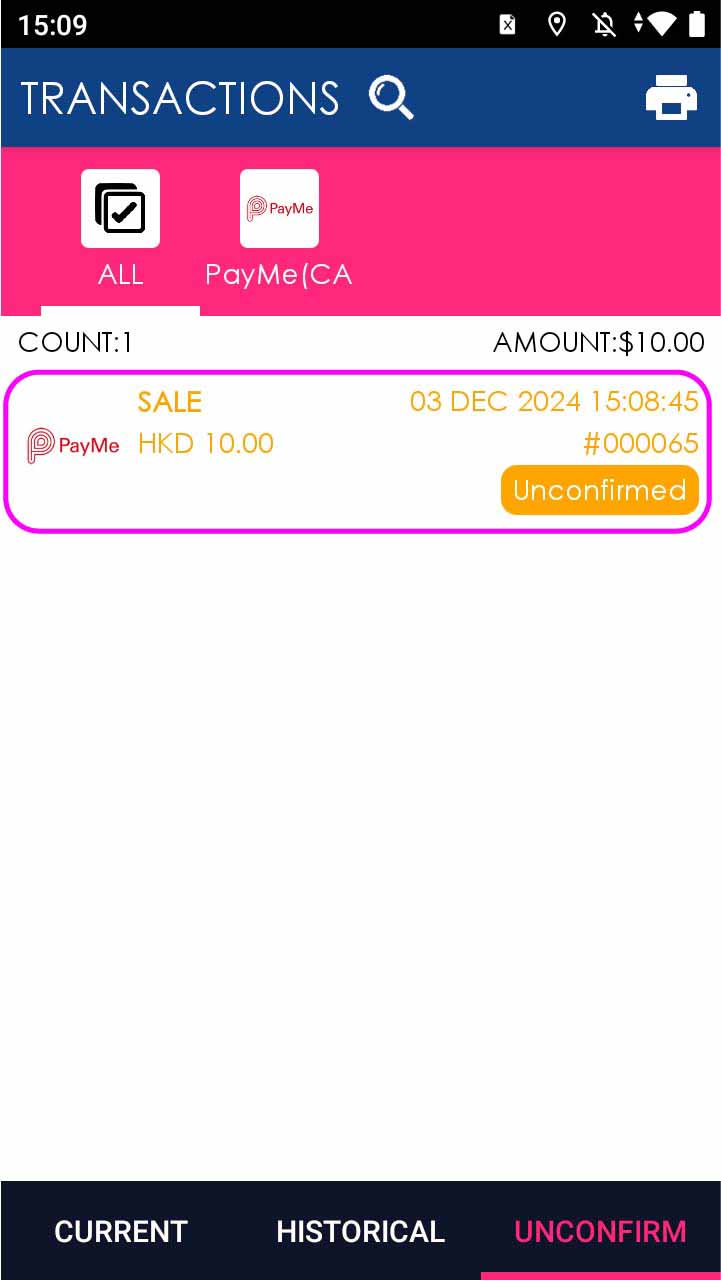

Select transaction record

- Step 4 -

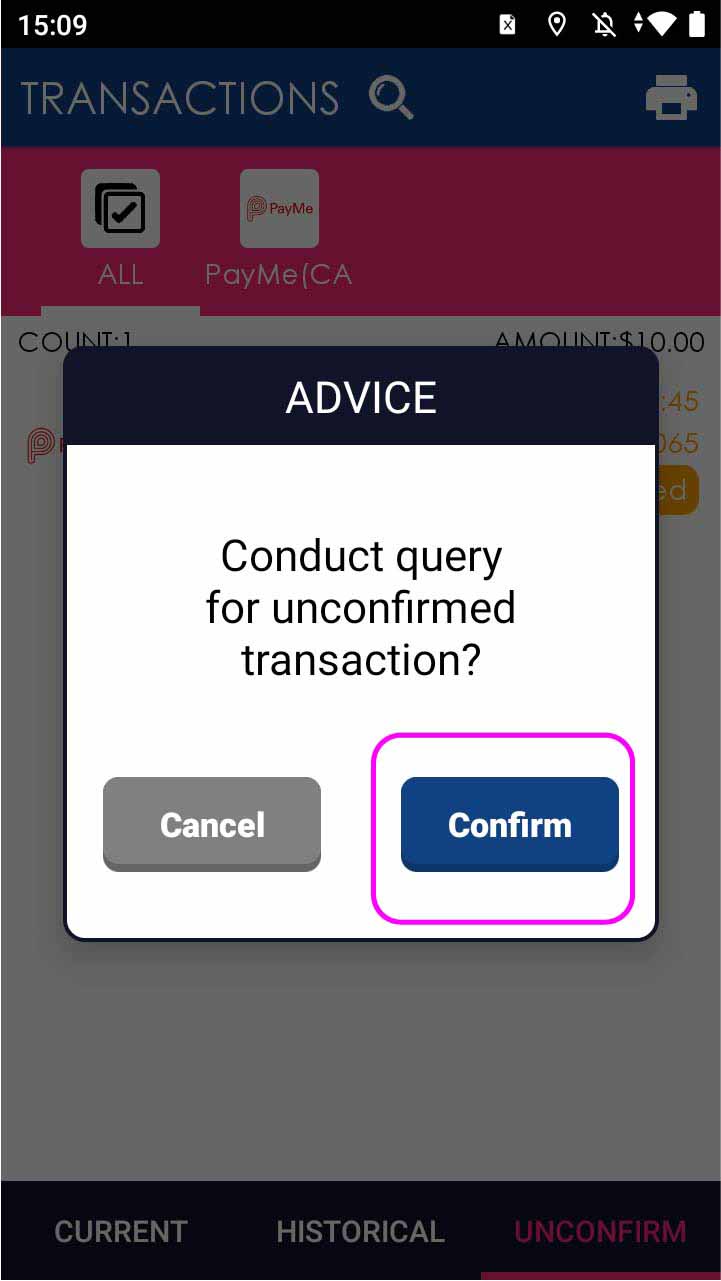

Press [Confirm] in the dialogue box

- Step 5 -

Transaction is completed, and terminal prints out receipt

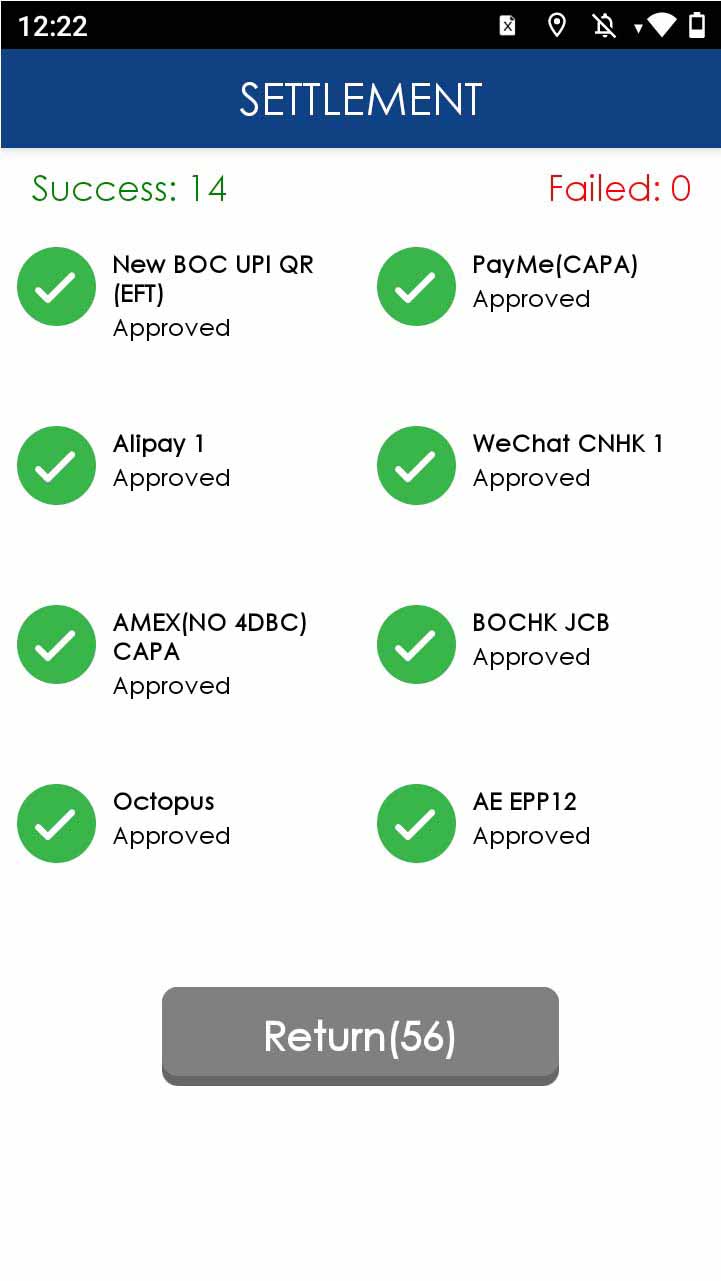

Settlement ALL

Settlement One Host

EPS Settlement

- Step 1 -

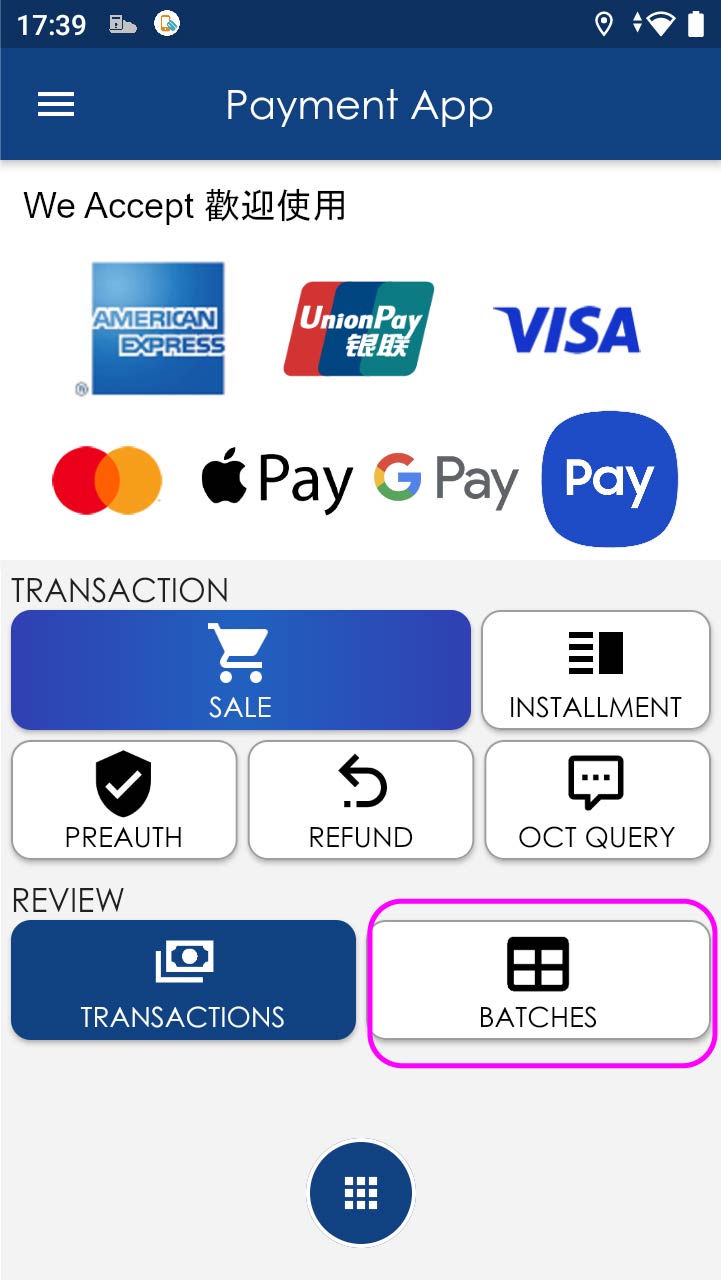

Press [Batches] on menu

- Step 2 -

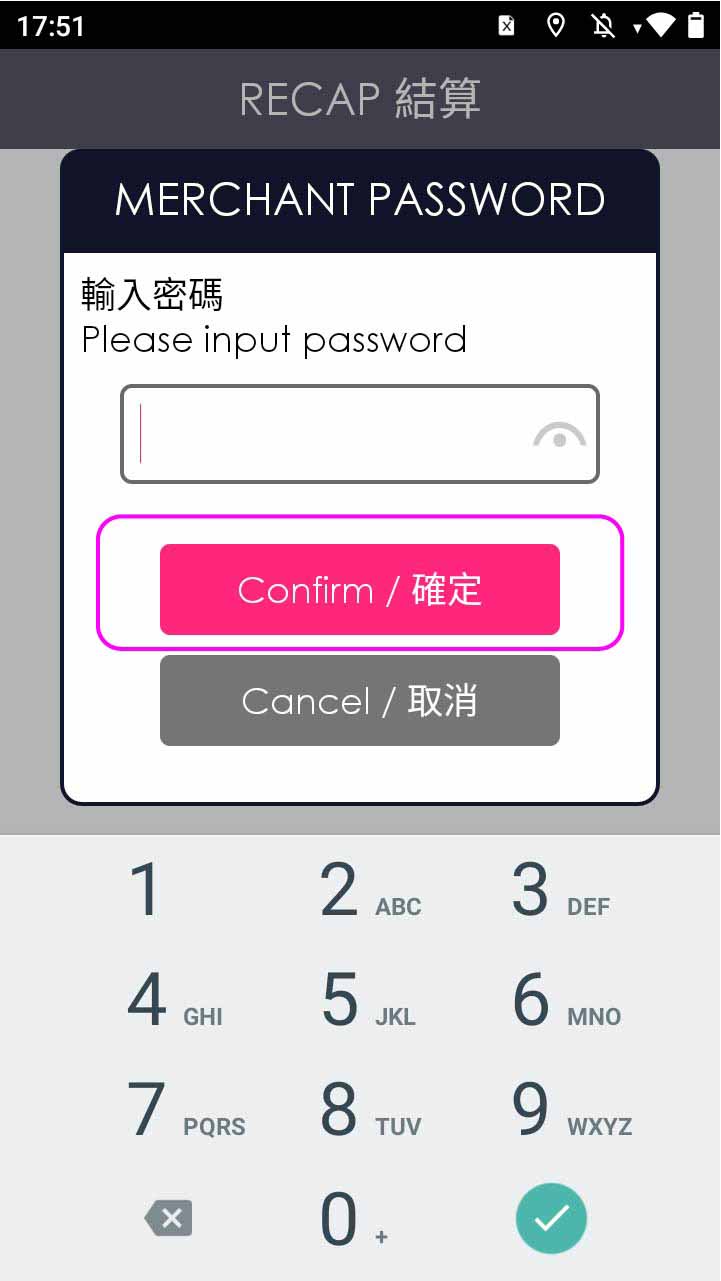

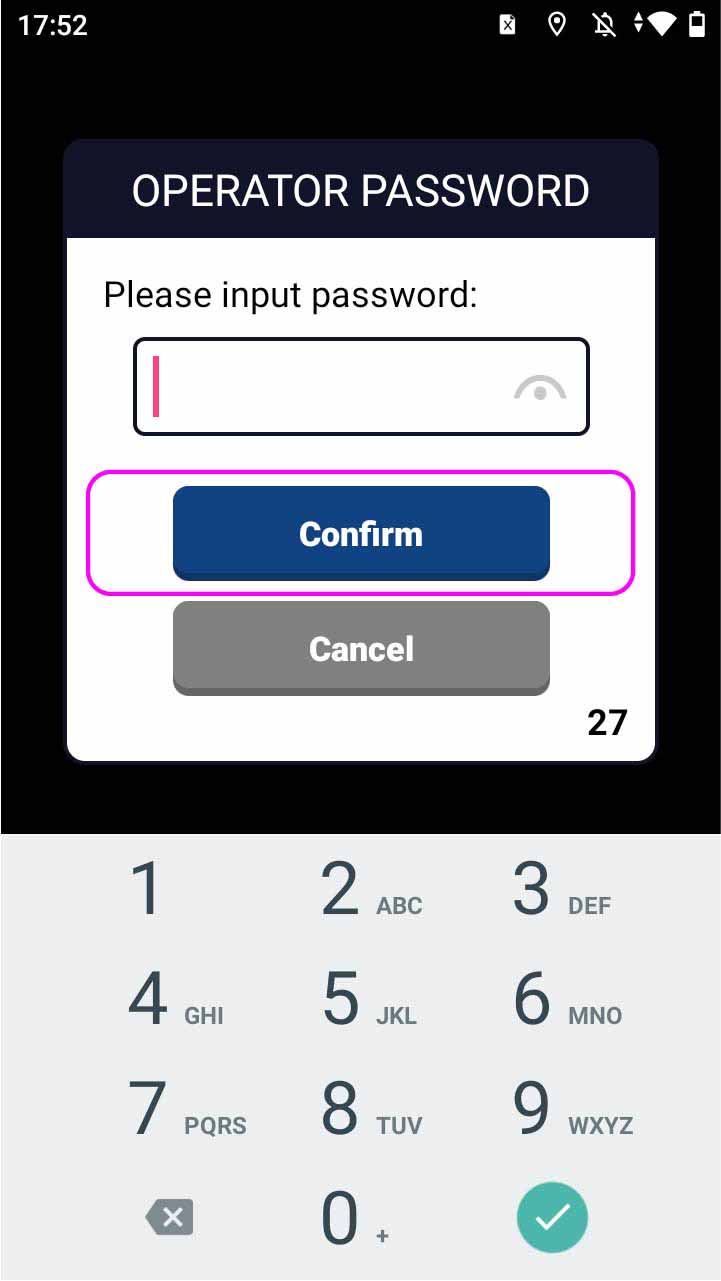

Enter operator password, and press [Confirm]

- Step 3 -

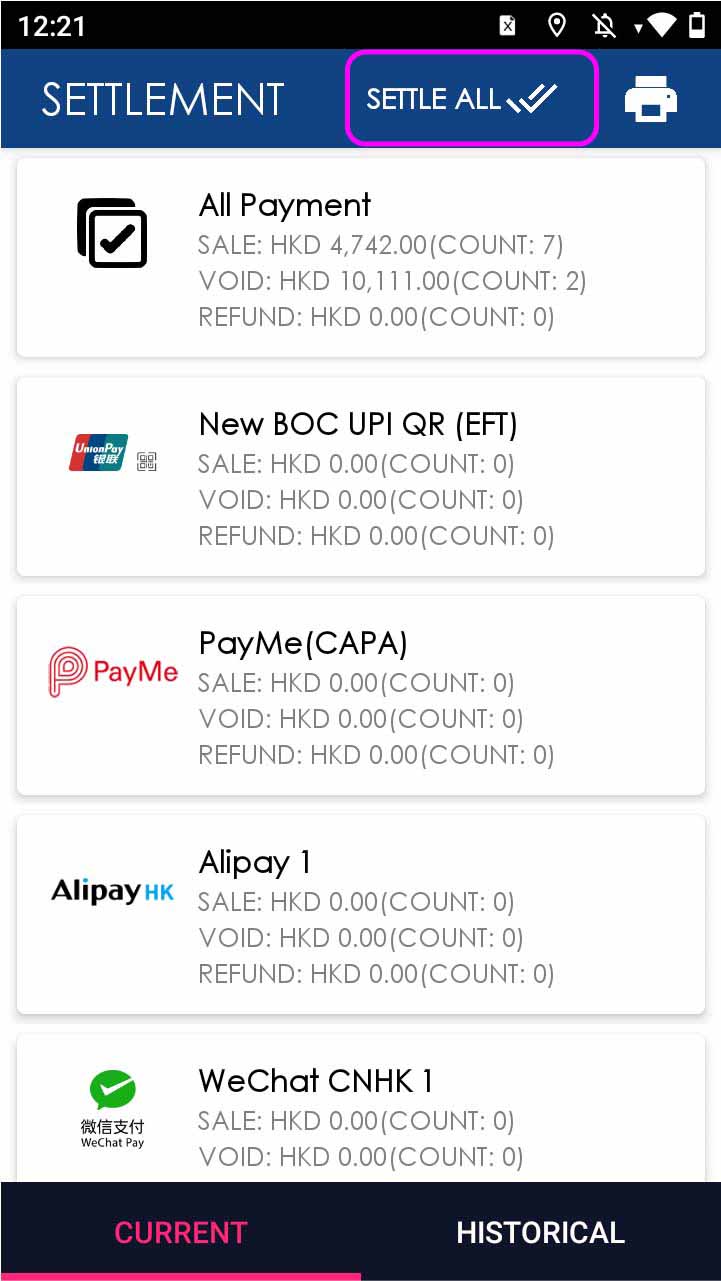

Press [Settle All] button

- Step 4 -

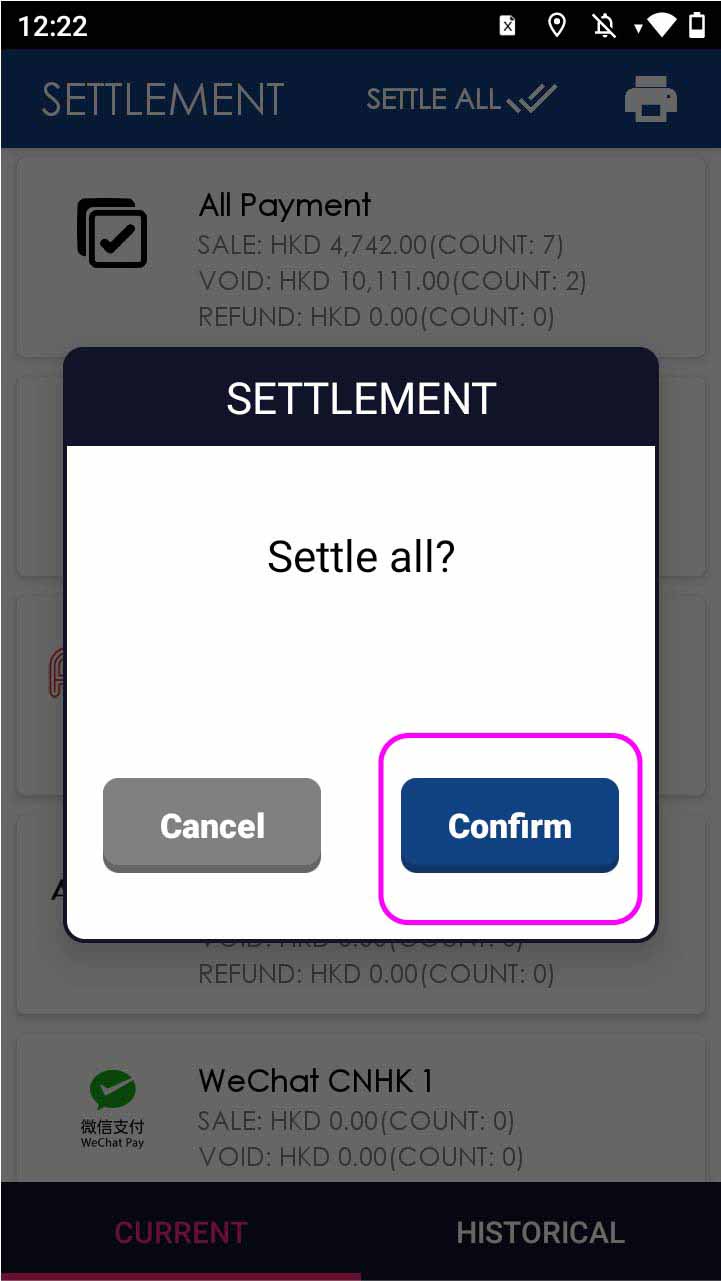

Press [Confirm] in the dialogue box

- Step 5 -

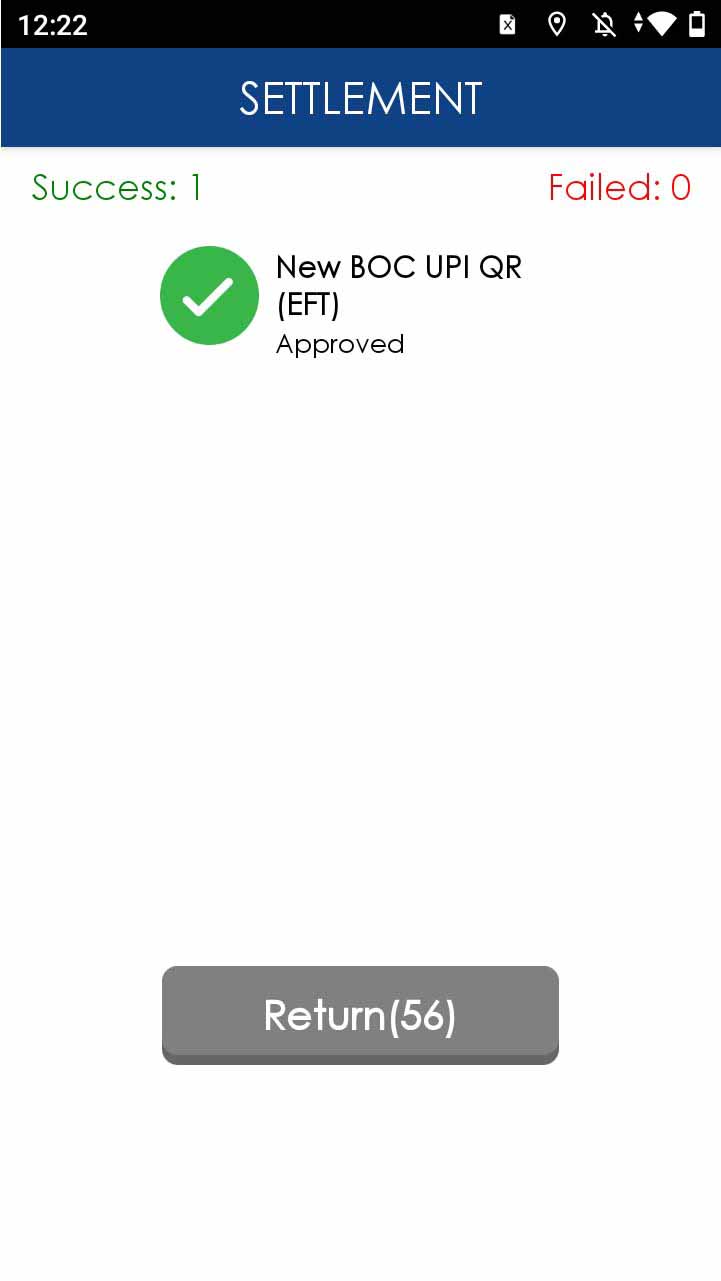

Terminal prints out receipt

- Step 1 -

Press [Batches] on menu

- Step 2 -

Enter operator password, and press [Confirm]

- Step 3 -

Select and press the payment method

- Step 4 -

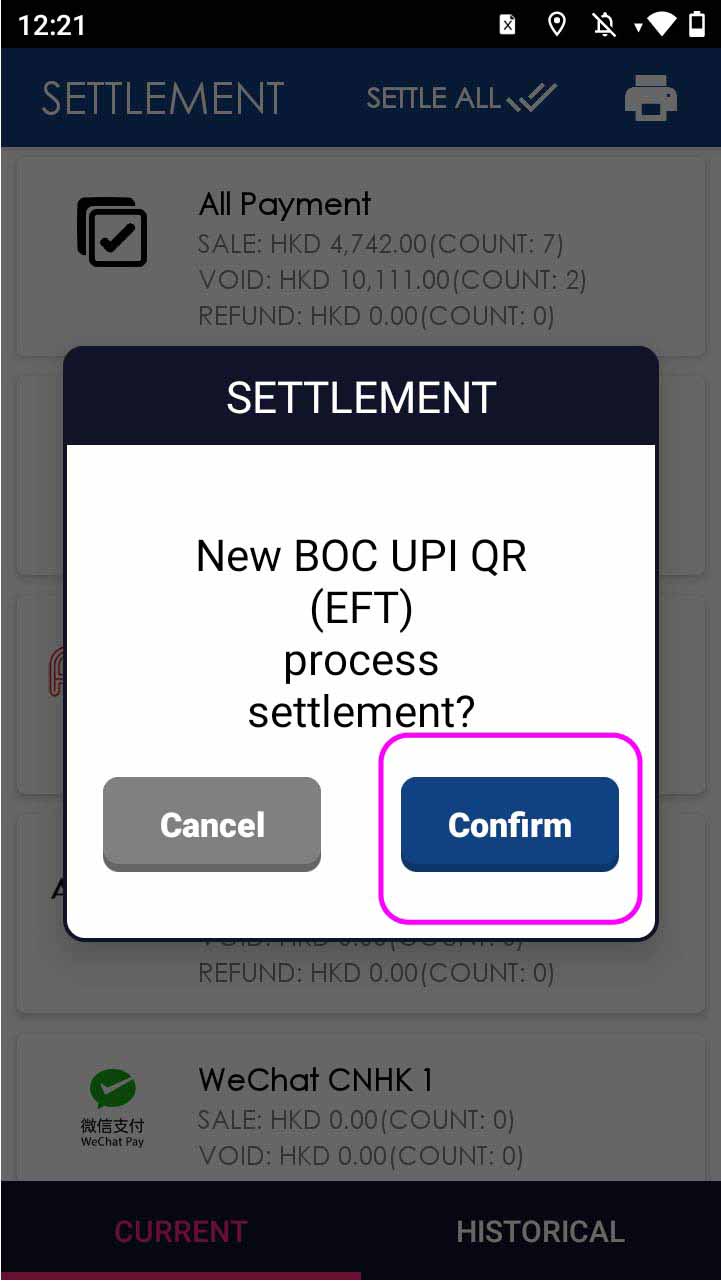

Press [Confirm] in the dialogue box

- Step 5 -

Terminal prints out receipt

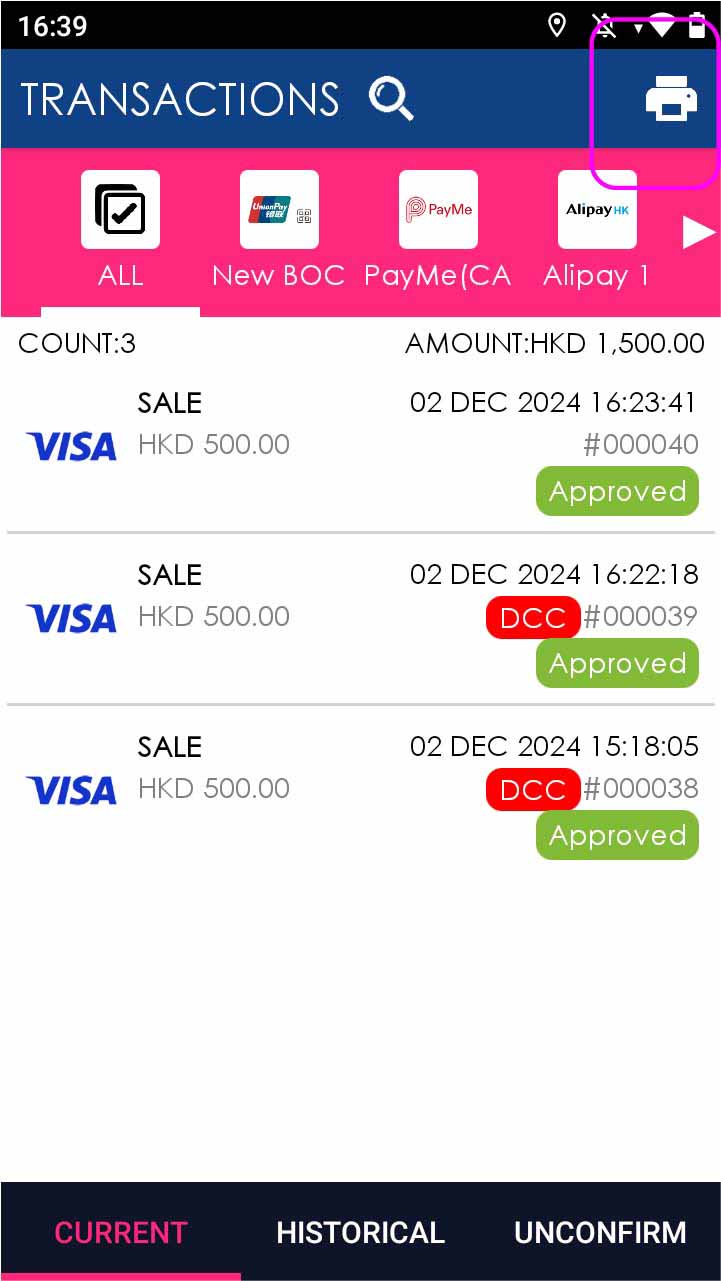

Reprint Transaction Receipt

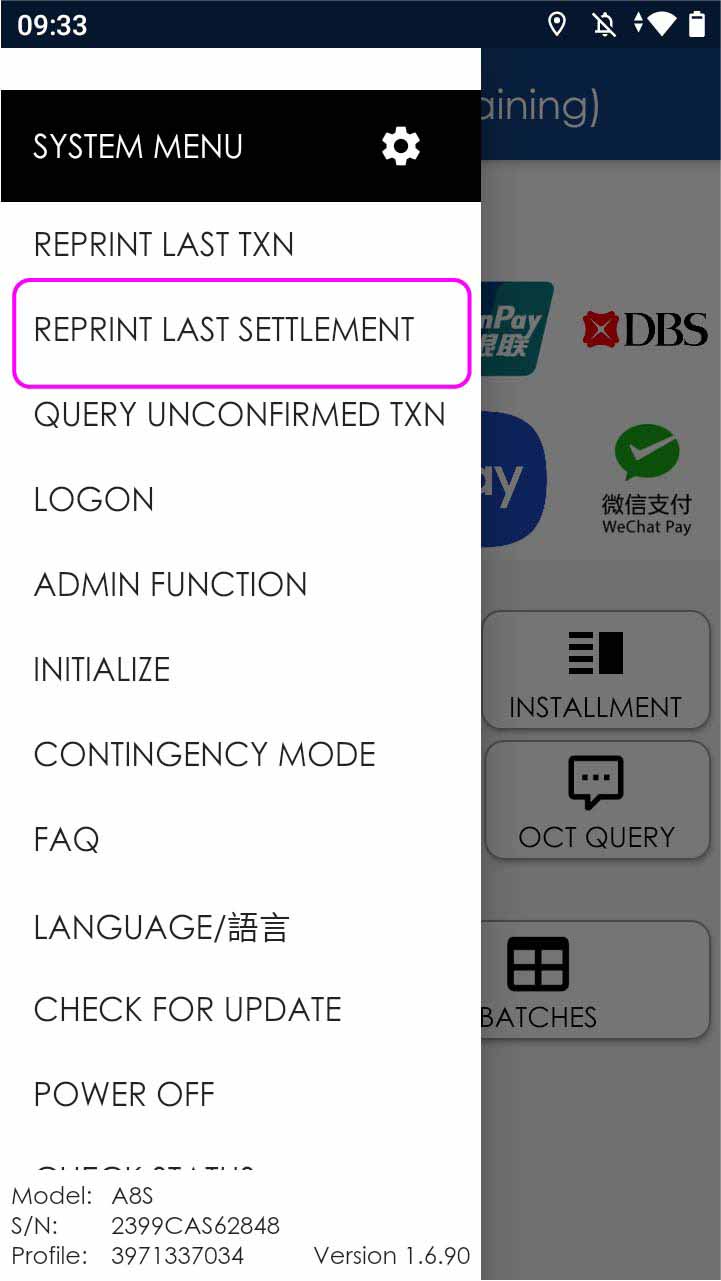

Reprint last settlement

View/Print Detail

View/Print Total

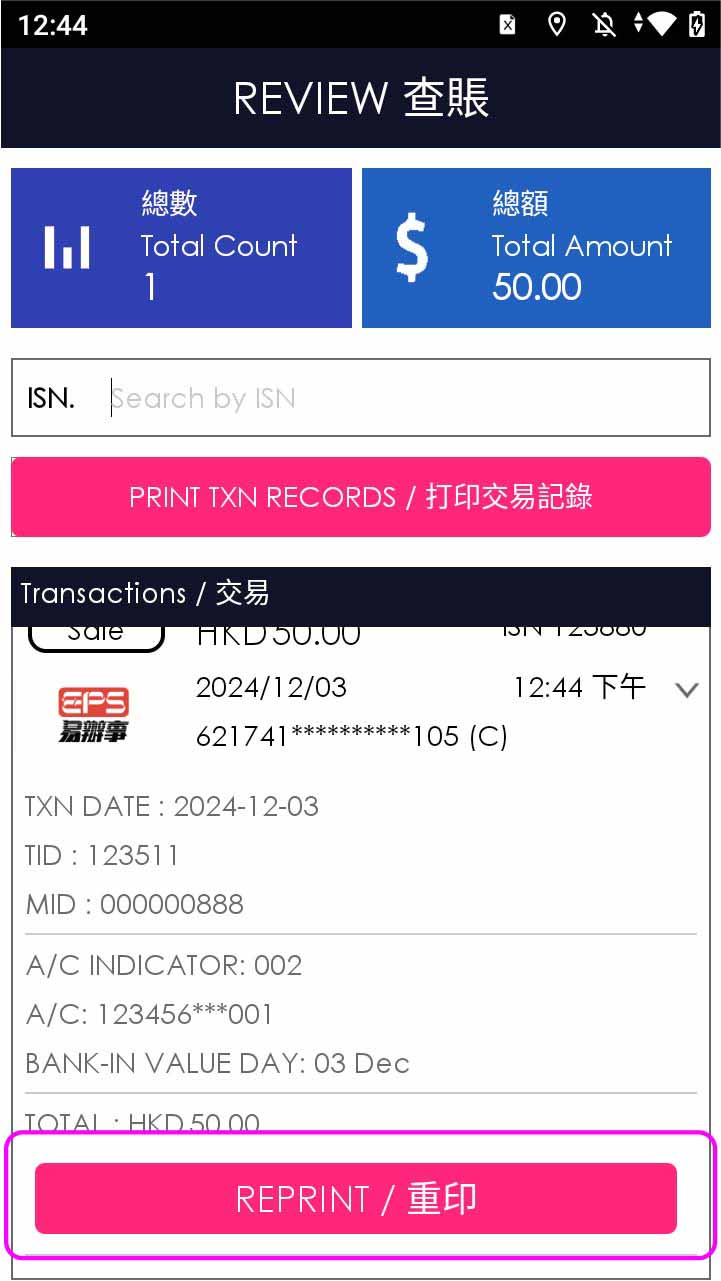

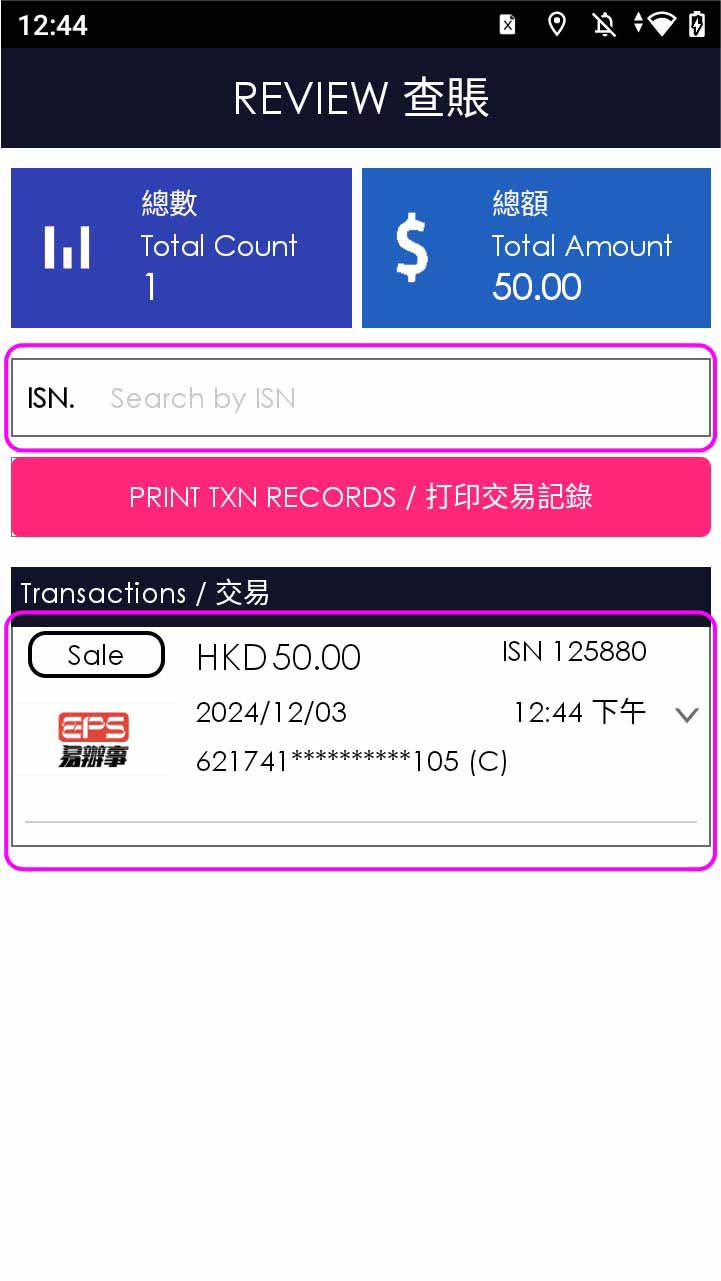

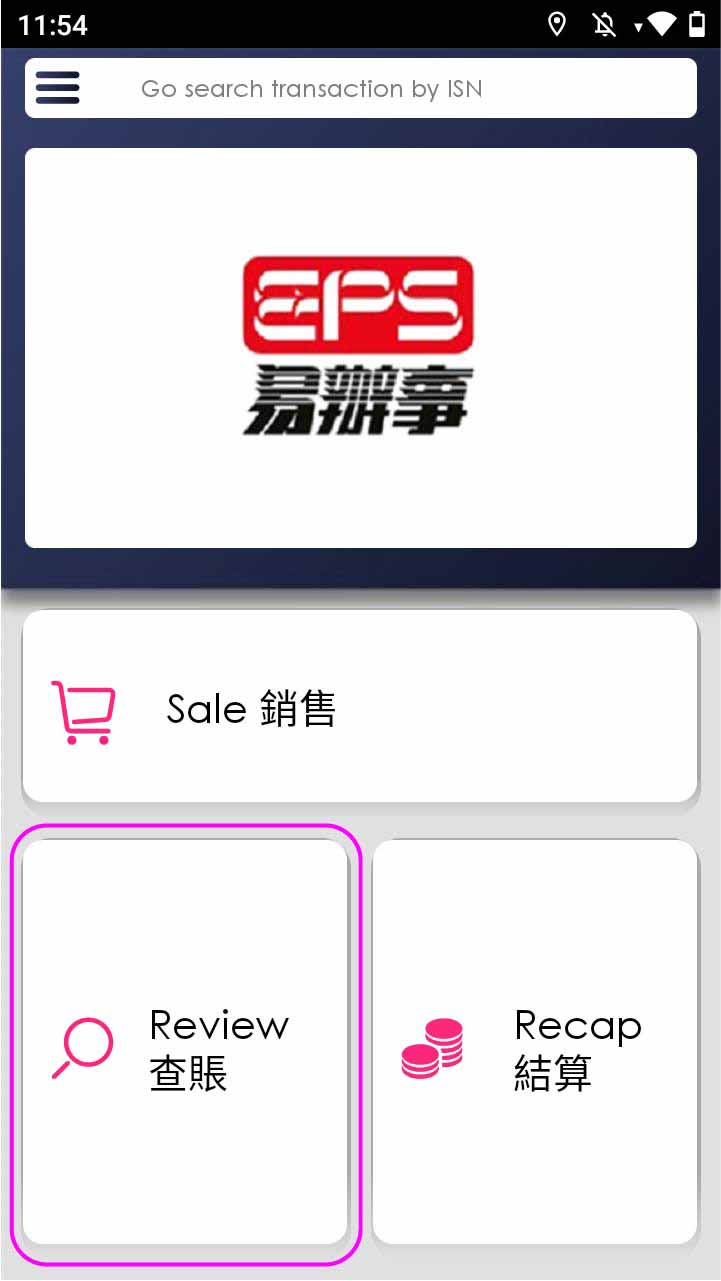

EPS Transaction Review/Reprint

Reprint EPS Settlement

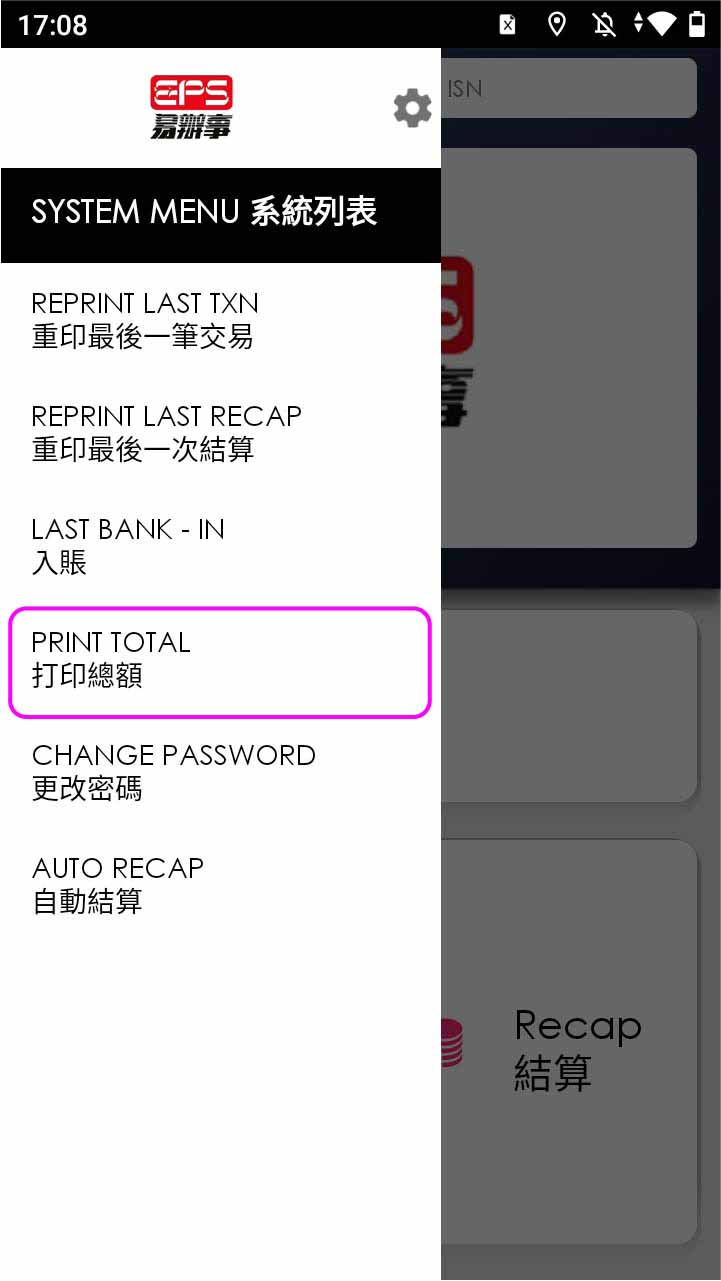

Reprint EPS Transaction Total

- Step 1 -

Press [Transactions] on menu

- Step 2 -

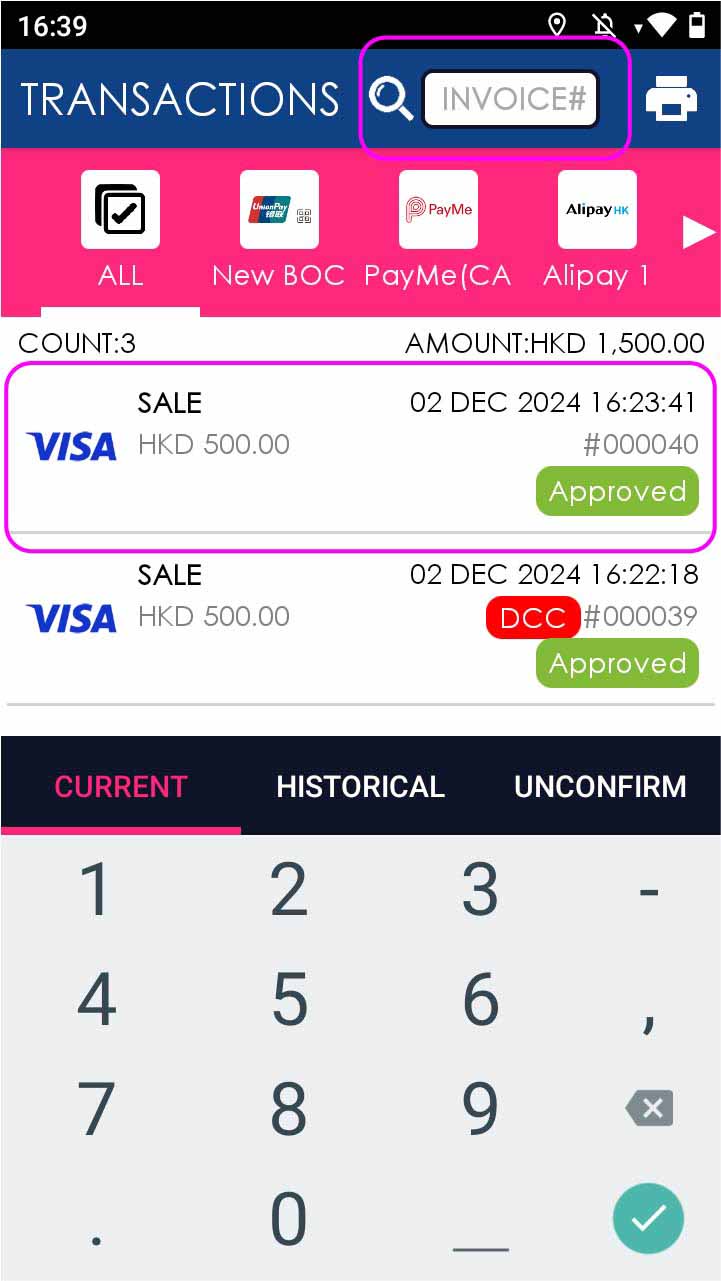

Click [magnifier icon] to enter invoice number / select transaction directly

- Step 3 -

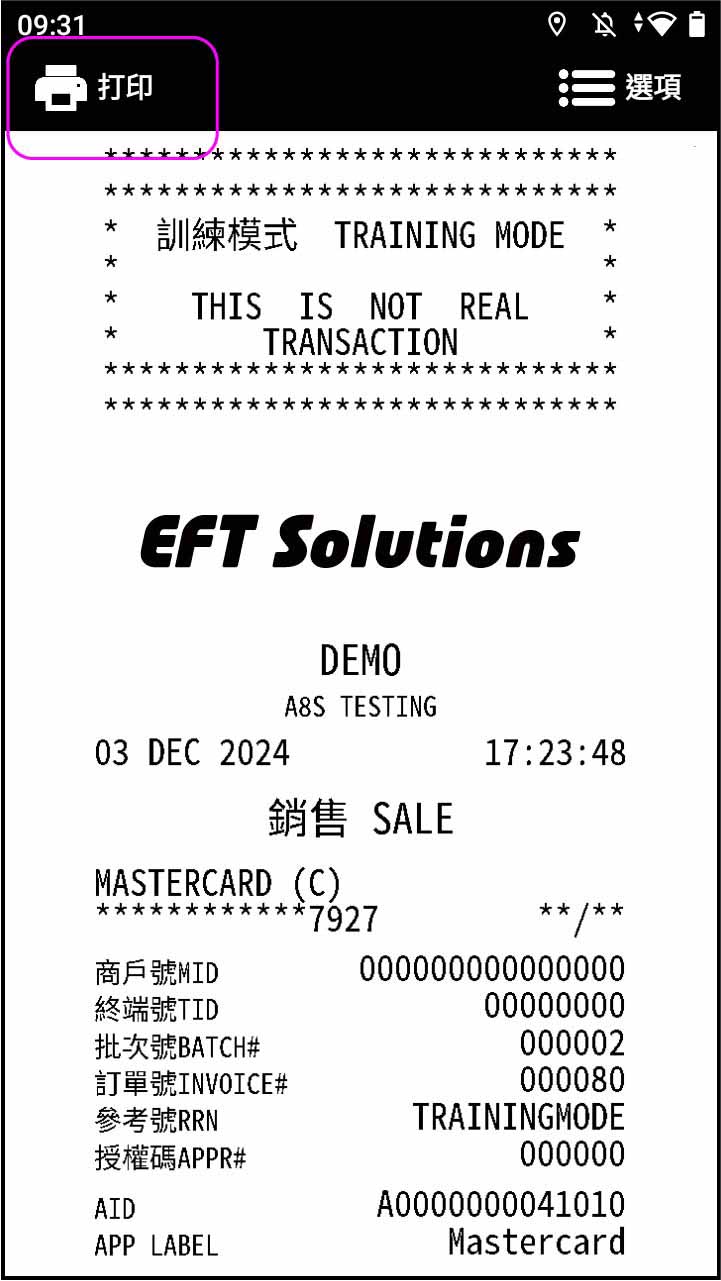

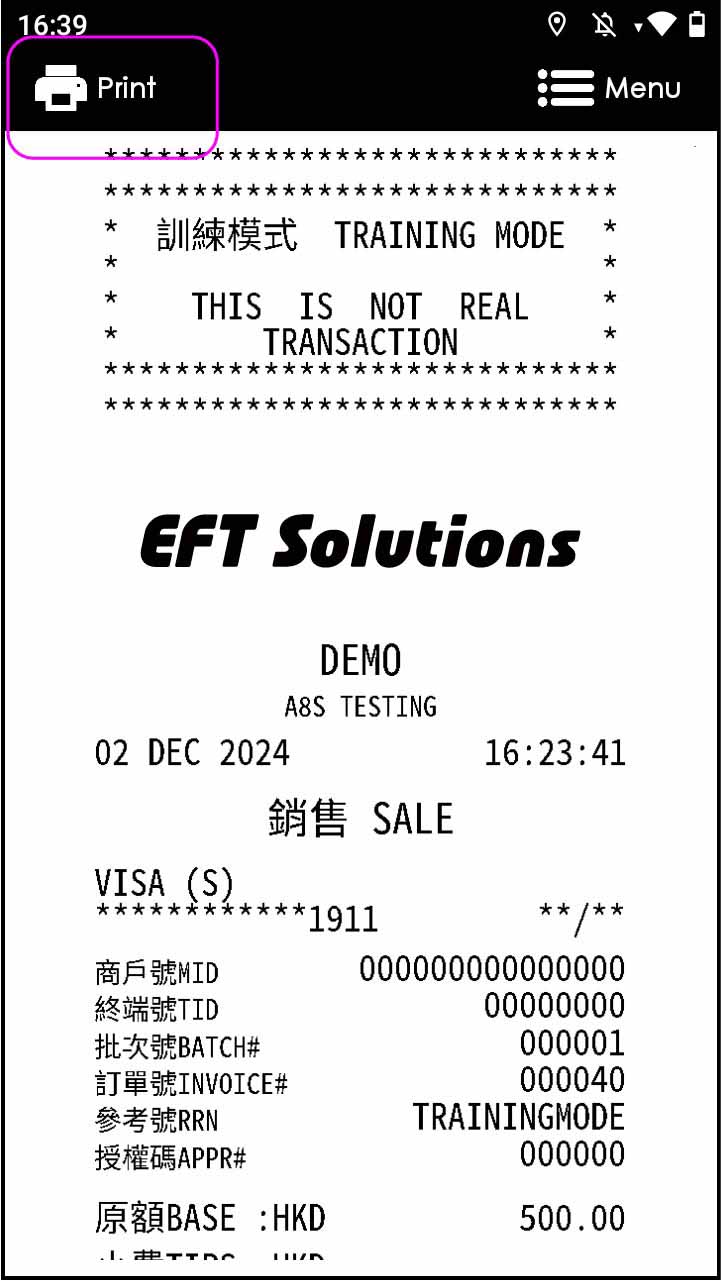

Press [Print], Terminal prints out receipt

Tips Adjust

- Step 1 -

Press [Transactions] on menu

- Step 2 -

Click [magnifier icon] to enter invoice number / select transaction directly

- Step 3 -

Select [Menu], and press [TIP ADJUSTMENT]

- Step 4 -

Enter the revised total amount, and press [Confirm]

- Step 5 -

Transcation is completed, and terminal prints out receipt

Pre-authorization

Pre-authorization Completion

Void Pre-authorization

Void Pre-authorization Completion

Offline

- Step 1 -

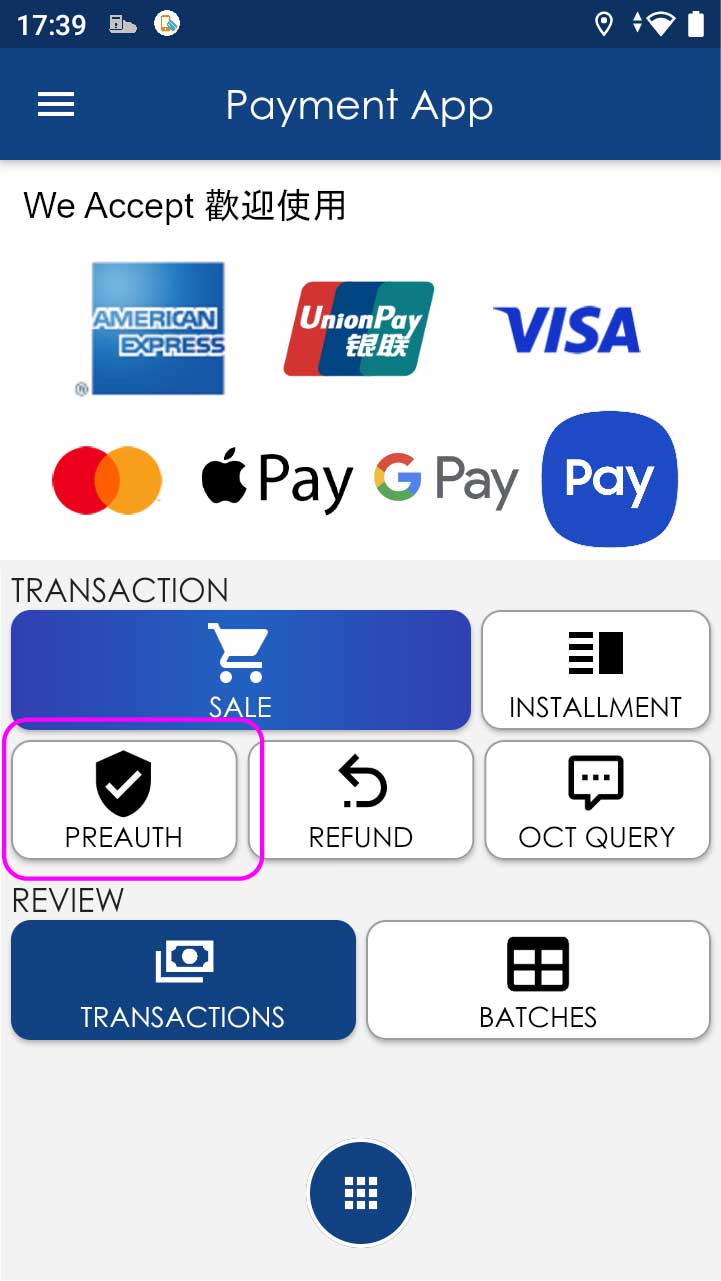

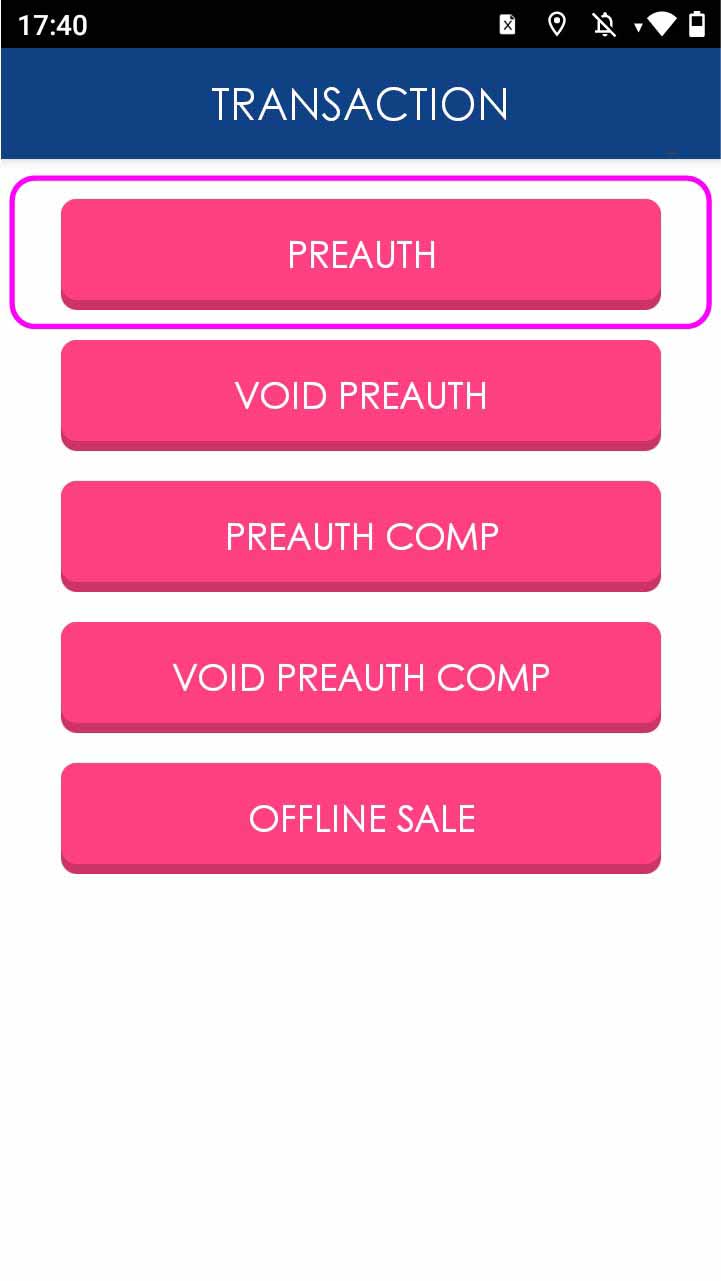

Press [PREAUTH] on menu

- Step 2 -

Select [PREAUTH]

- Step 3 -

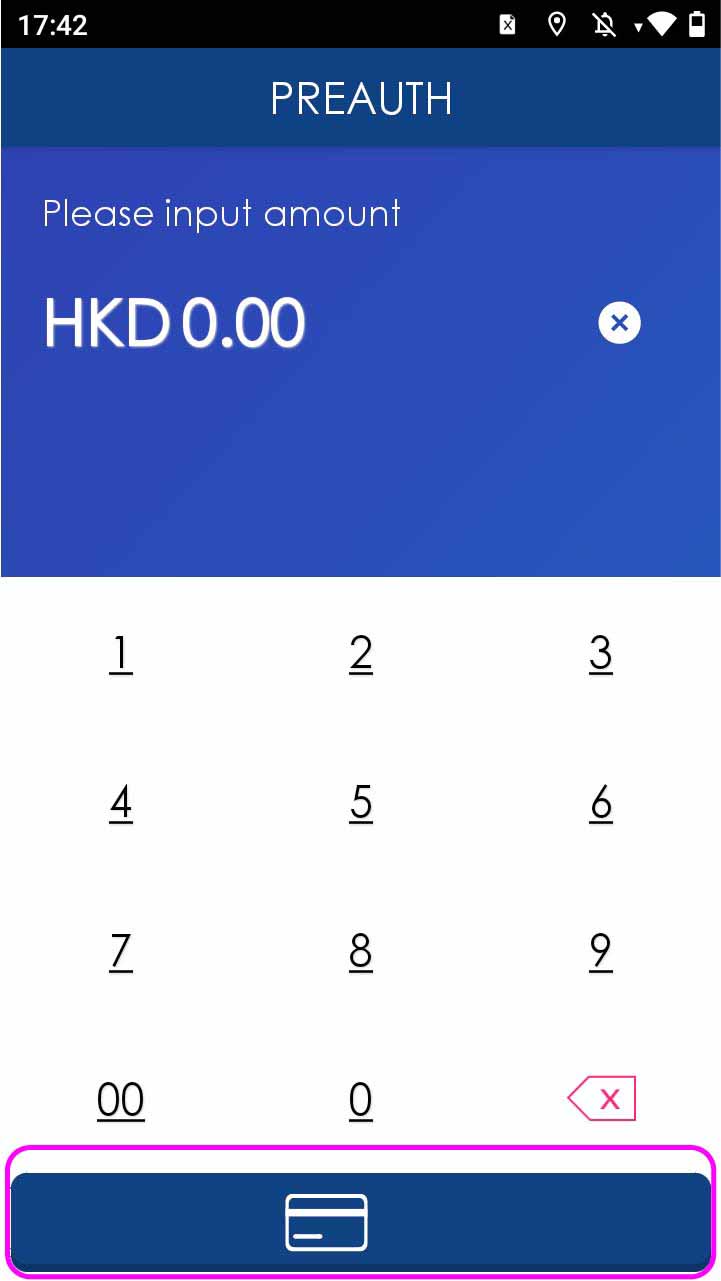

Enter pre-authorized amount, then select credit card payment

- Step 4 -

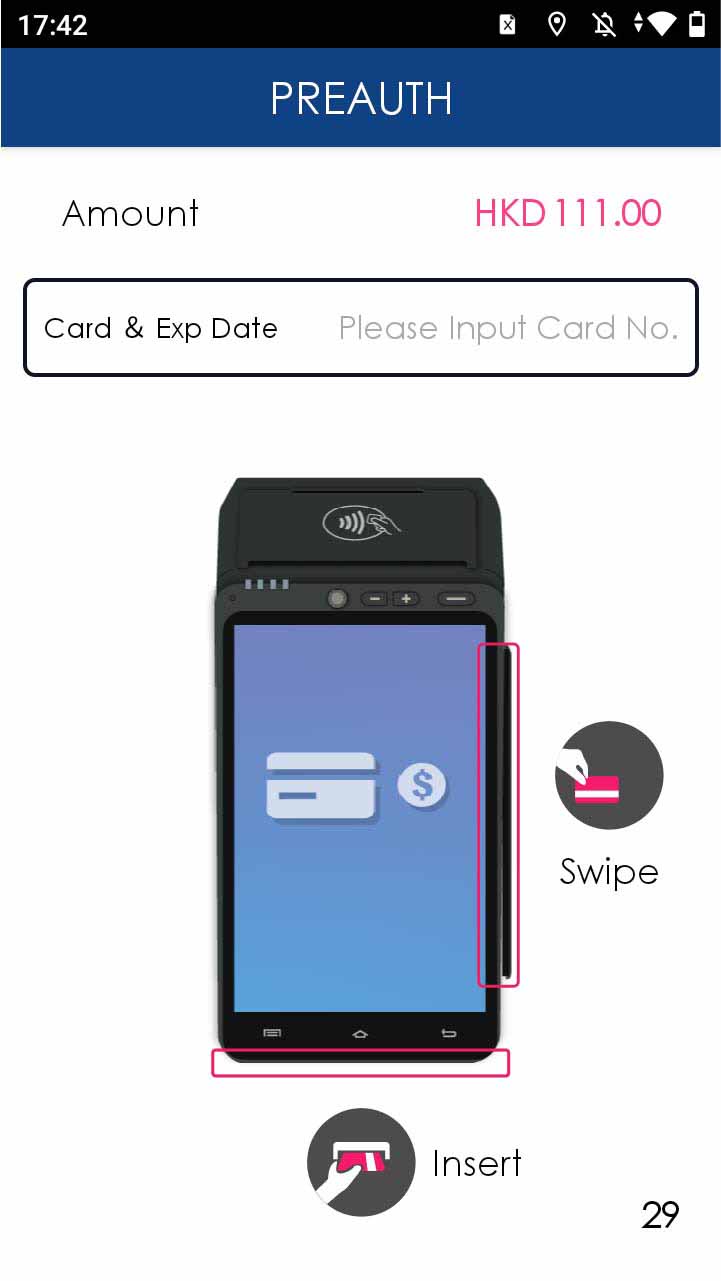

Insert/swipe card OR manually enter the card number & expiry date

- Step 5 -

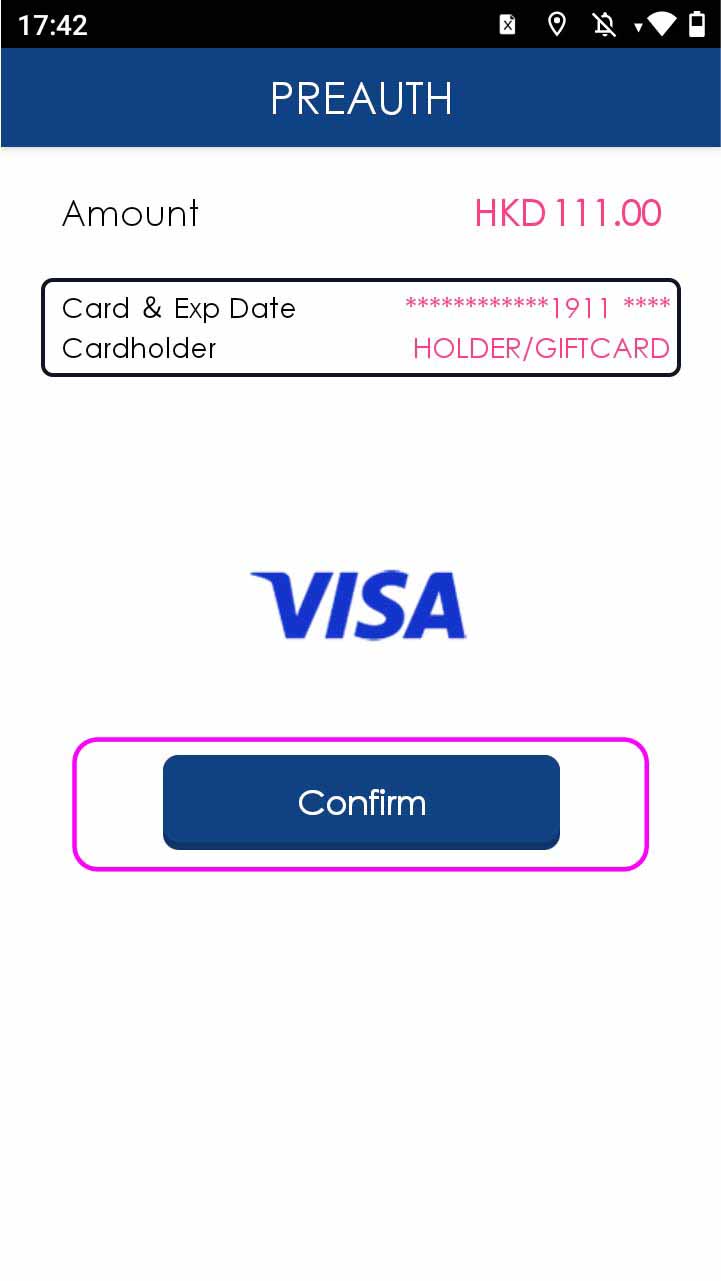

Select [Confirm]

- Step 6 -

If customer’s signature is required, sign an e-signature on terminal OR press [Print Receipt] to print receipt for customer to sign on it

- Step 7 -

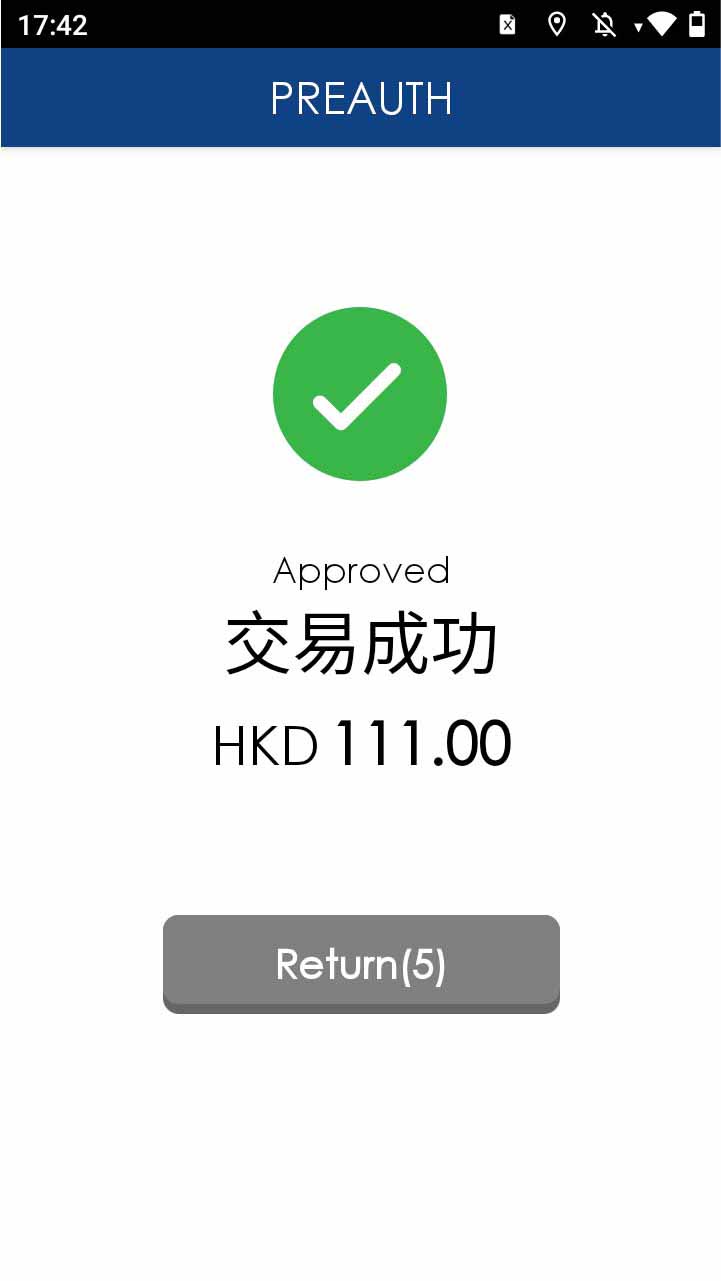

Transaction is completed, and terminal prints out receipt

- Step 1 -

Press [PREAUTH] on menu

- Step 2 -

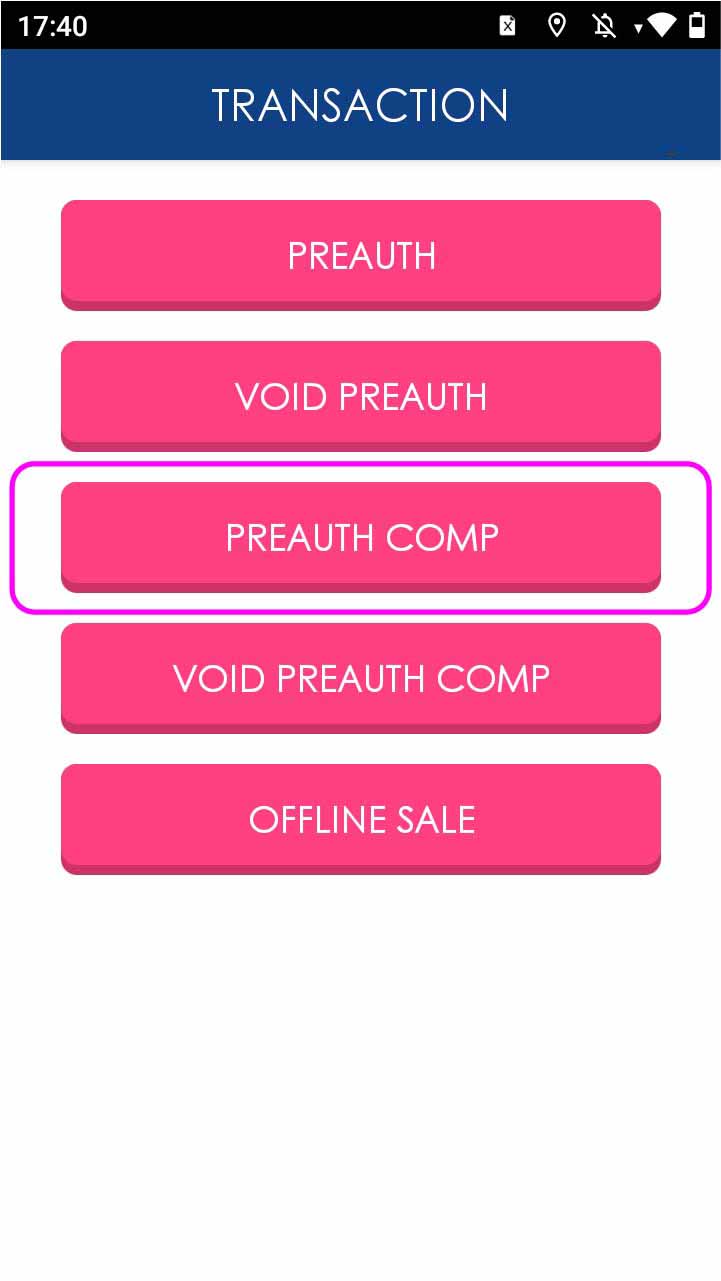

Select [PREAUTH COMP]

- Step 3 -

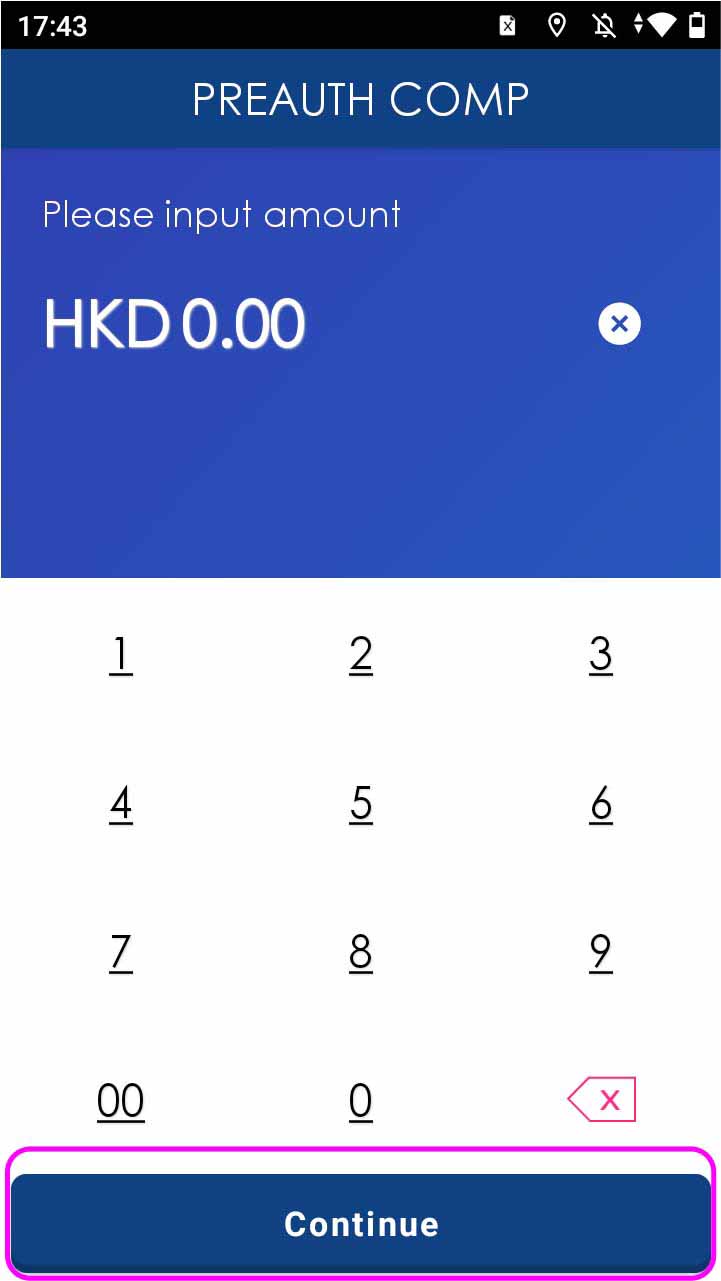

Enter pre-authorized completion amount, then select [Continue]

- Step 4 -

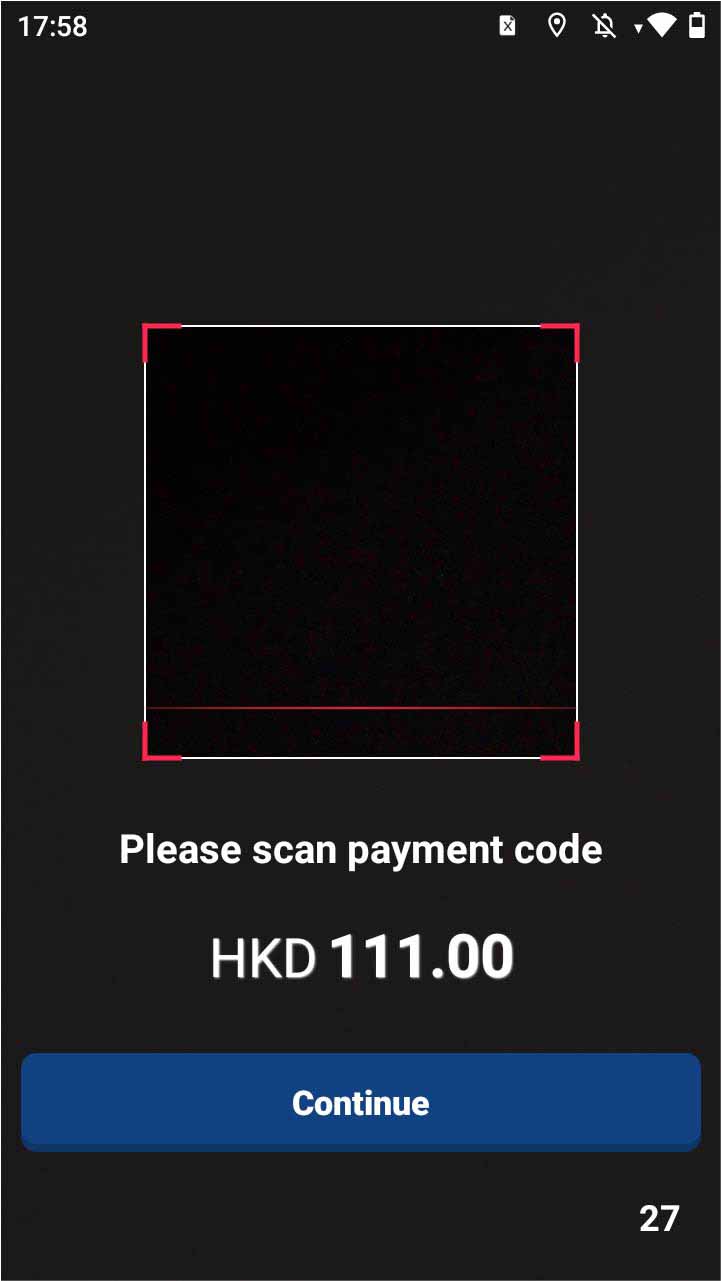

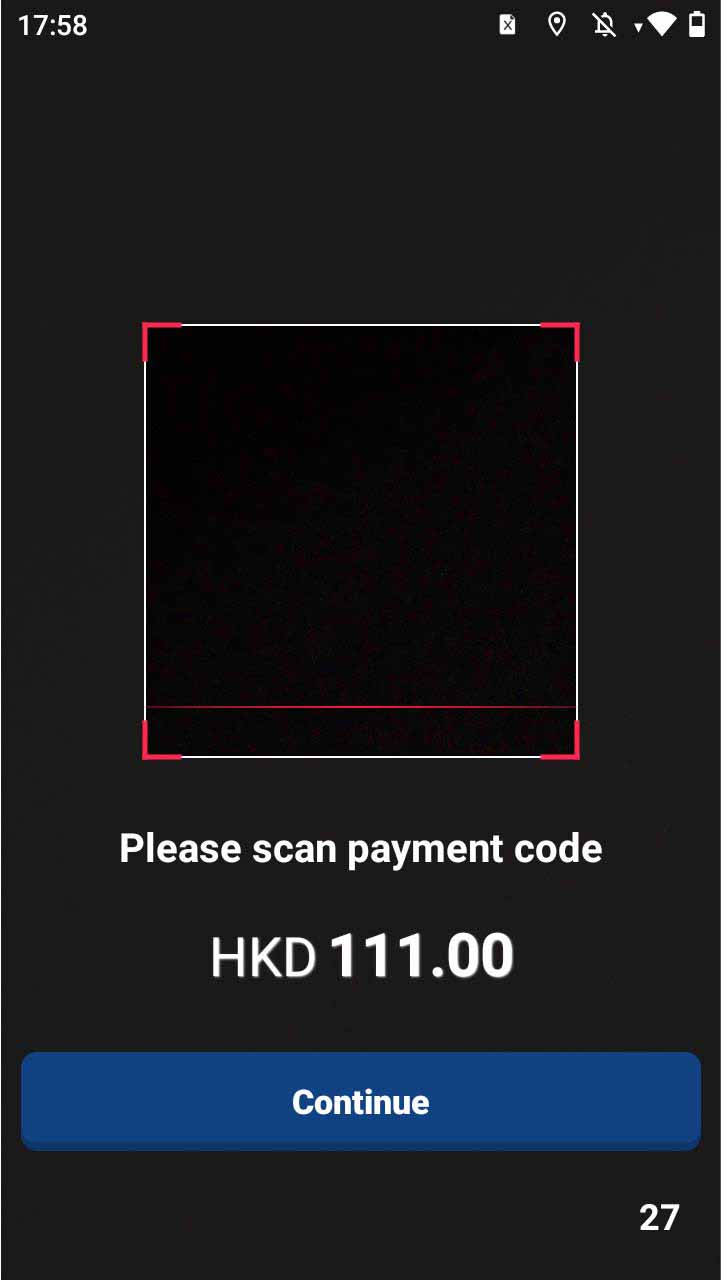

Scan the payment code on the pre-authorization receipt

- Step 5 -

Insert/swipe card OR manually enter the card number & expiry date

- Step 6 -

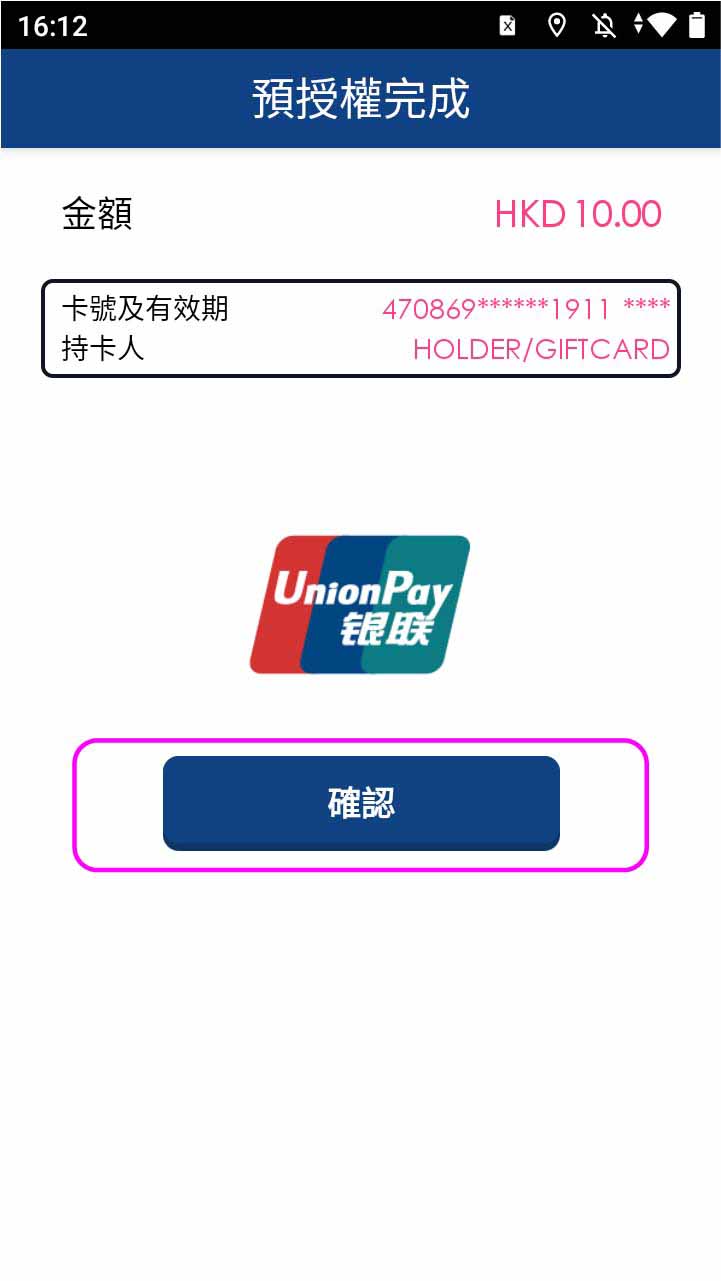

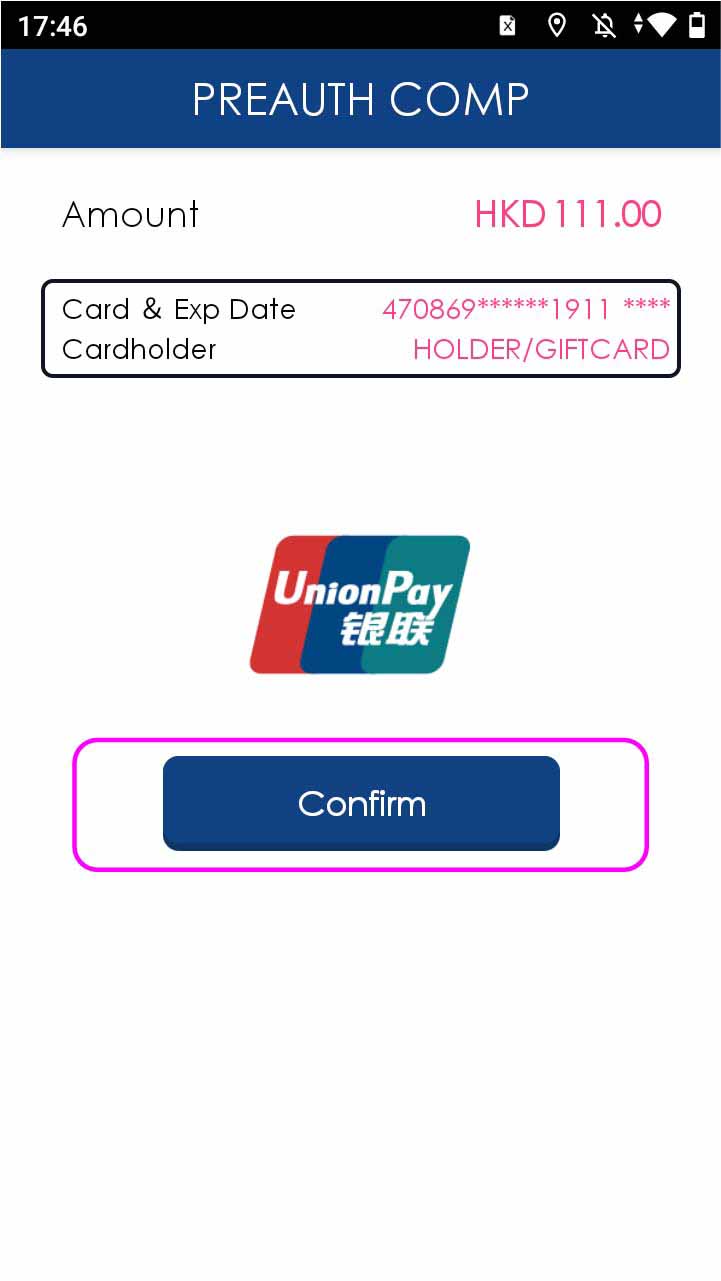

Select [Continue]

- Step 7 -

If customer’s signature is required, sign an e-signature on terminal OR press [Print Receipt] to print receipt for customer to sign on it

- Step 8 -

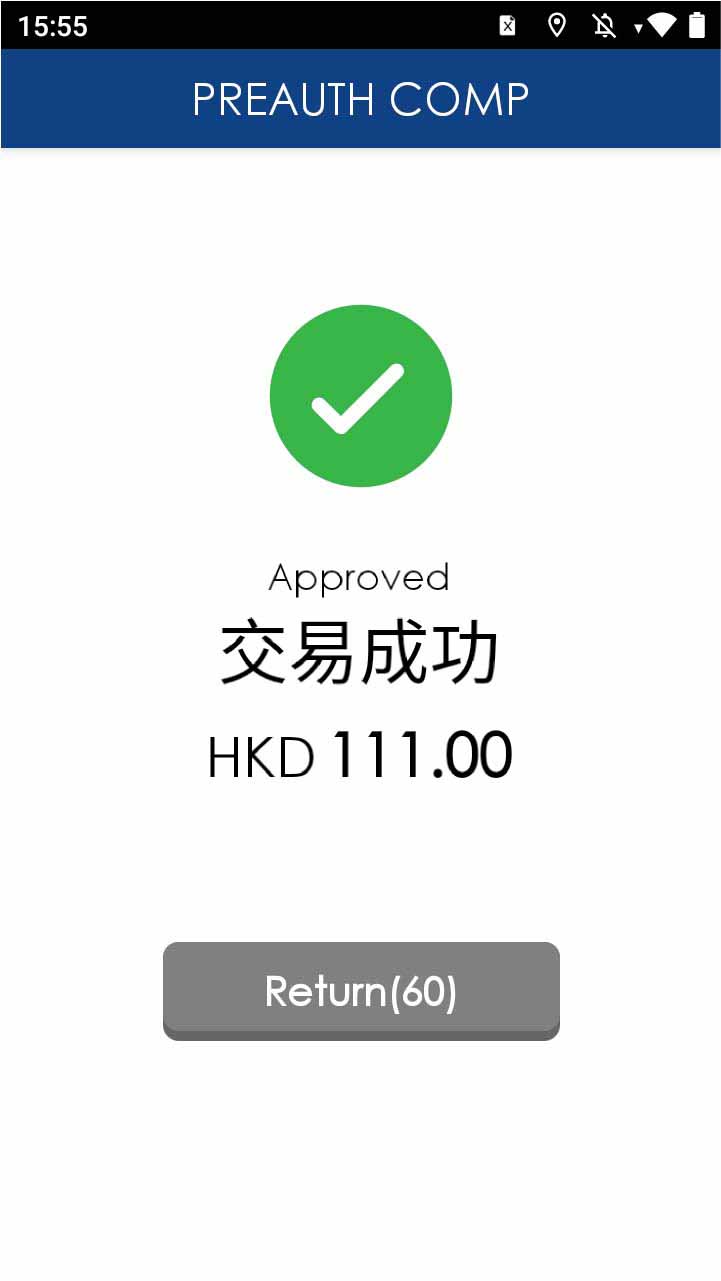

Transaction is completed, and terminal prints out receipt

- Step 1 -

Press [PREAUTH] on menu

- Step 2 -

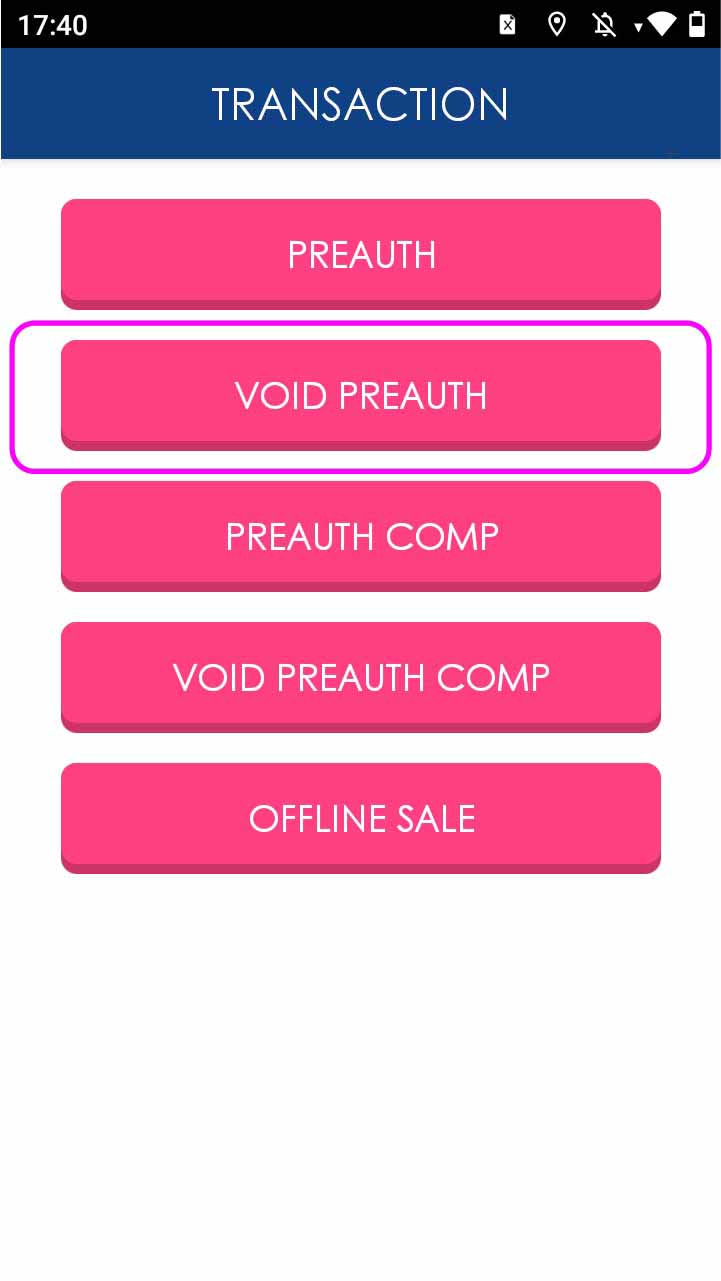

Select [VOID PREAUTH]

- Step 3 -

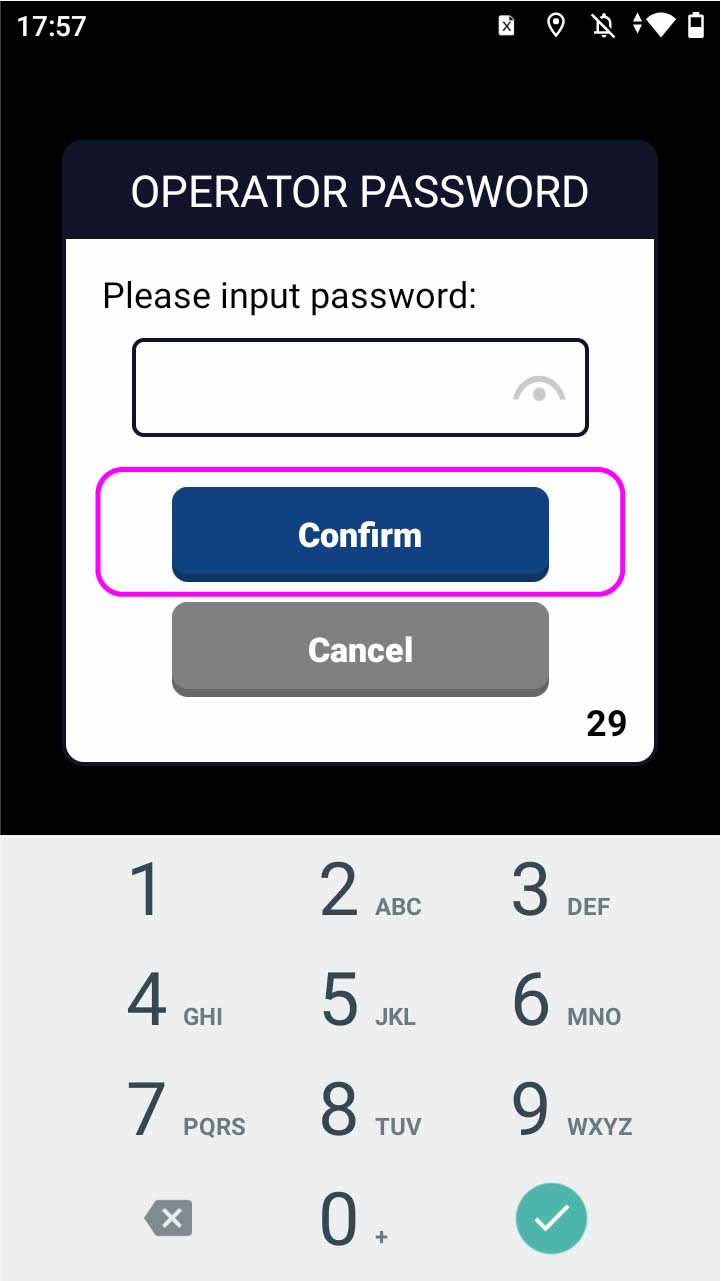

Enter operator password, and press [Confirm]

- Step 4 -

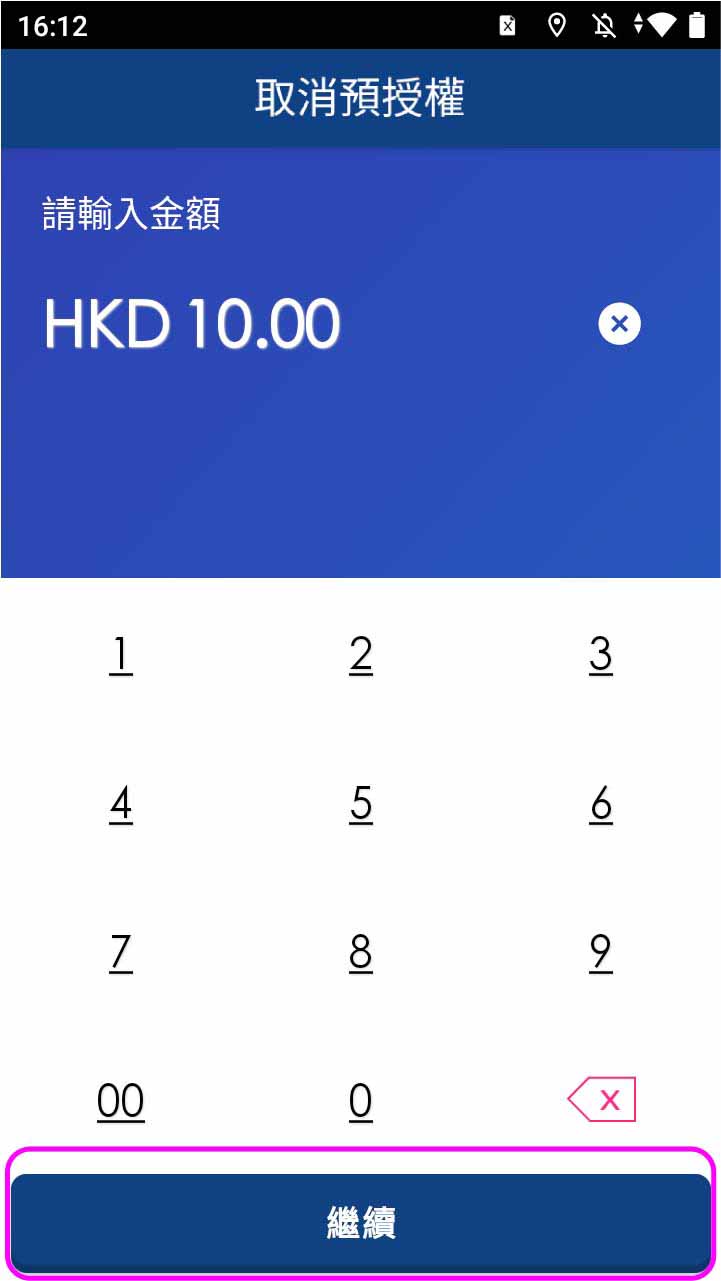

Enter pre-authorized amount, then select [Continue]

- Step 5 -

Scan the payment code on the pre-authorization receipt

- Step 6 -

Insert/swipe card OR manually enter the card number & expiry date, Press [Confirm]

- Step 7 -

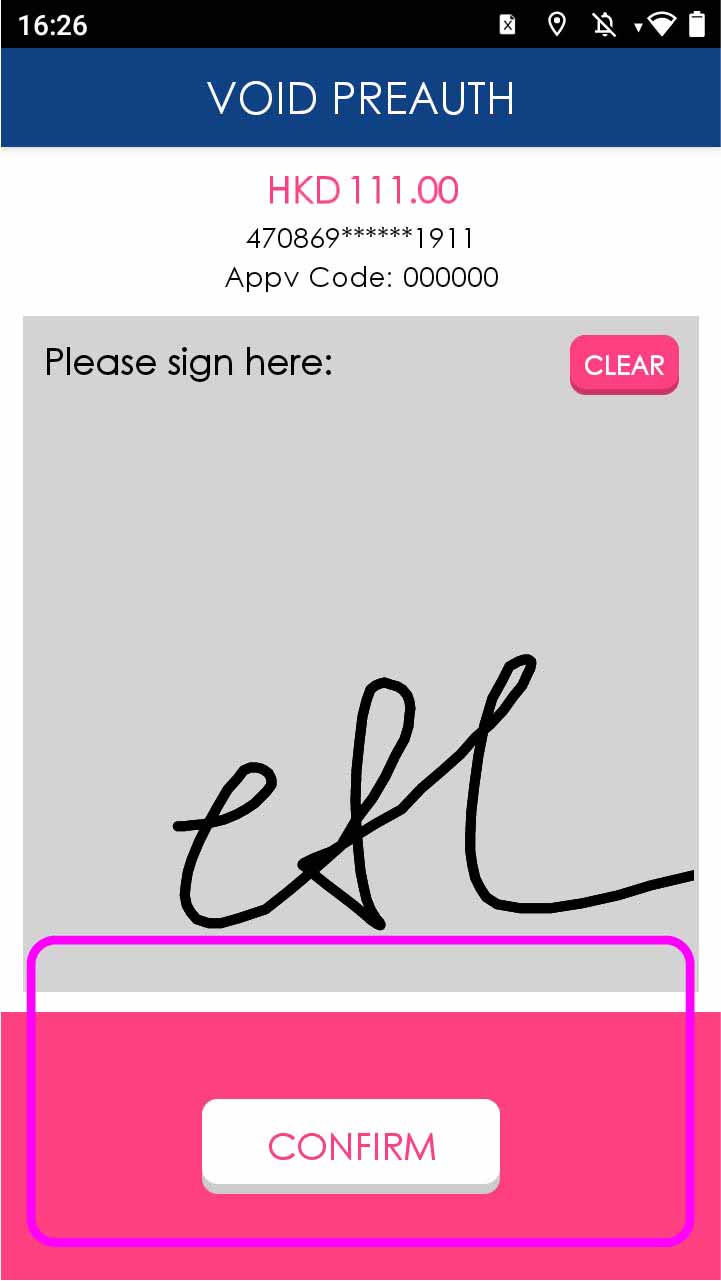

If customer’s signature is required, sign an e-signature on terminal OR press [Print Receipt] to print receipt for customer to sign on it

- Step 8 -

Transaction is completed, and terminal prints out receipt

- Step 1 -

Press [PREAUTH] on menu

- Step 2 -

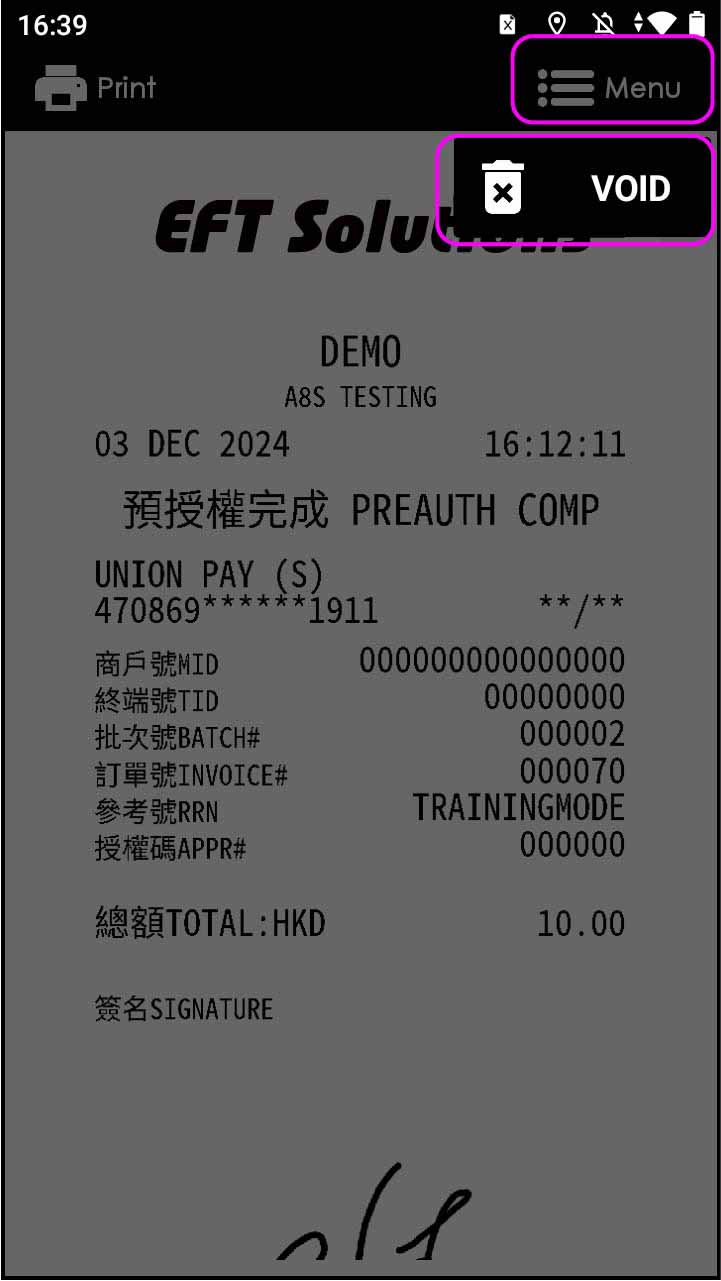

Select [VOID PREAUTH COMP]

- Step 3 -

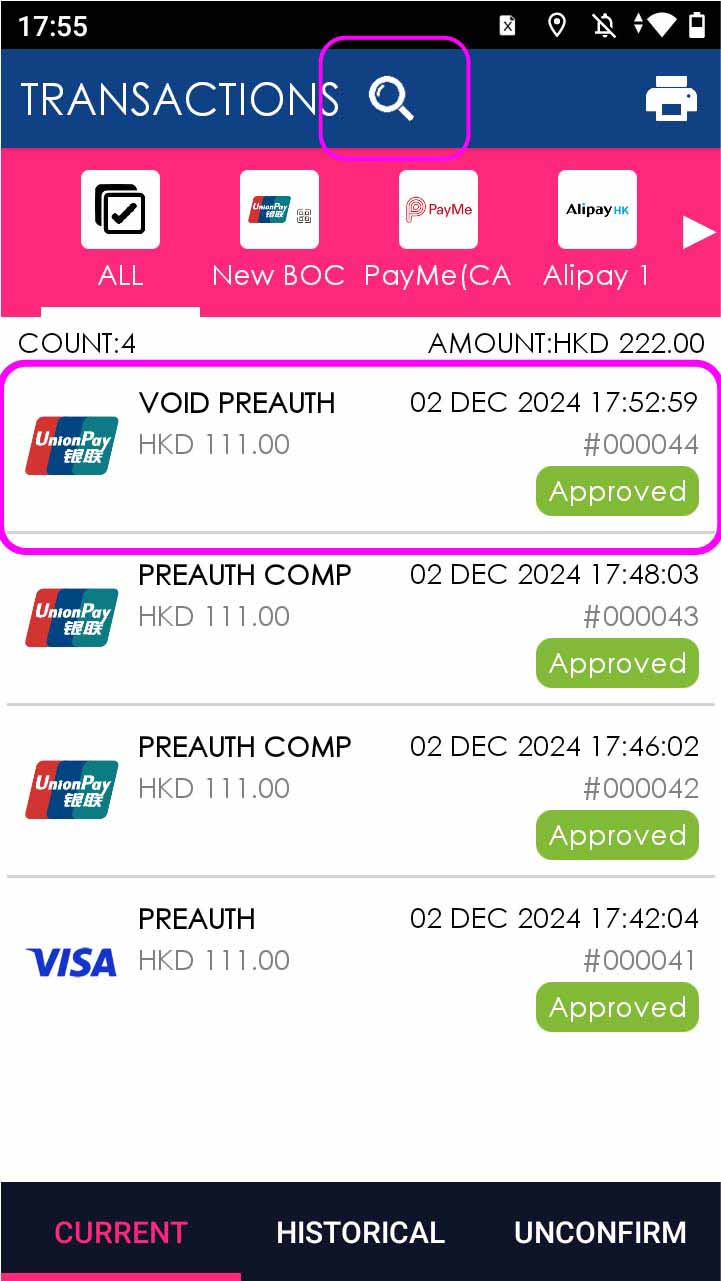

Enter trace number in the “TRACE#” search bar / select transaction directly

- Step 4 -

Select [Menu], and press [Void]

- Step 5 -

Enter operator password, and press [Confirm]

- Step 6 -

Transaction is completed, and terminal prints out receipt

- Step 1 -

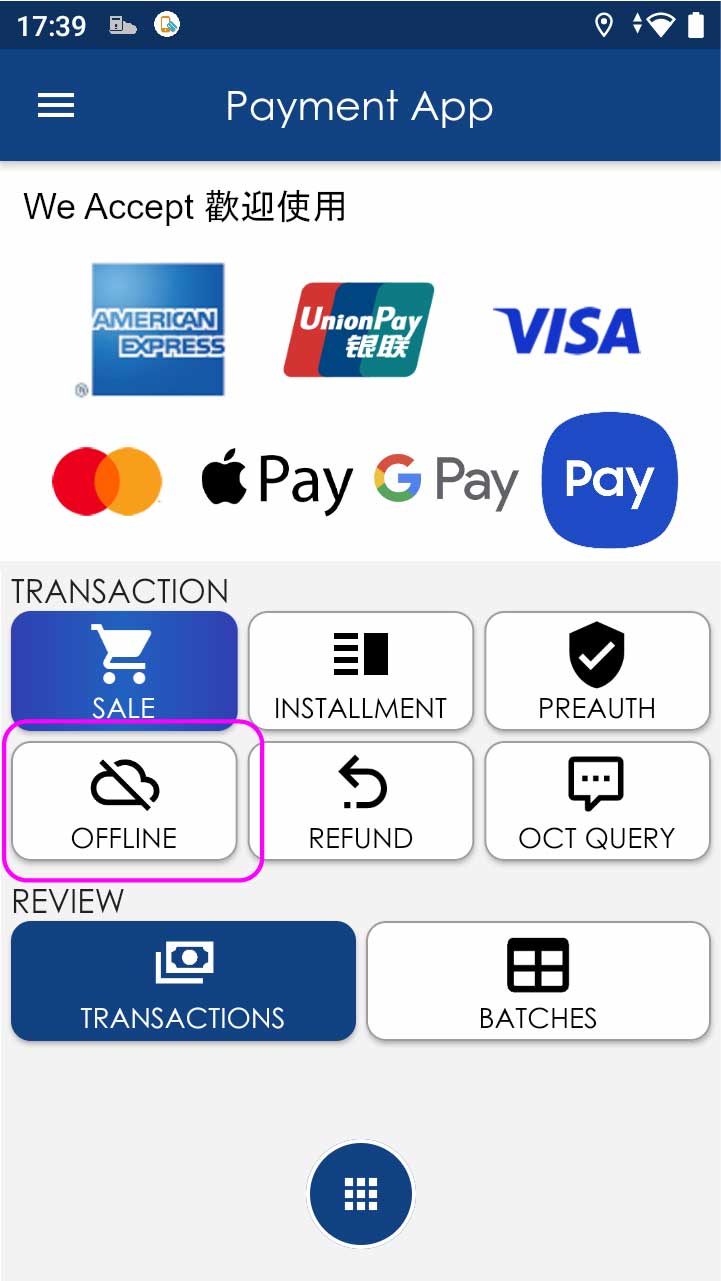

Press [OFFLINE] on menu

- Step 2 -

Enter operator password, and press [Confirm]

- Step 3 -

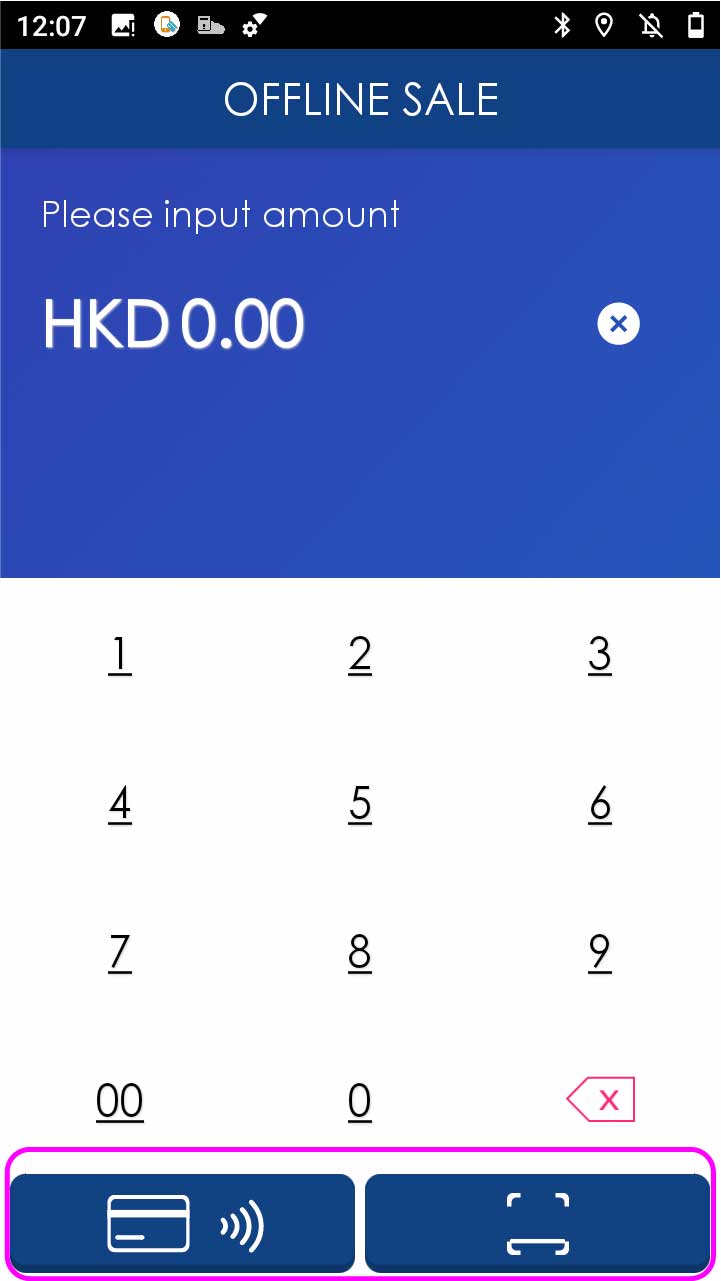

Enter offline sale amount, and select [Card] or [QR Code]

- Step 4 -

Tap/insert/swipe card for inputting data

- Step 5 -

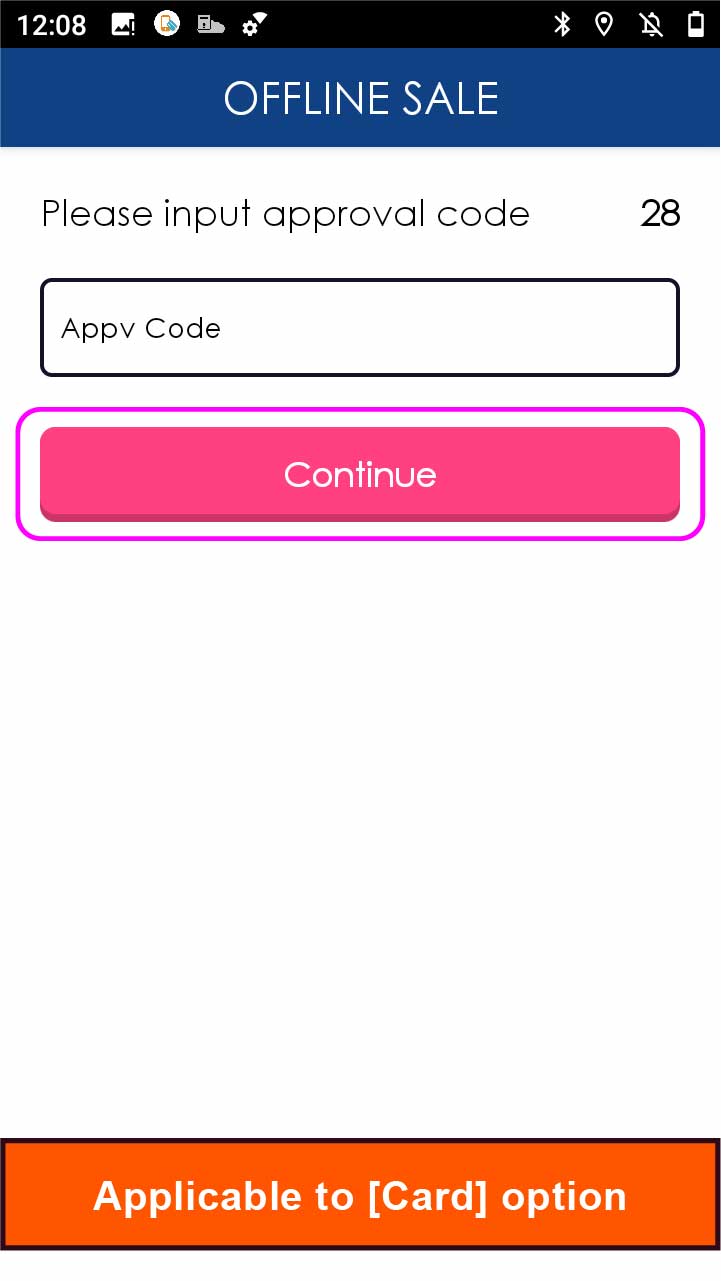

Enter the approval code, and press [Continue]

- Step 6 -

Scan the payment code on the pre-authorization receipt

- Step 7 -

Check credit card info, and press [Confirm]

- Step 8 -

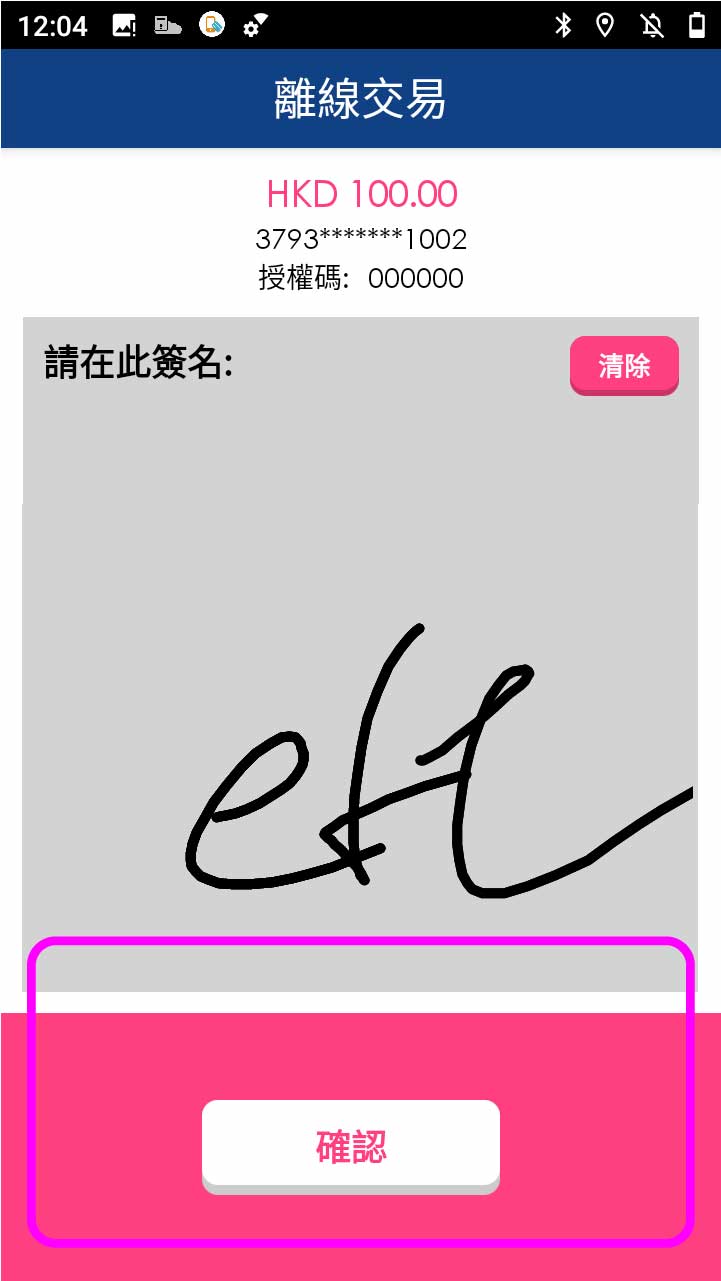

If customer’s signature is required, sign an e-signature on terminal OR press [Confirm] to print receipt for customer to sign on it

- Step 9 -

Transaction is completed, and terminal prints out receipt

EN

中

終端機用戶指南

功能 :

掃描二維碼

顯示二維碼

八達通

信用卡支付

分期

易辦事

外幣銷售

- 步驟 1 -

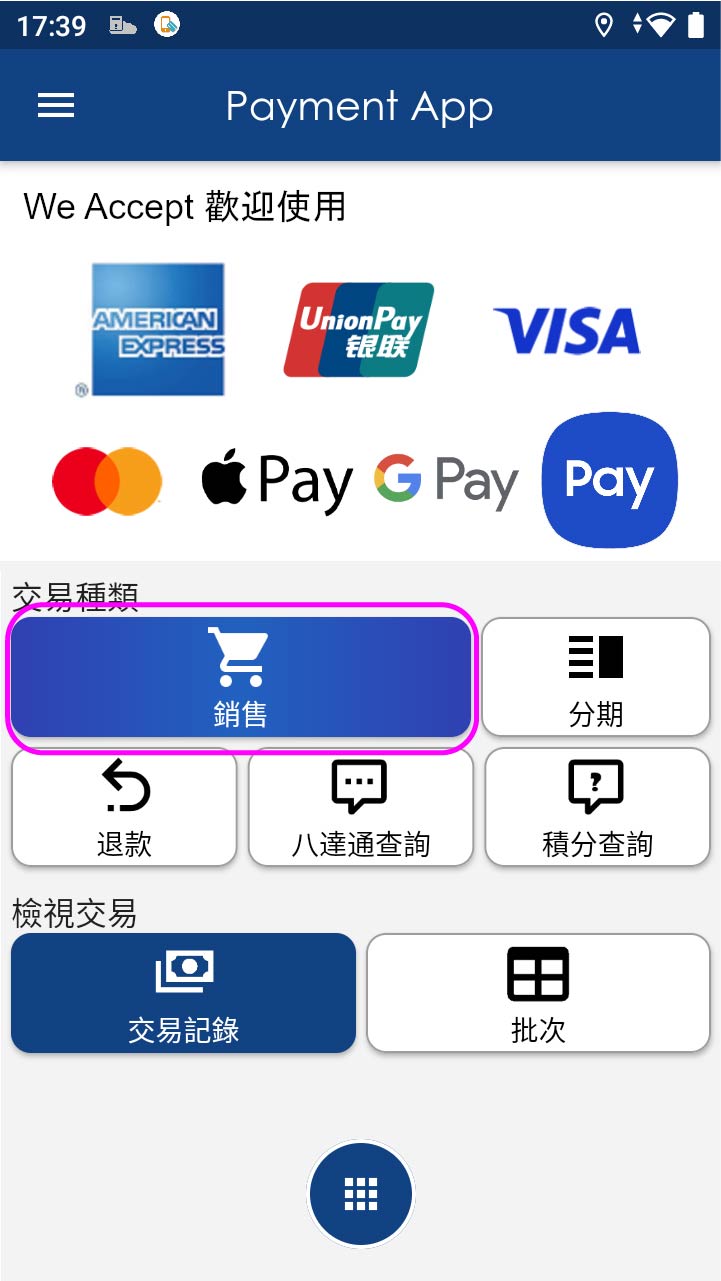

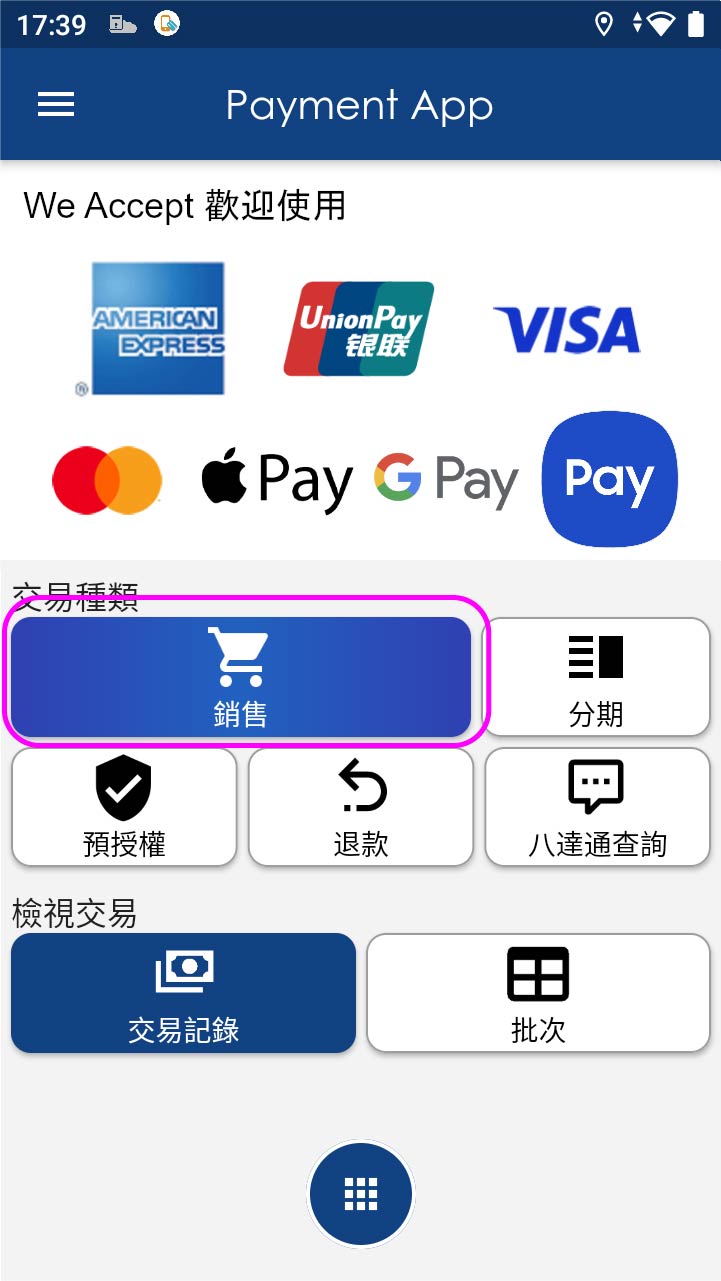

於主目錄按 [銷售]

- 步驟 2 -

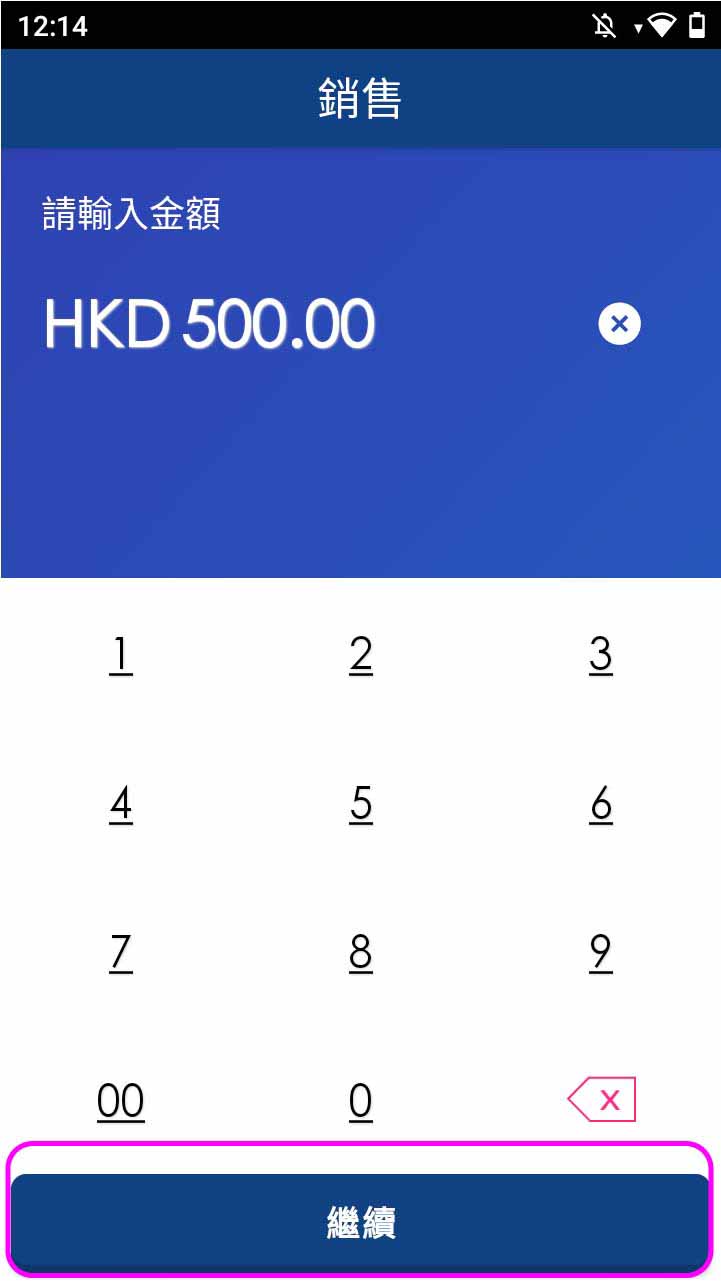

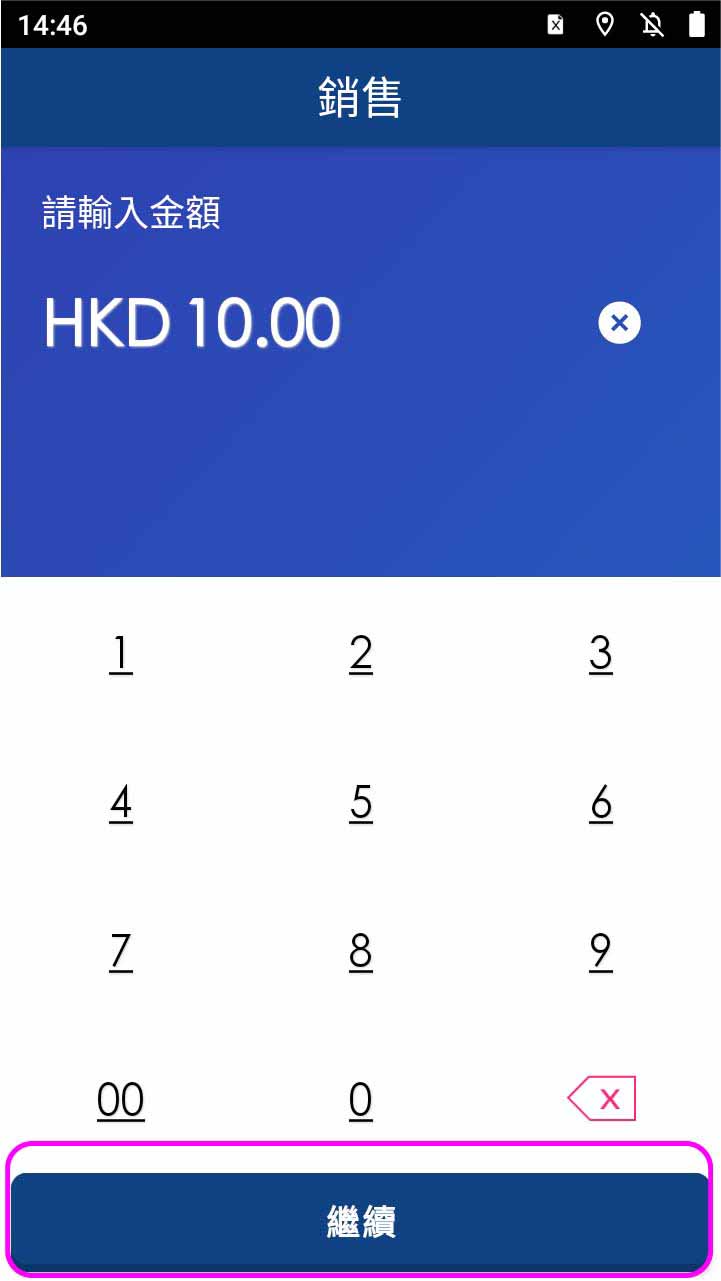

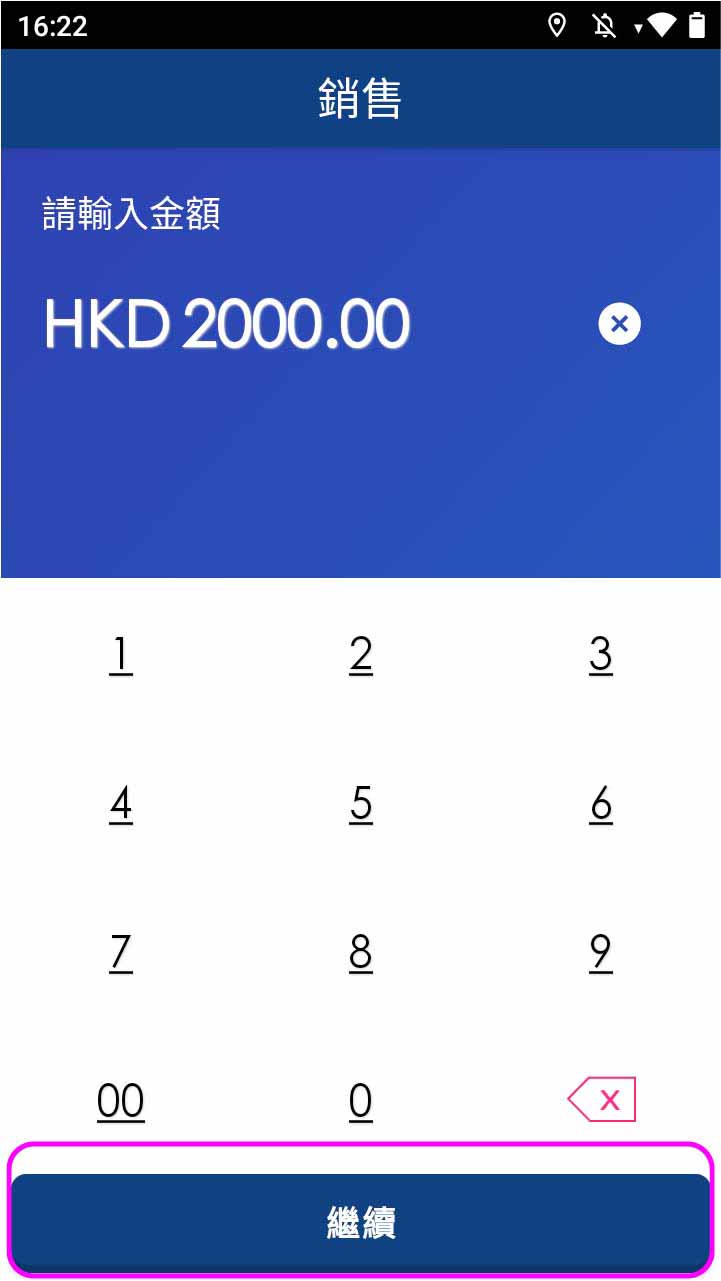

輸入銷售金額，按[繼續]

- 步驟 3 -

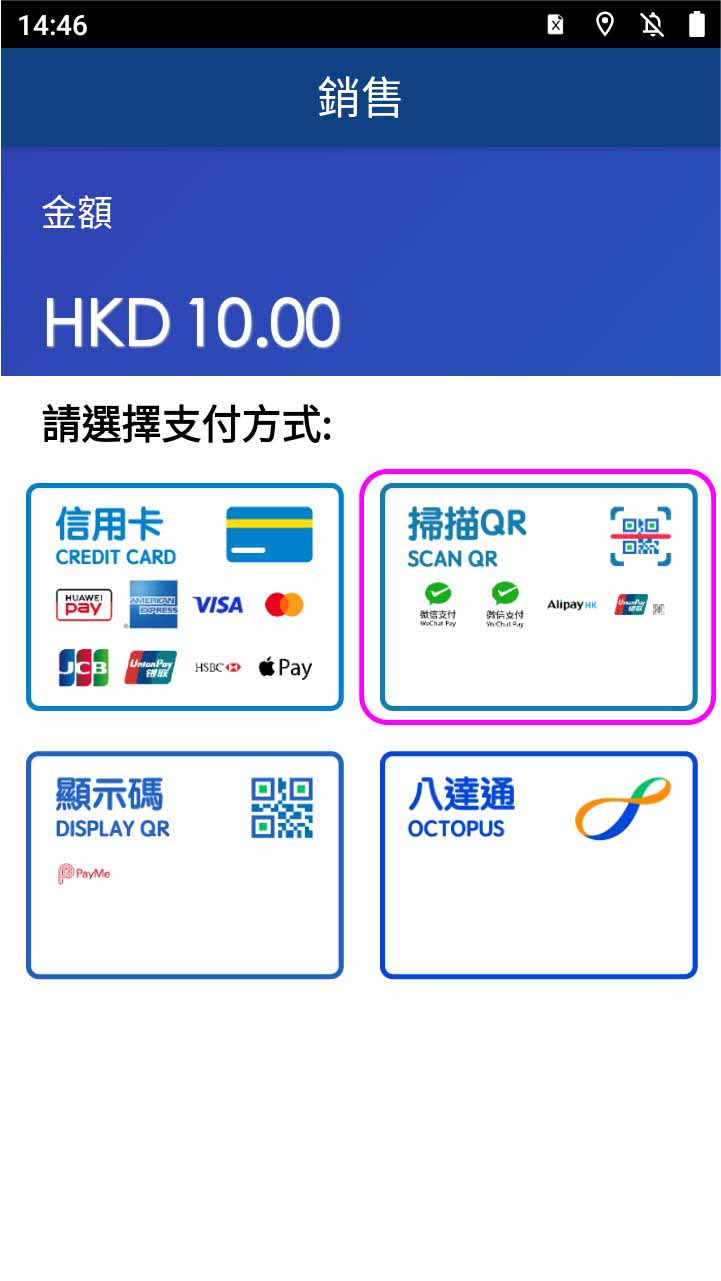

按鍵選擇掃碼支付

- 步驟 4 -

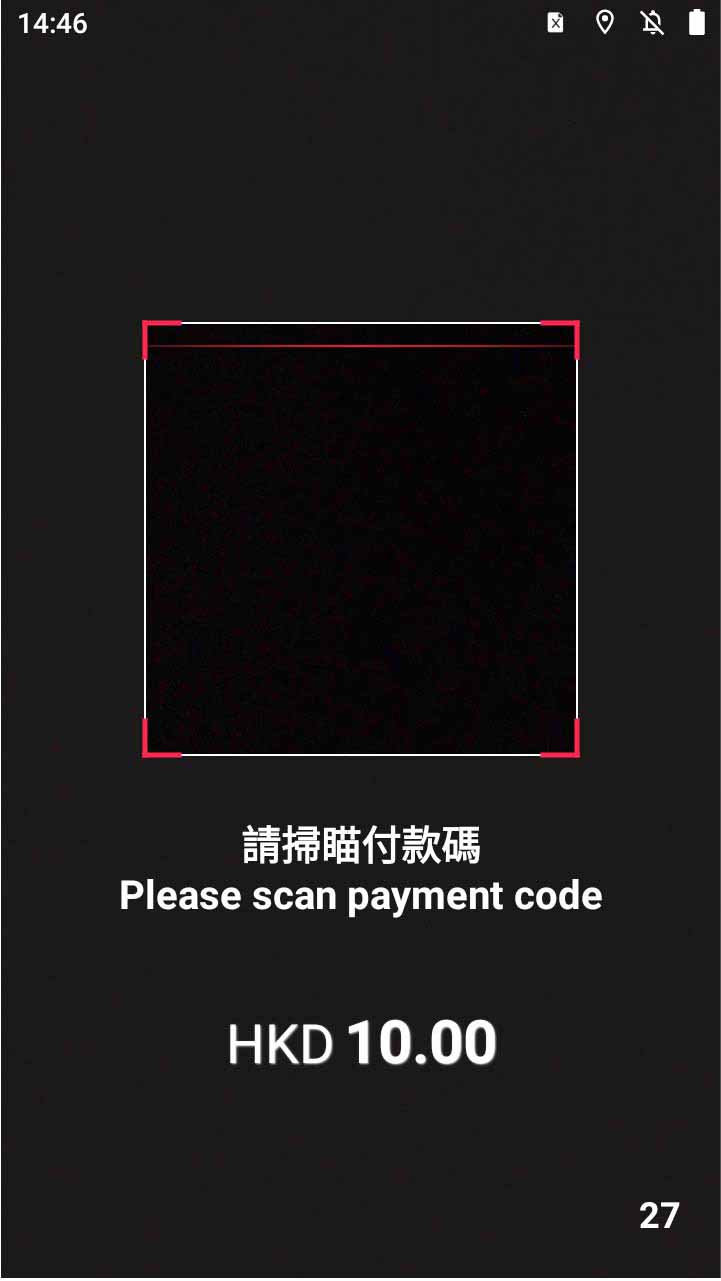

掃描客人手機的付款二維碼

- 步驟5 -

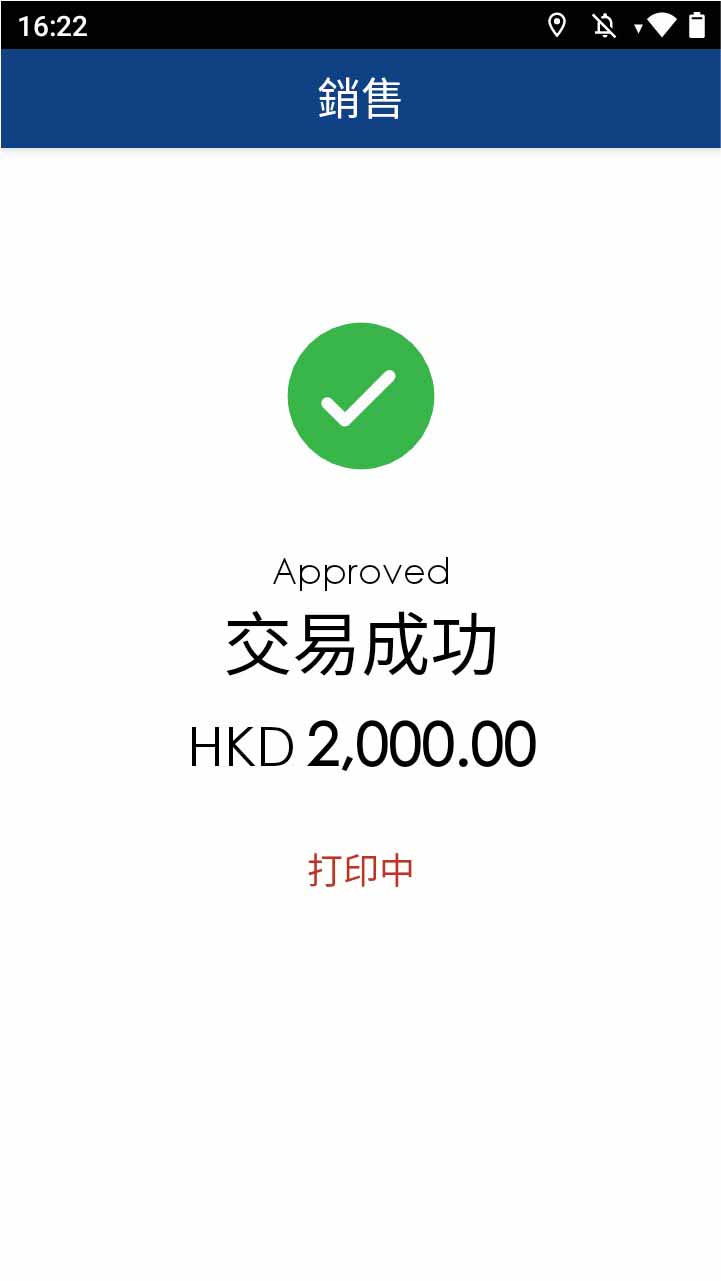

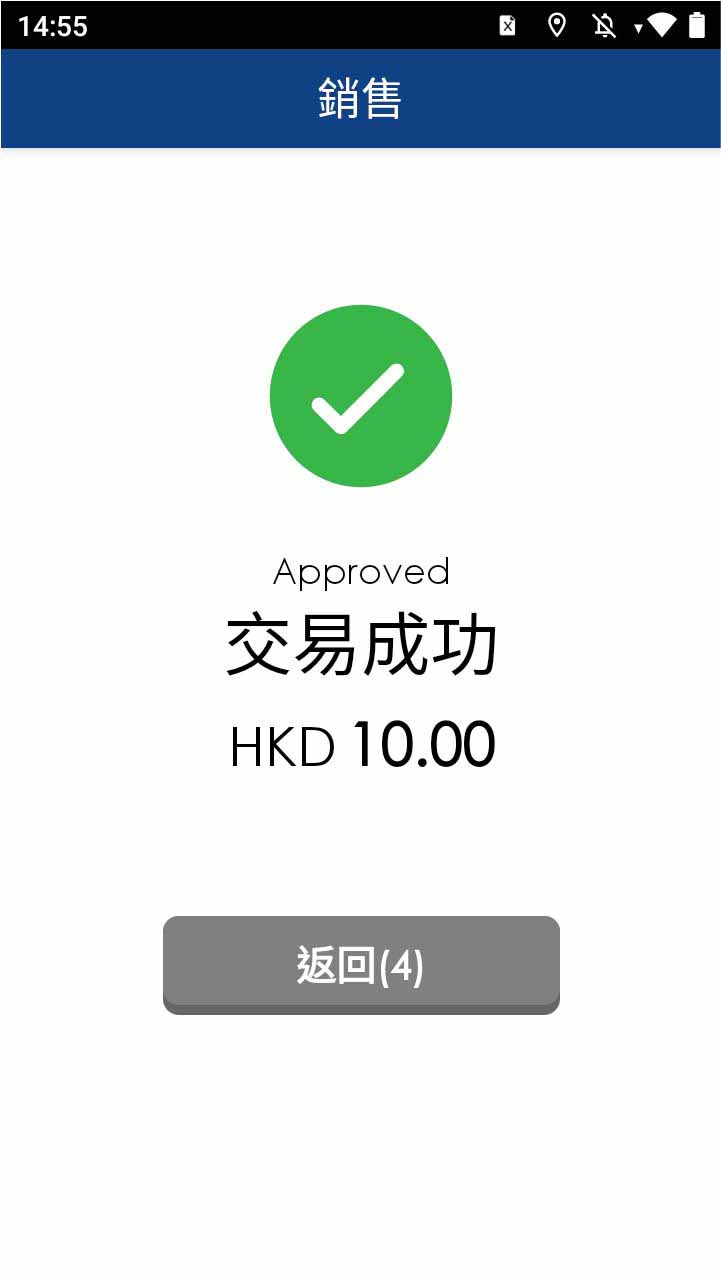

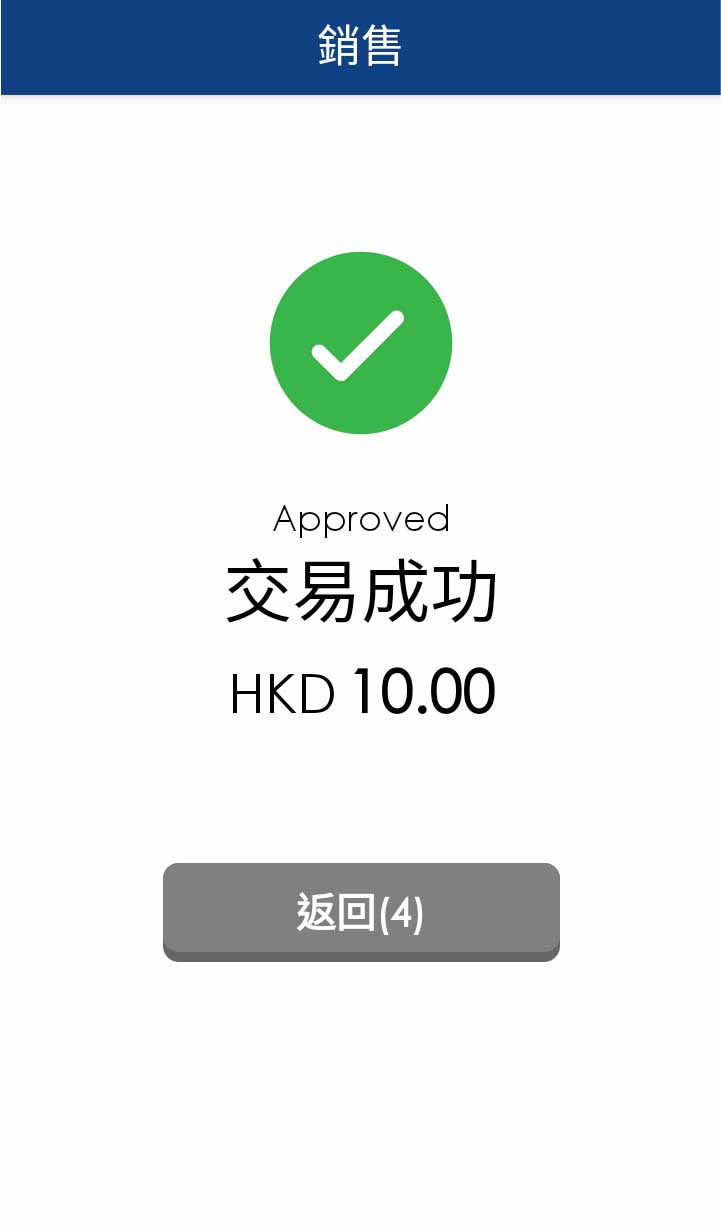

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [銷售]

- 步驟 2 -

輸入銷售金額，按[繼續]

- 步驟3 -

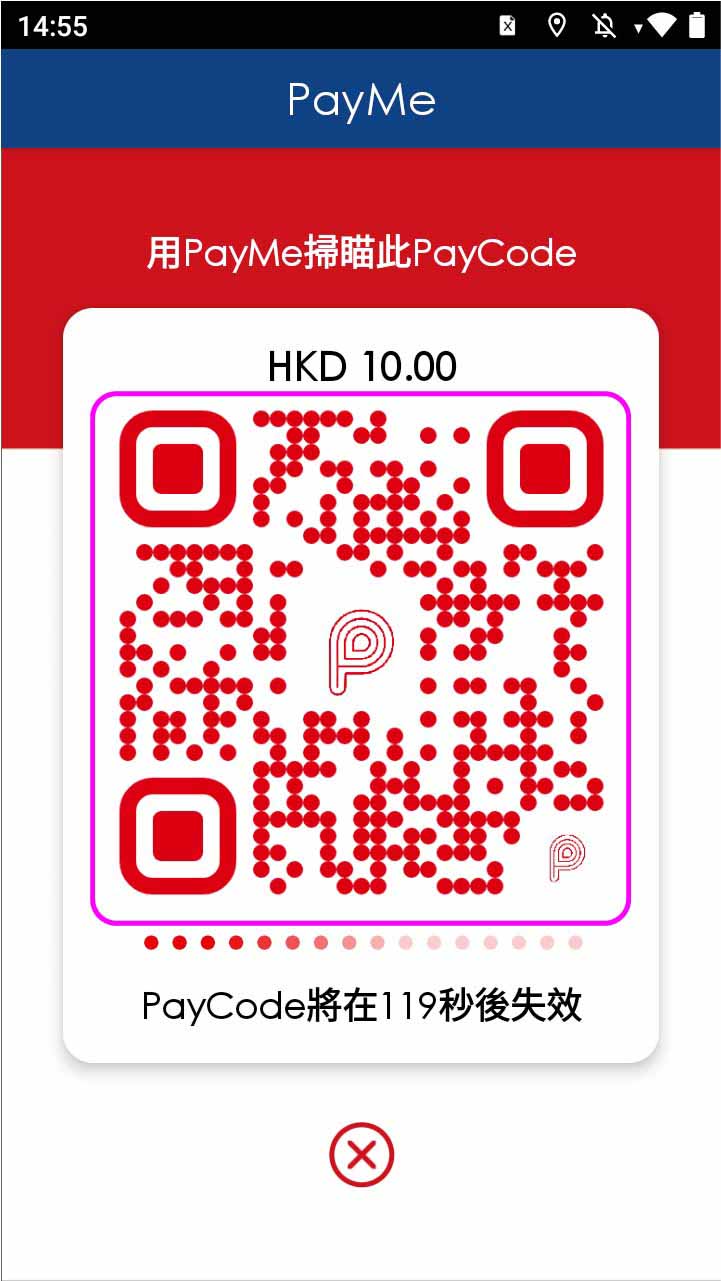

按鍵顯示收款二維碼

- 步驟 4 -

客人手機掃描二維碼及確定付款

- 步驟 5 -

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [銷售]

- 步驟 2 -

輸入銷售金額，按[繼續]

- 步驟3 -

按鍵選擇八達通支付

- 步驟 4 -

把八達通卡拍在感應位置上

- 步驟 5 -

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [銷售]

- 步驟 2 -

輸入銷售金額，按[繼續]

- 步驟 3 -

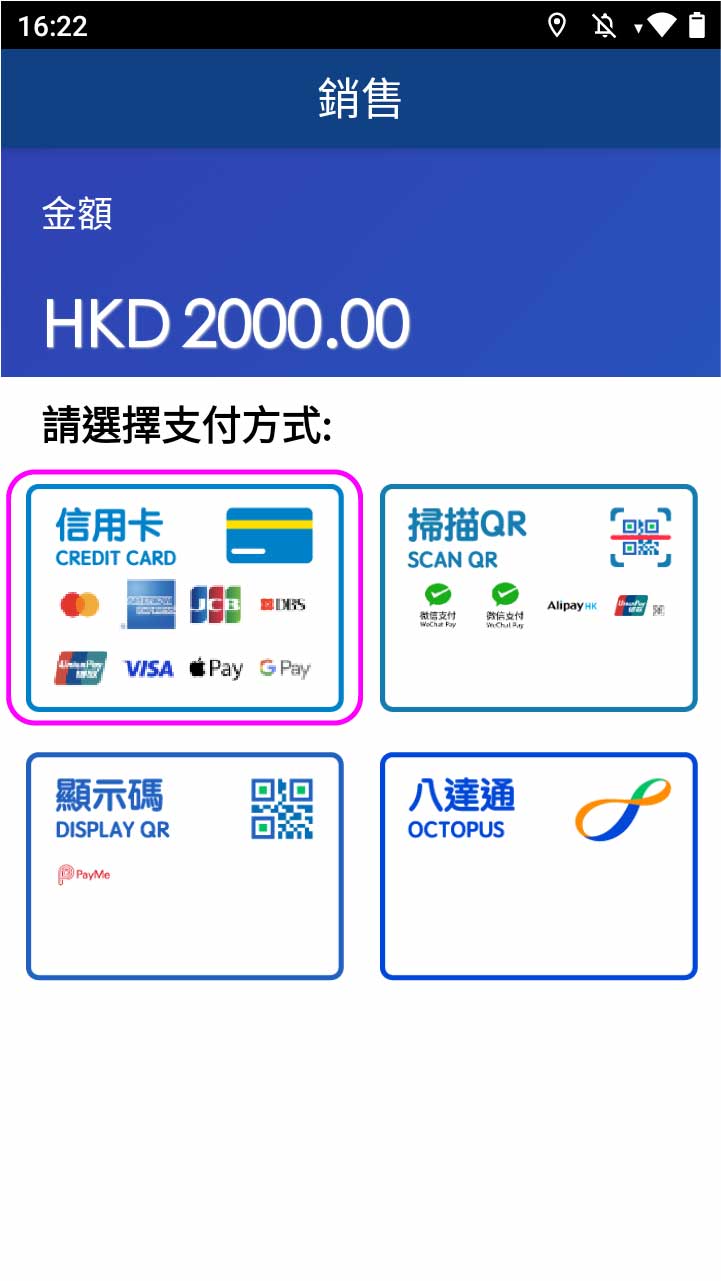

按鍵選擇信用卡支付

- 步驟 4 -

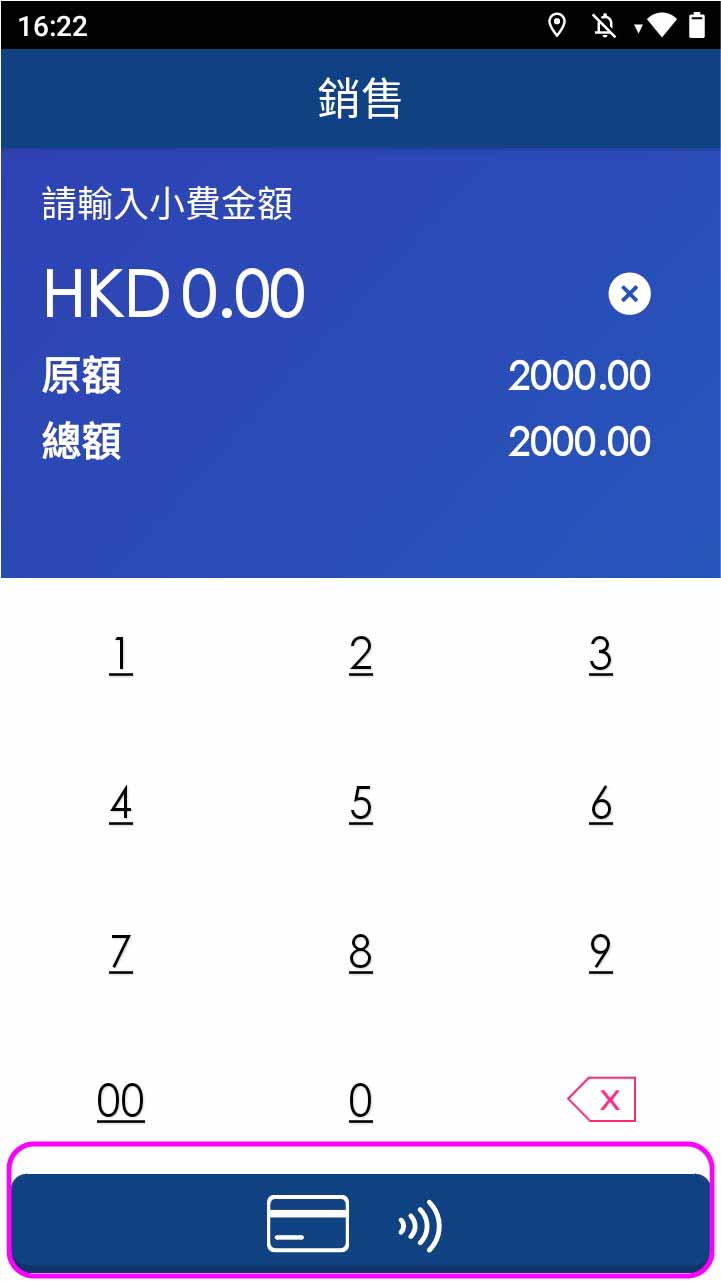

輸入小費金額(如有)，並選擇信用卡支付

- 步驟 5 -

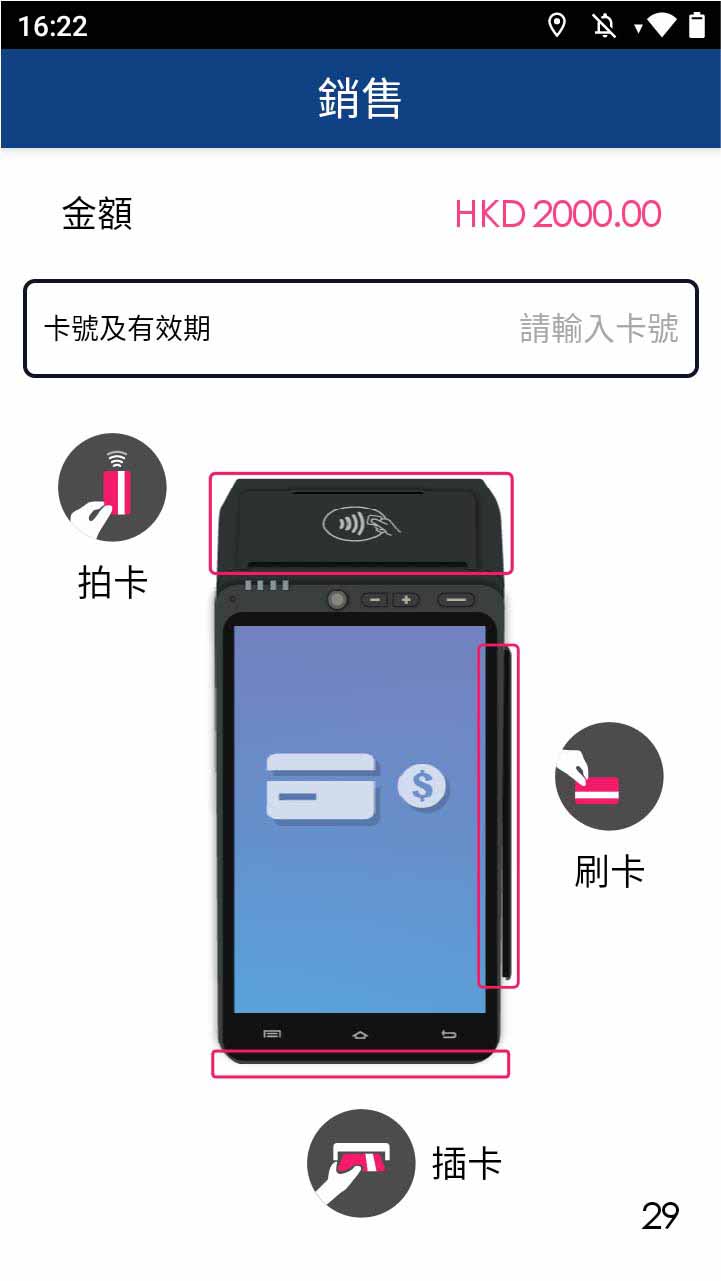

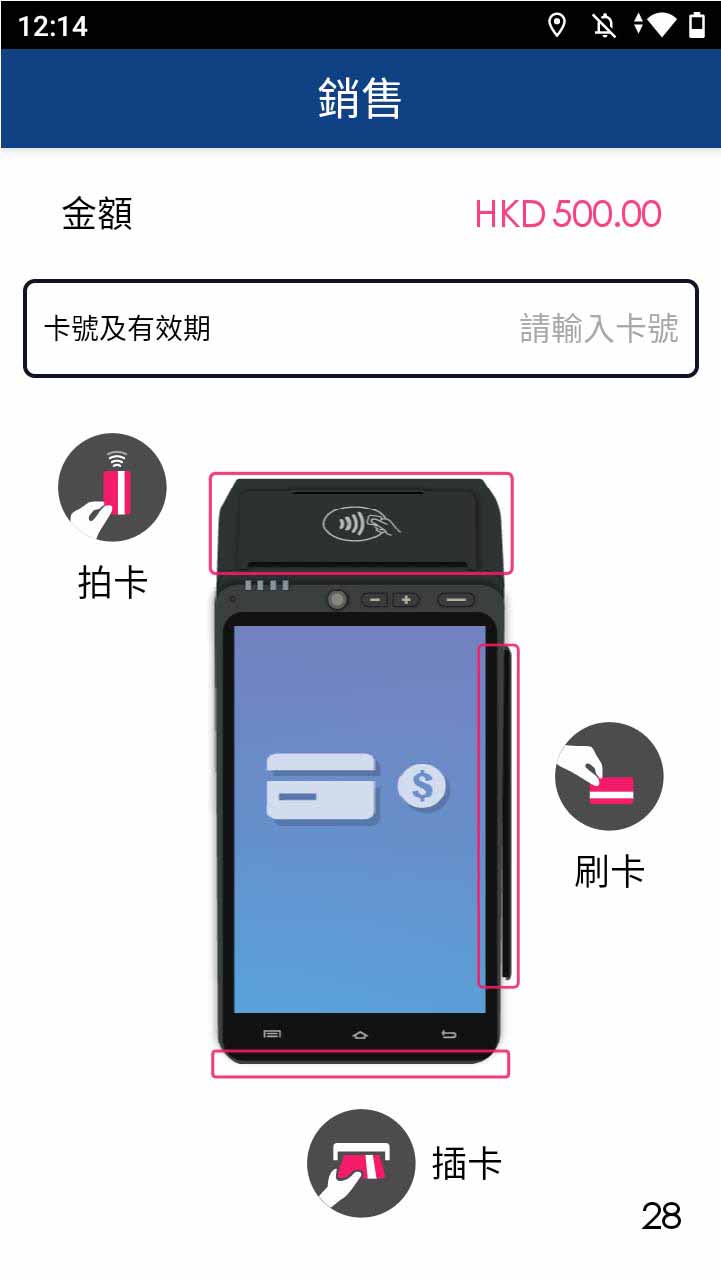

插卡/拍卡/刷卡/流動支付/手動輸入卡號和到期日

- 步驟 6 -

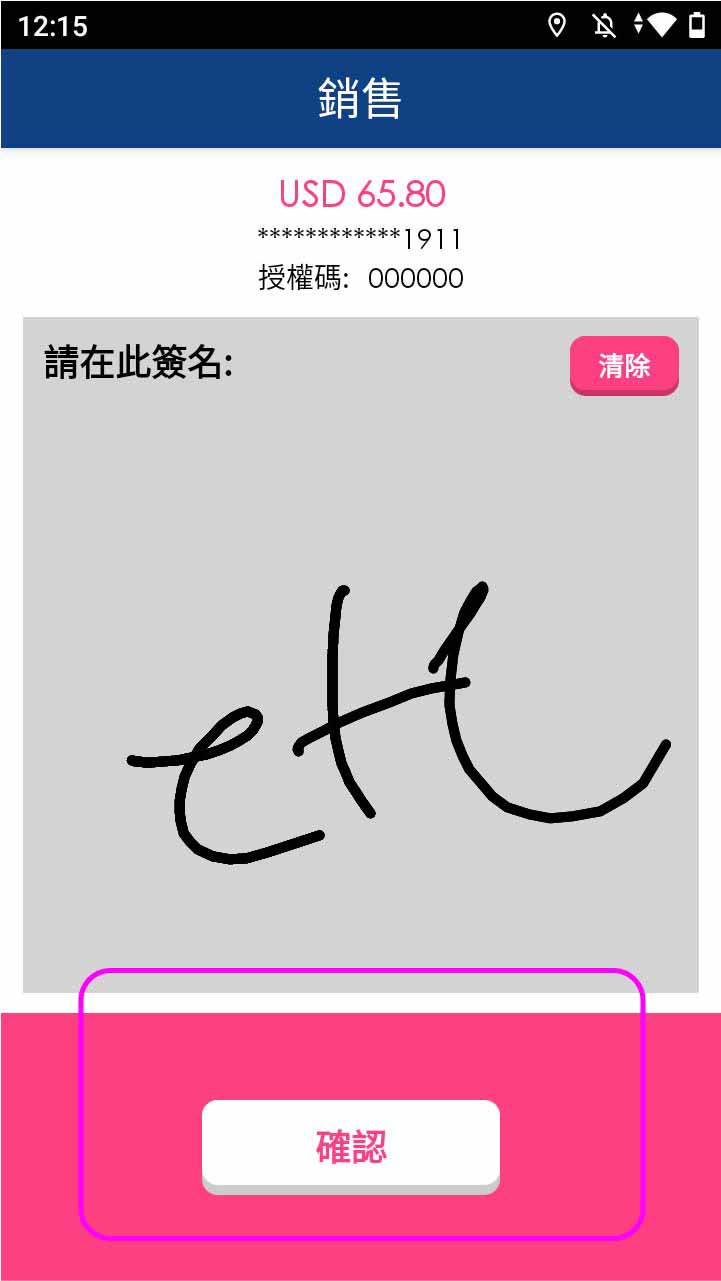

客戶簽名, 然後按[確認] (如需要)

- 步驟 7 -

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按[分期]

- 步驟 2 -

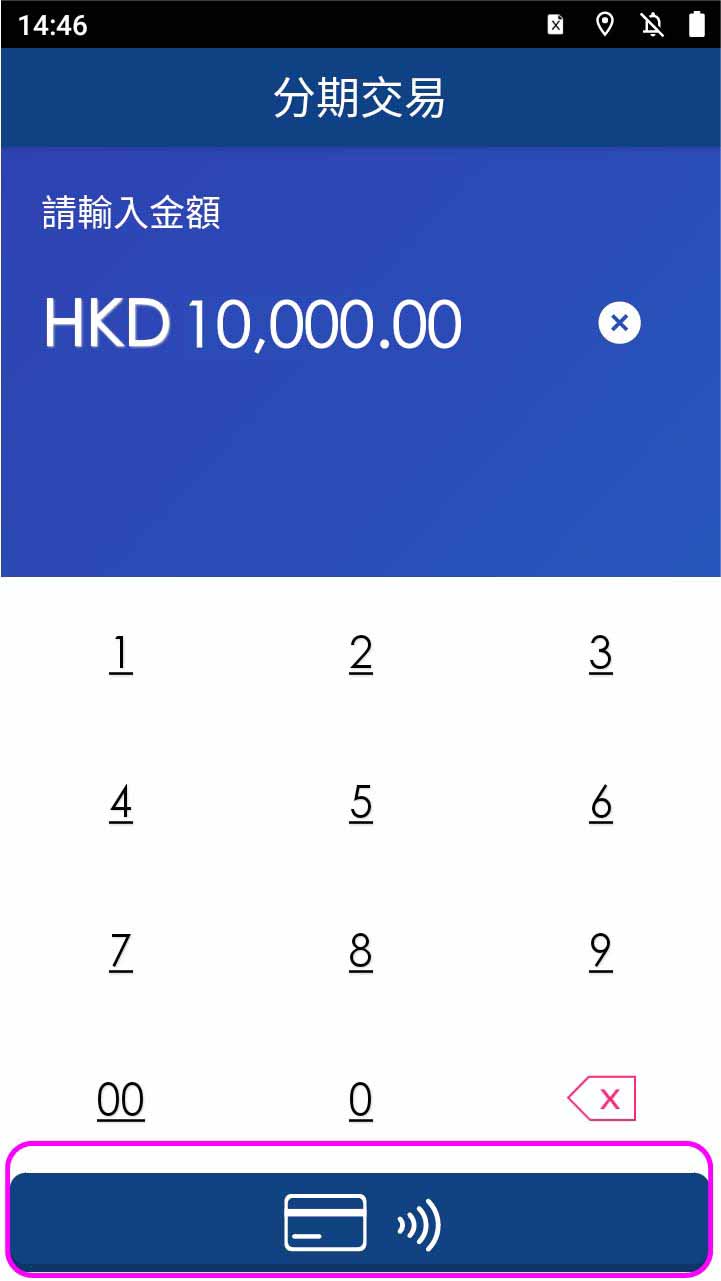

輸入銷售金額，並選擇信用卡支付

- 步驟 3 -

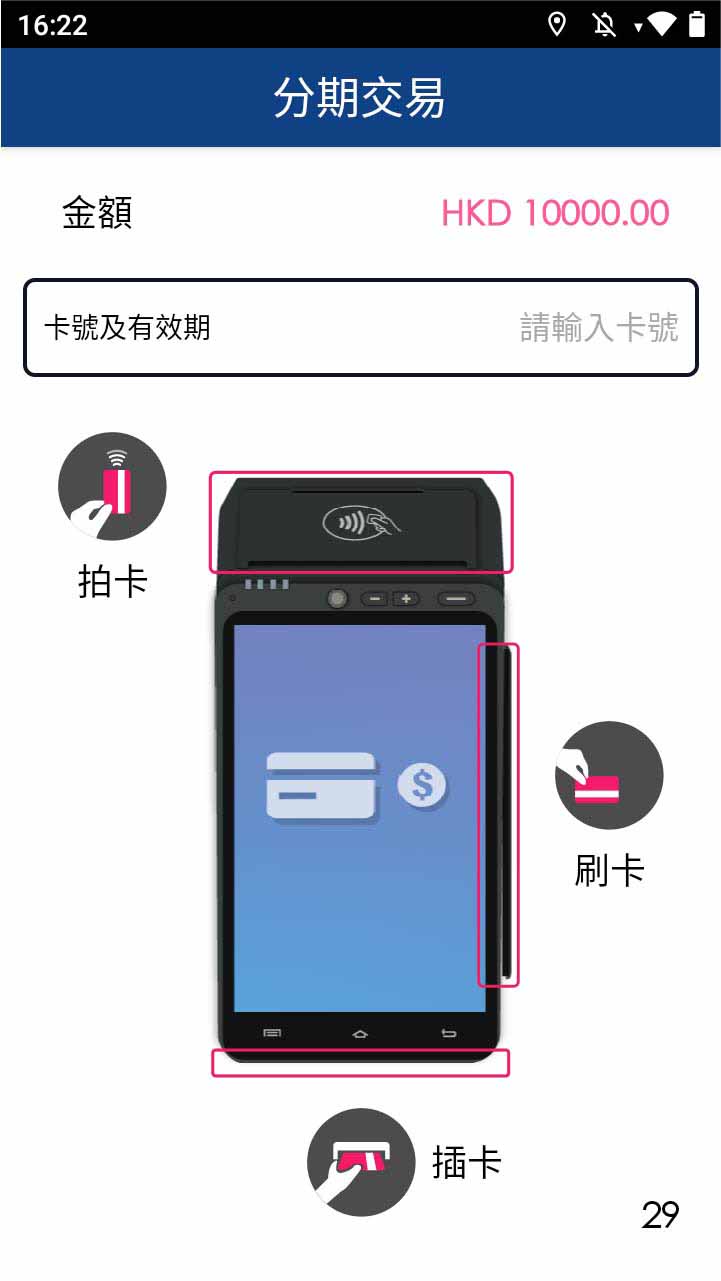

插卡/拍卡/刷卡/流動支付/手動輸入卡號和到期日

- 步驟 4 -

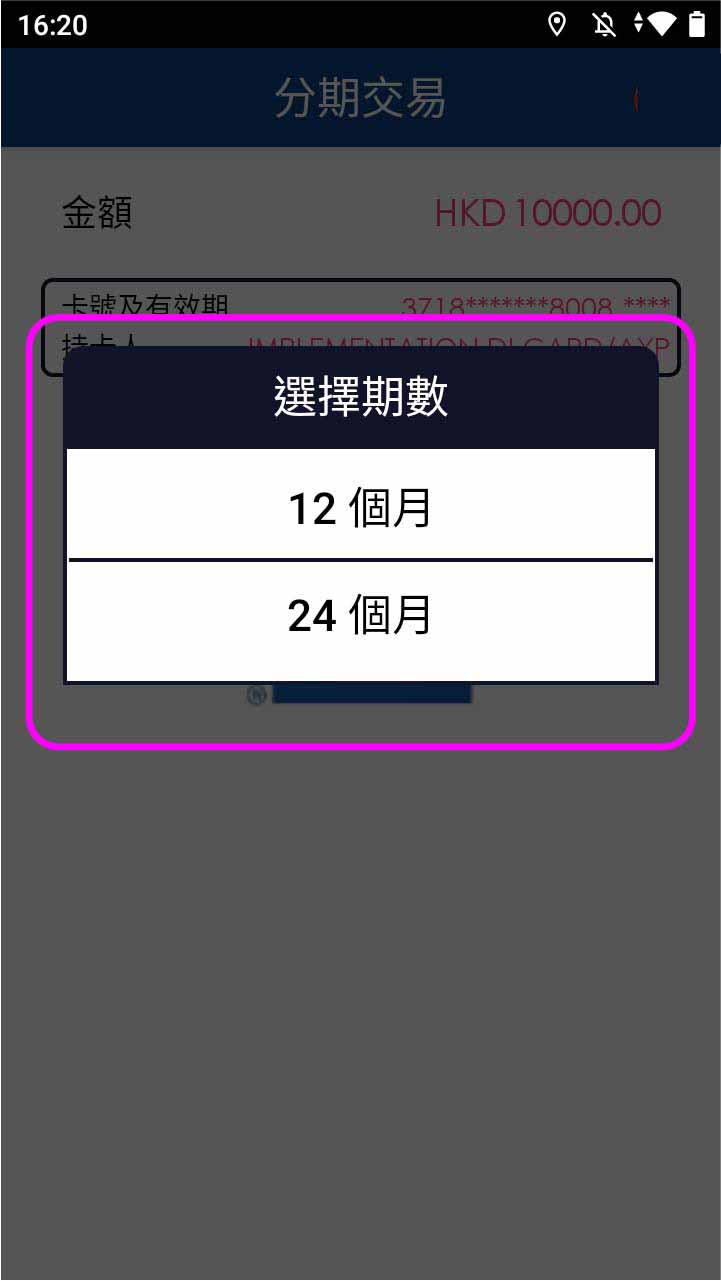

選擇分期計劃及輸入密碼 (如需要)

- 步驟 5 -

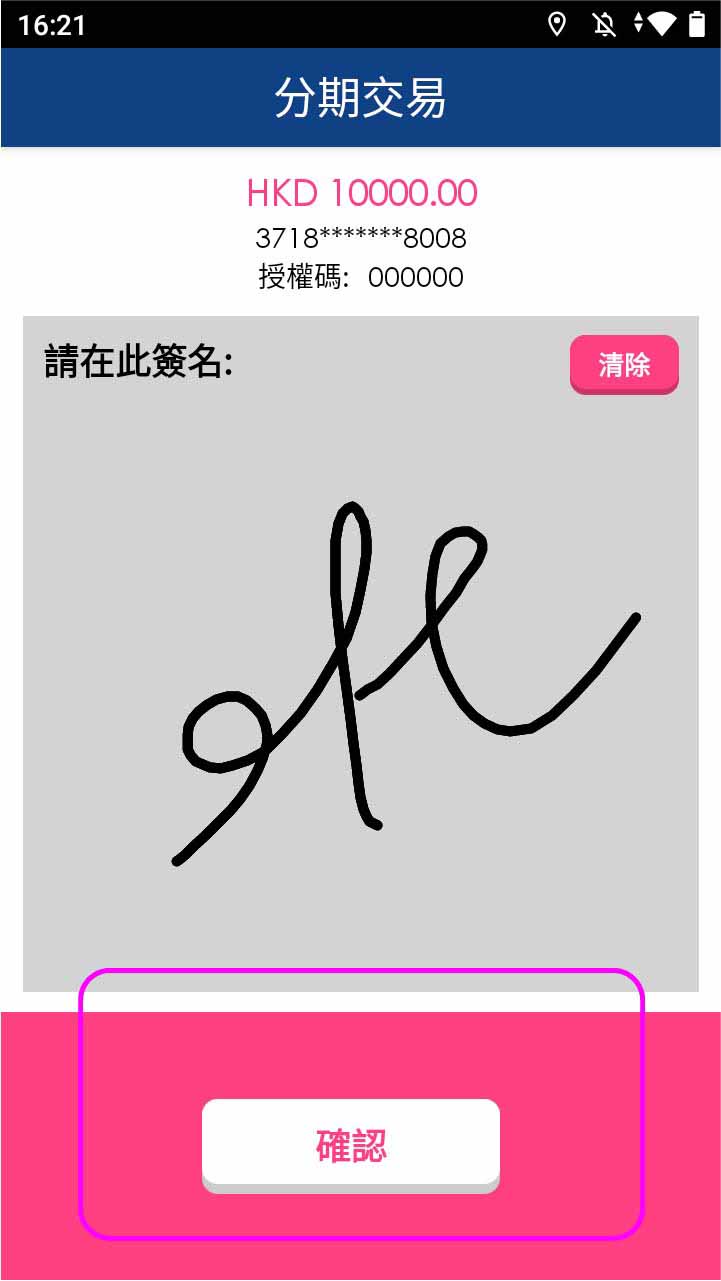

客戶簽名, 然後按[確認] (如需要)

- 步驟 6 -

交易完成，終端機打印單據

- 步驟 1 -

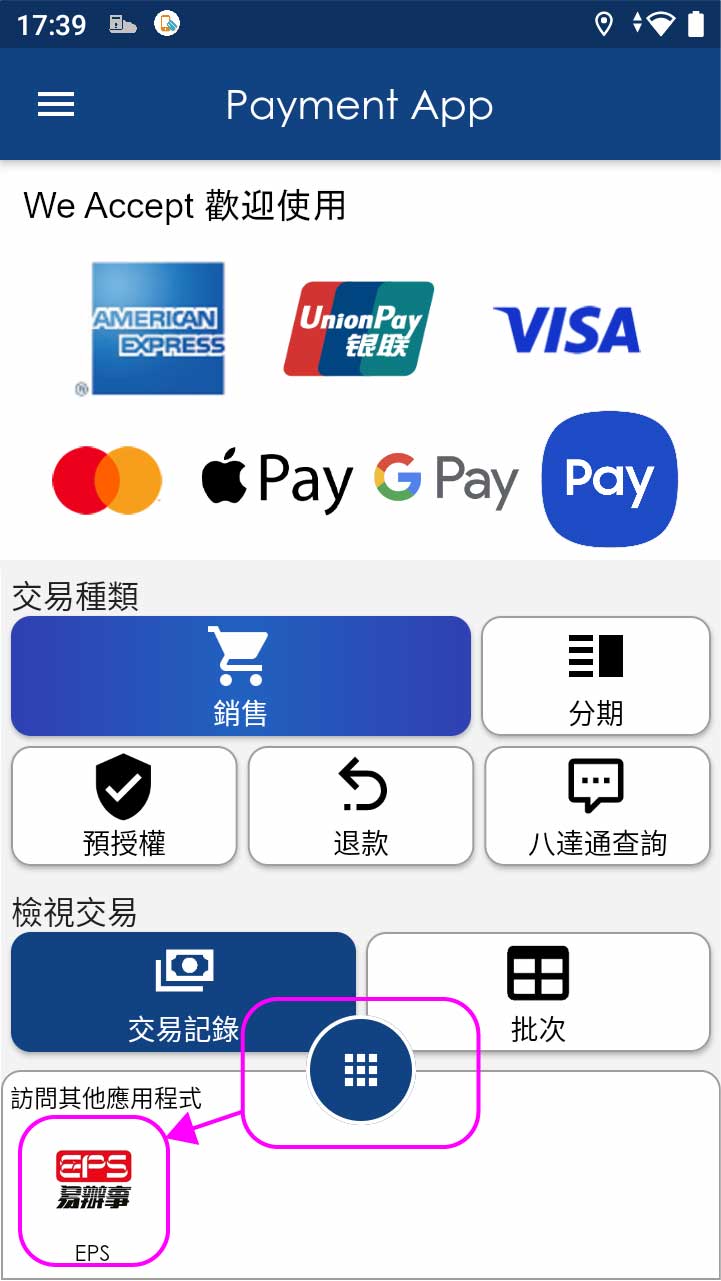

於主目錄按 [9點圖標]，選擇 EPS

- 步驟 2 -

於目錄按[銷售]

- 步驟 3 -

請插卡

- 步驟 4 -

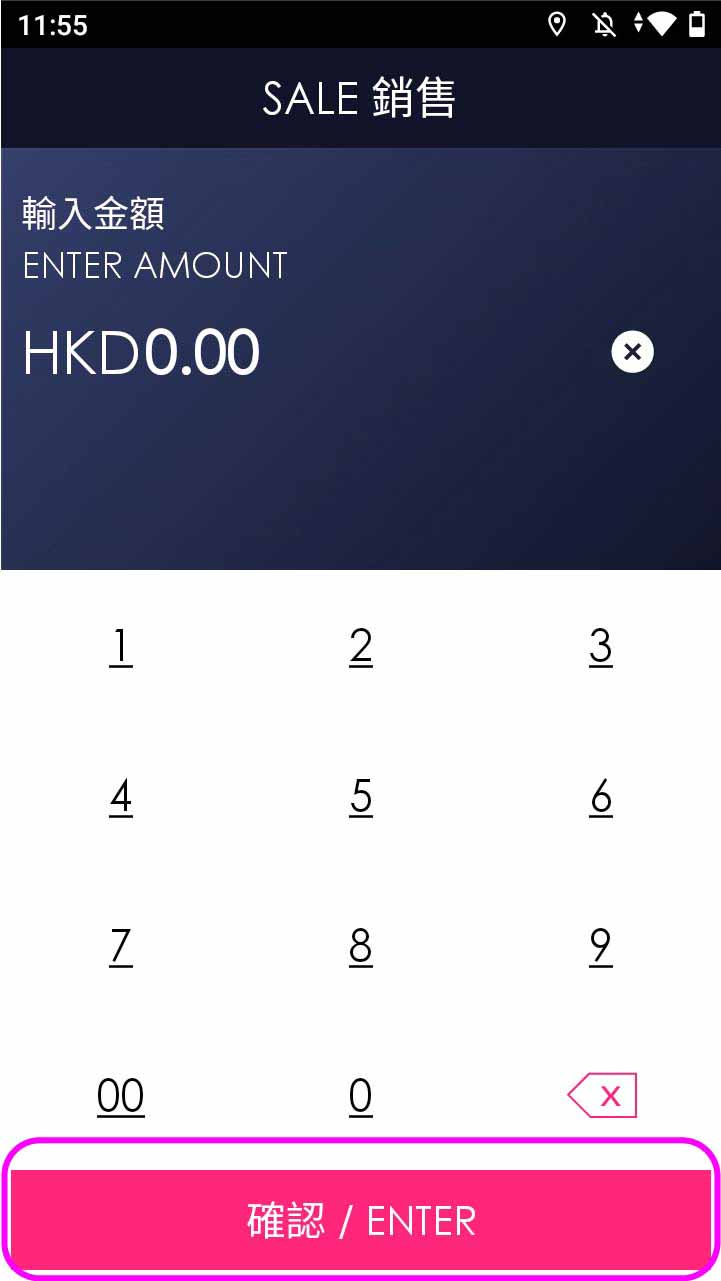

輸入銷售金額，按[確認]

- 步驟 5 -

按[確認]確定金額

- 步驟 6 -

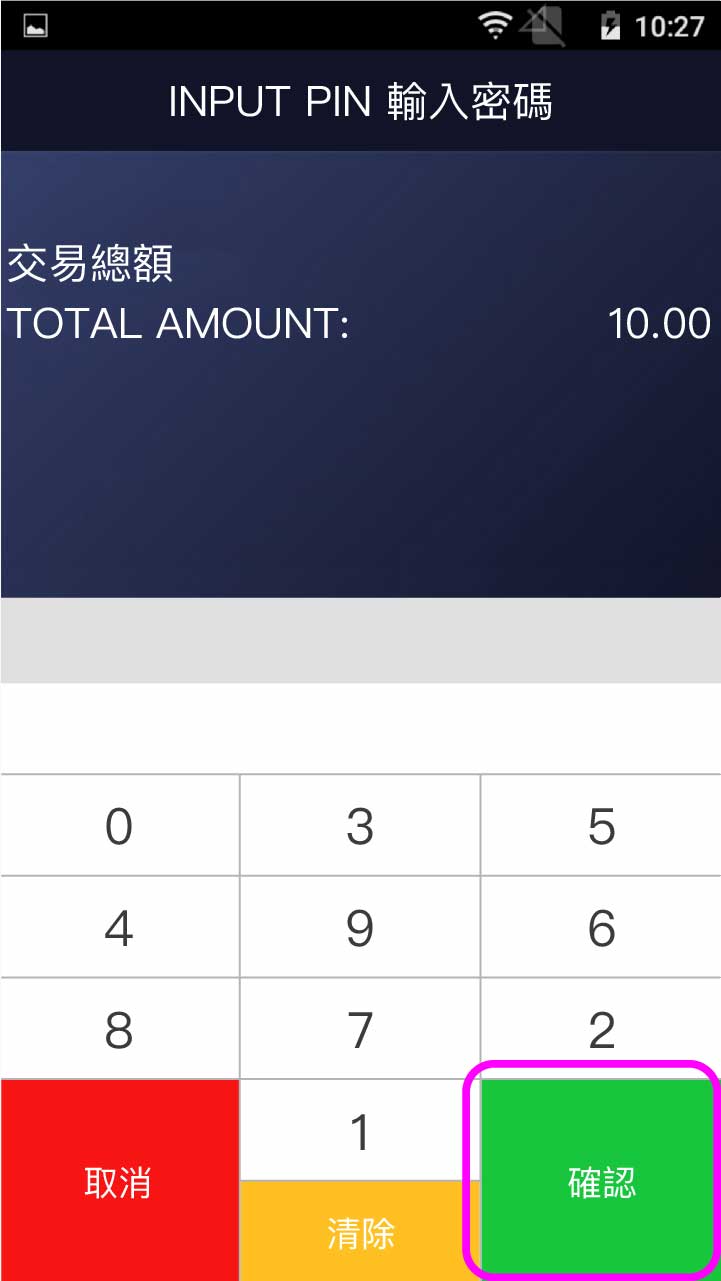

輸入卡密碼，按[確認]

- 步驟 7 -

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [銷售]

- 步驟 2 -

輸入銷售金額，按[繼續]

- 步驟 3 -

選擇信用卡支付

- 步驟 4 -

輸入總額連小費(如有)，並選擇信用卡支付

- 步驟 5 -

插卡/拍卡/刷卡/流動支付/手動輸入卡號和到期日

- 步驟 6 -

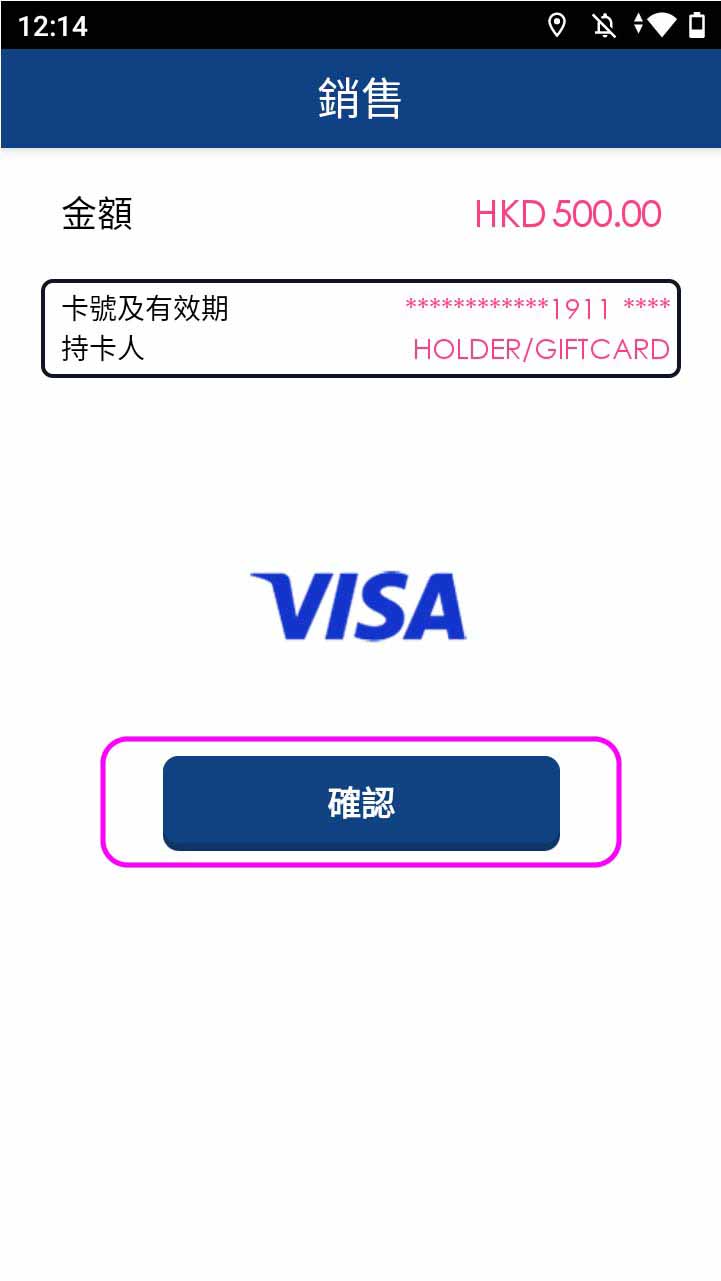

按[確認]

- 步驟 7 -

持卡人選擇交易貨幣

- 步驟 8 -

客戶簽名, 然後按[確認] (如需要)

- 步驟 9 -

交易完成，終端機打印單據

撤銷

- 步驟 1 -

<不適用於八達通>
於主目錄按 [交易記錄]

- 步驟 2 -

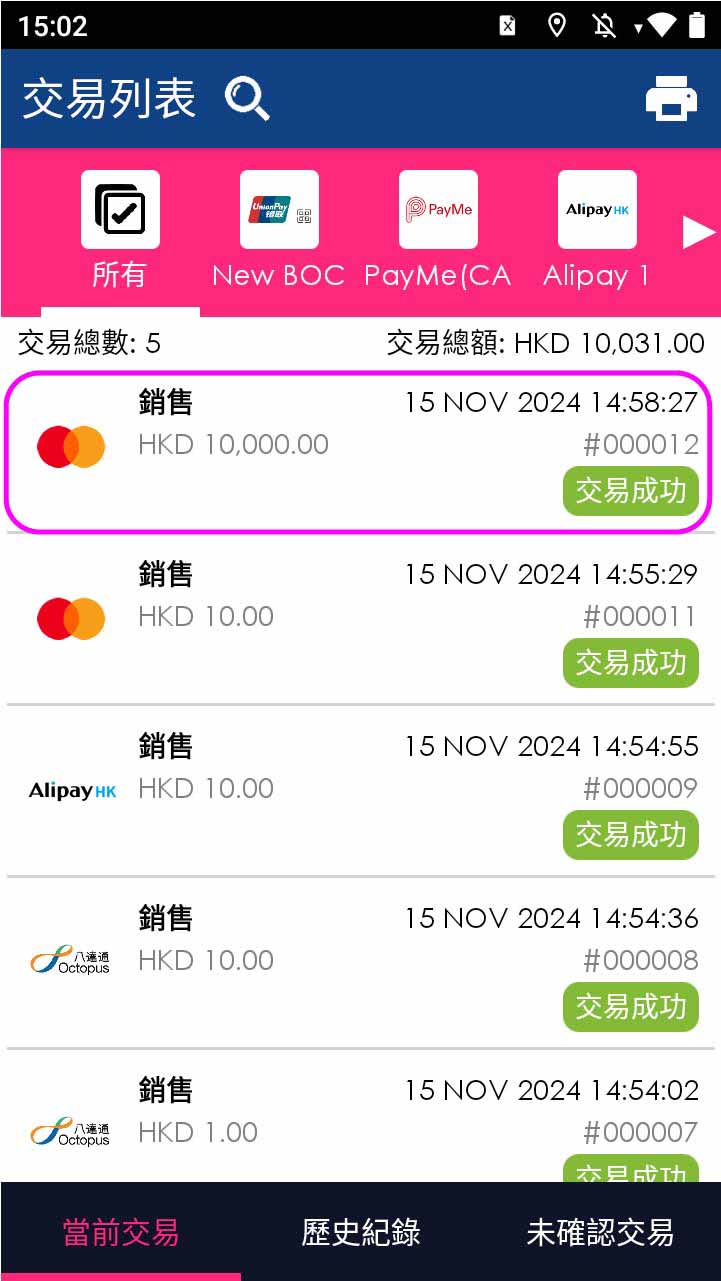

選擇交易記錄

- 步驟 3 -

按 [選項] ，然後按 [撤銷] 按鈕

- 步驟 4 -

輸入操作員密碼，按 [確認]

- 步驟 5 -

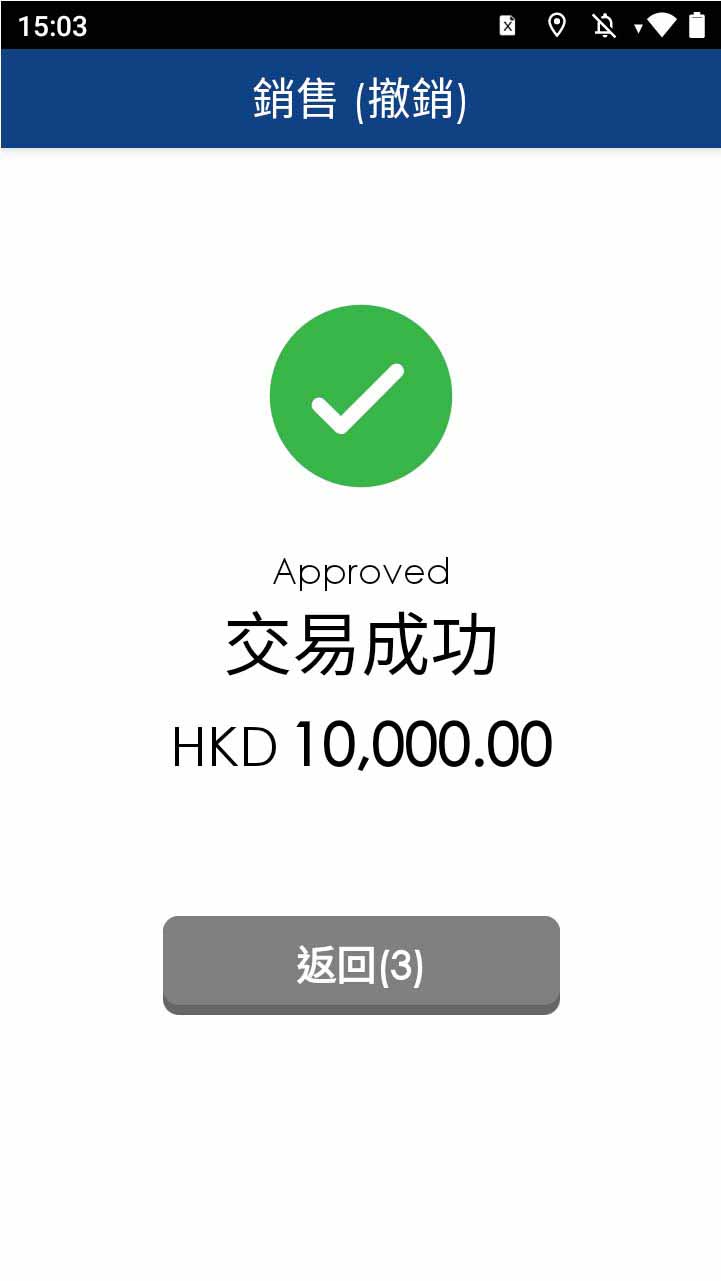

交易完成，終端機打印單據

二維碼交易 -
掃描二維碼

二維碼交易 -
手動輸入

信用咭交易

- 步驟 1 -

於主目錄按 [退款]

- 步驟 2 -

輸入操作員密碼，按[確認]

- 步驟 3 -

輸入金額，並按鍵選擇掃碼支付

- 步驟 4 -

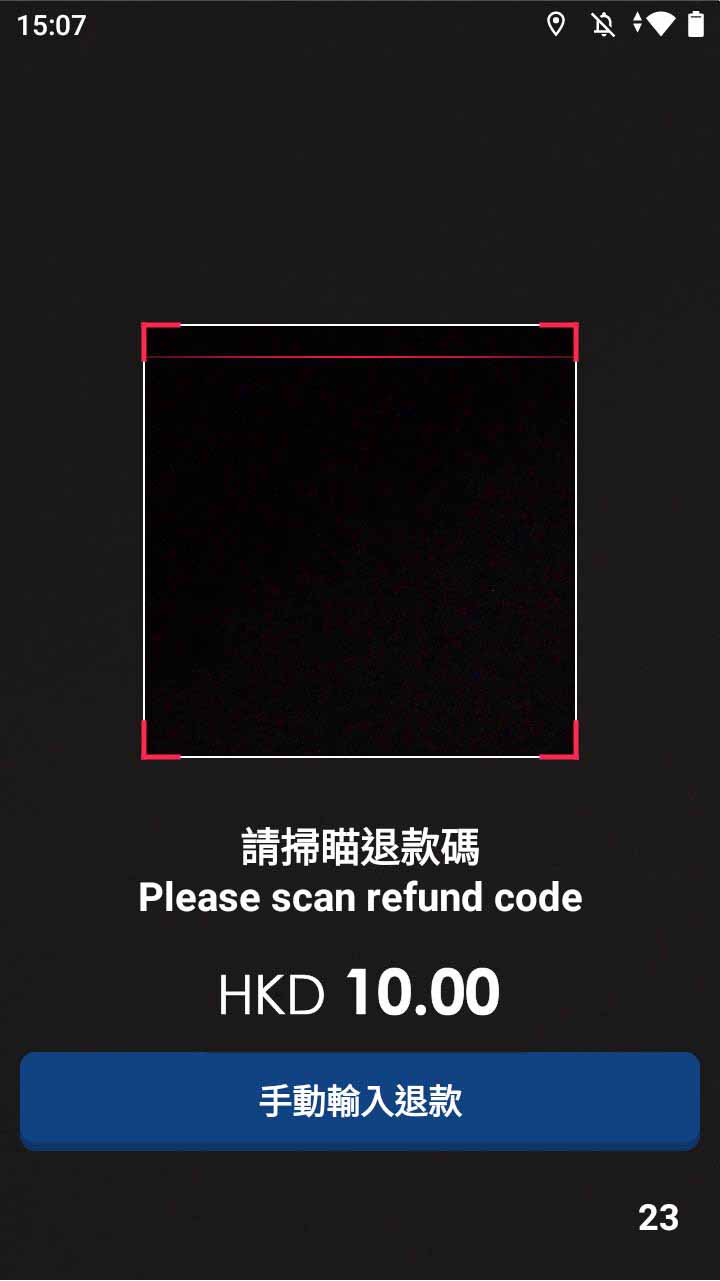

掃描收據上的二維碼

- 步驟 5 -

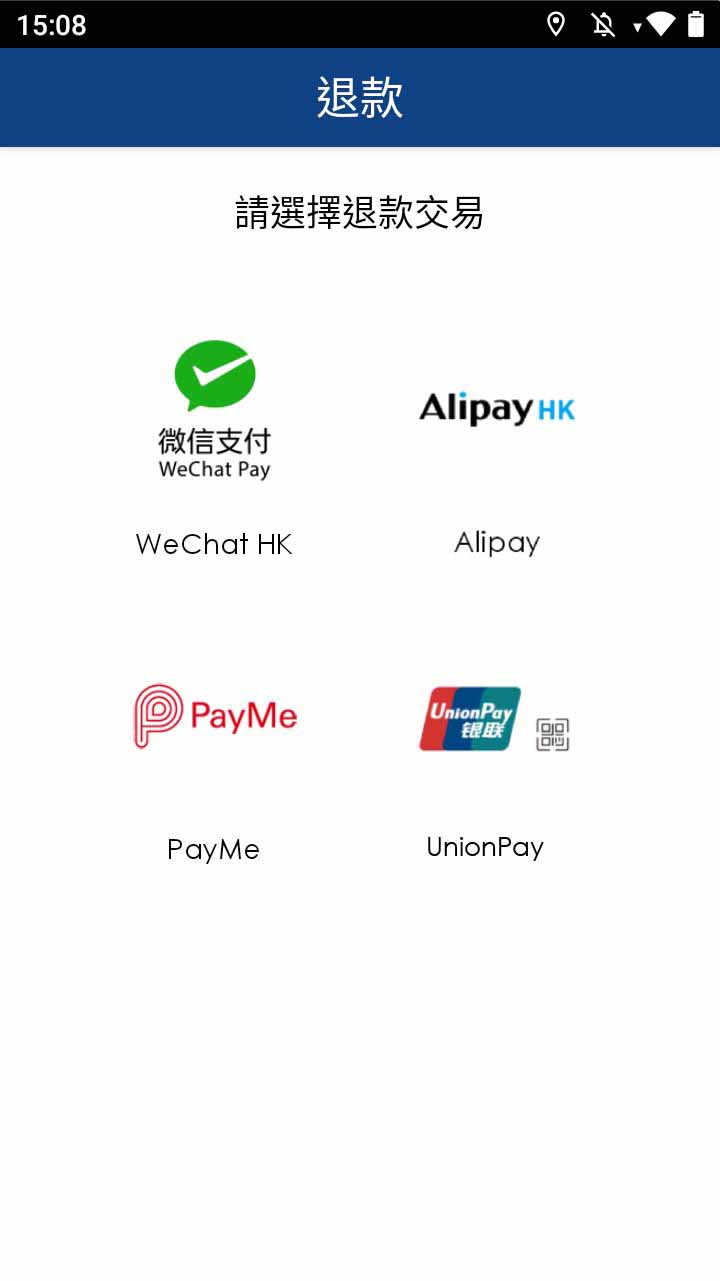

選擇退款交易方式

- 步驟 6 -

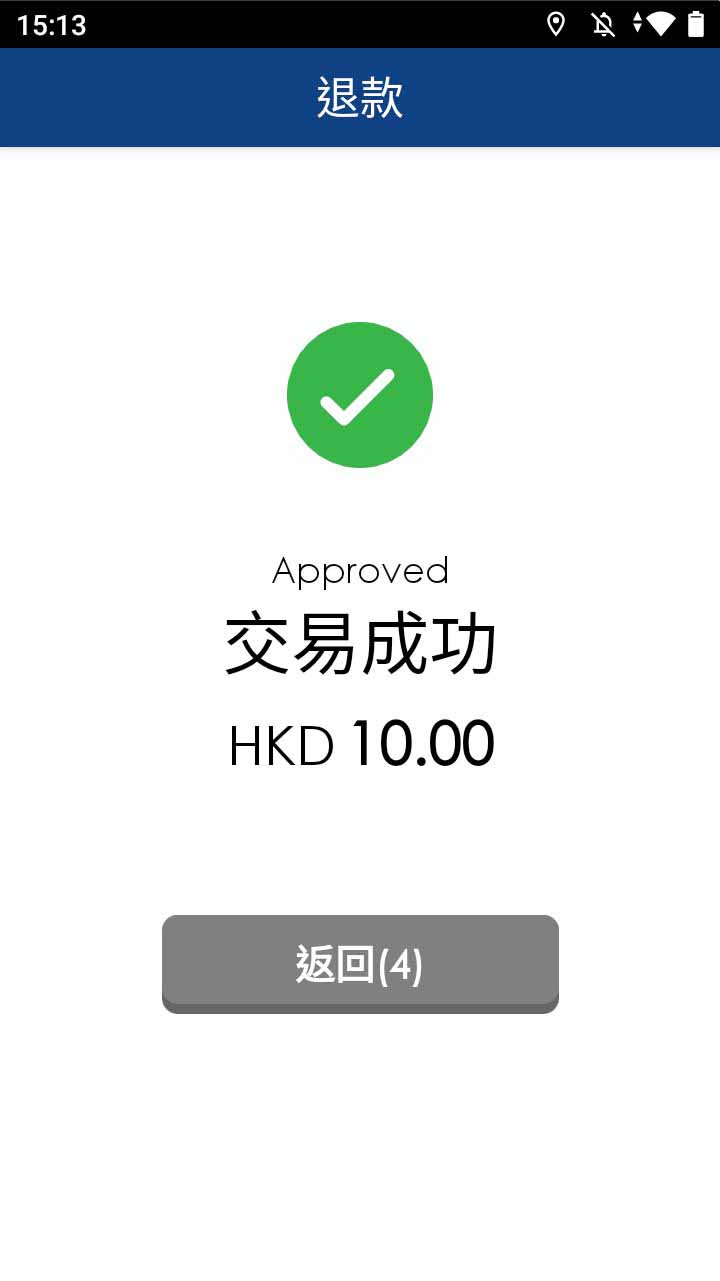

交易完成, 終端機打印單據

- 步驟 1 -

於主目錄按 [退款]

- 步驟 2 -

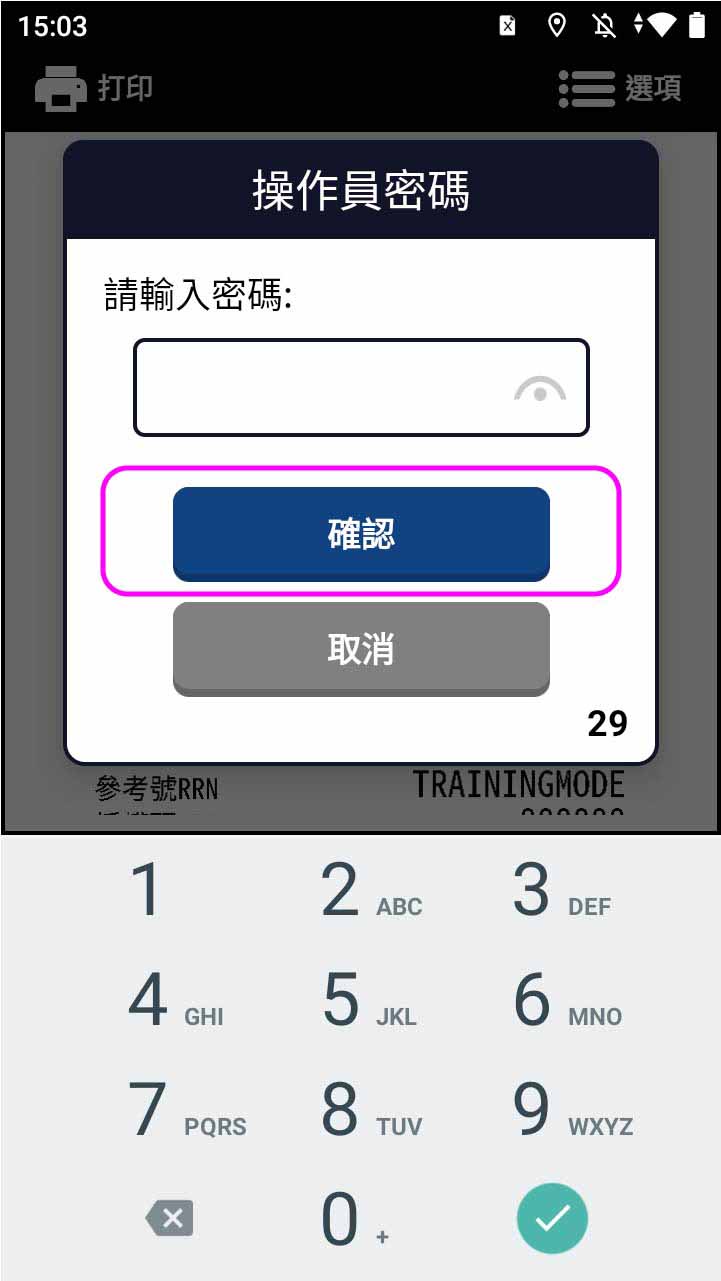

輸入操作員密碼，按 [確認]

- 步驟 3 -

輸入金額，並按鍵選擇掃碼支付

- 步驟 4 -

選擇[手動輸入退款]

- 步驟 5 -

選擇退款交易方式

- 步驟 6 -

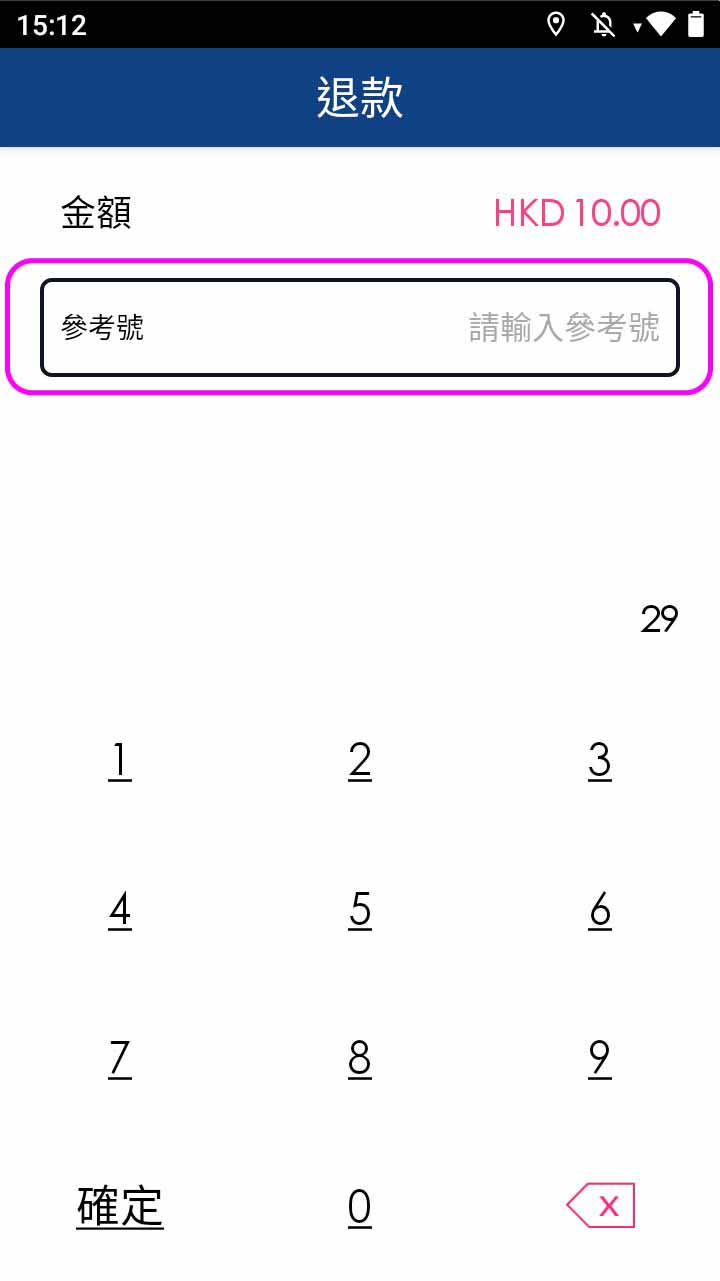

輸入12位數的參考號碼(在銷售收據或交易記錄)，然後按[確定]

- 步驟 7 -

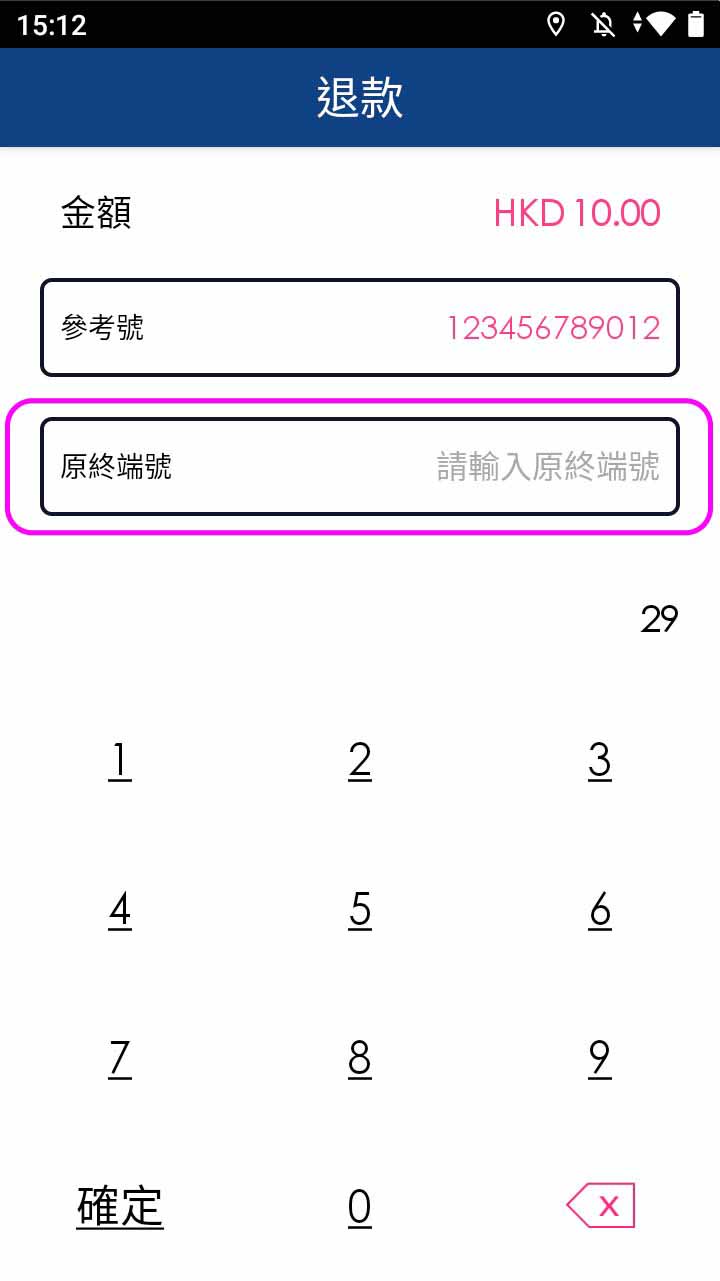

輸入8位數的原始終端機號碼，按[確定]

- 步驟 8 -

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [退款]

- 步驟 2 -

輸入操作員密碼，按 [確認]

- 步驟 3 -

輸入金額, 並按鍵選擇信用卡支付

- 步驟 4 -

插卡/拍卡/刷卡/流動支付/手動輸入卡號和到期日

- 步驟 5 -

持卡人選擇交易貨幣 (如有外幣戶口)

- 步驟6 -

交易完成，終端機打印單據

未確認交易查詢

- 步驟 1 -

於主目錄按 [交易記錄]

- 步驟 2 -

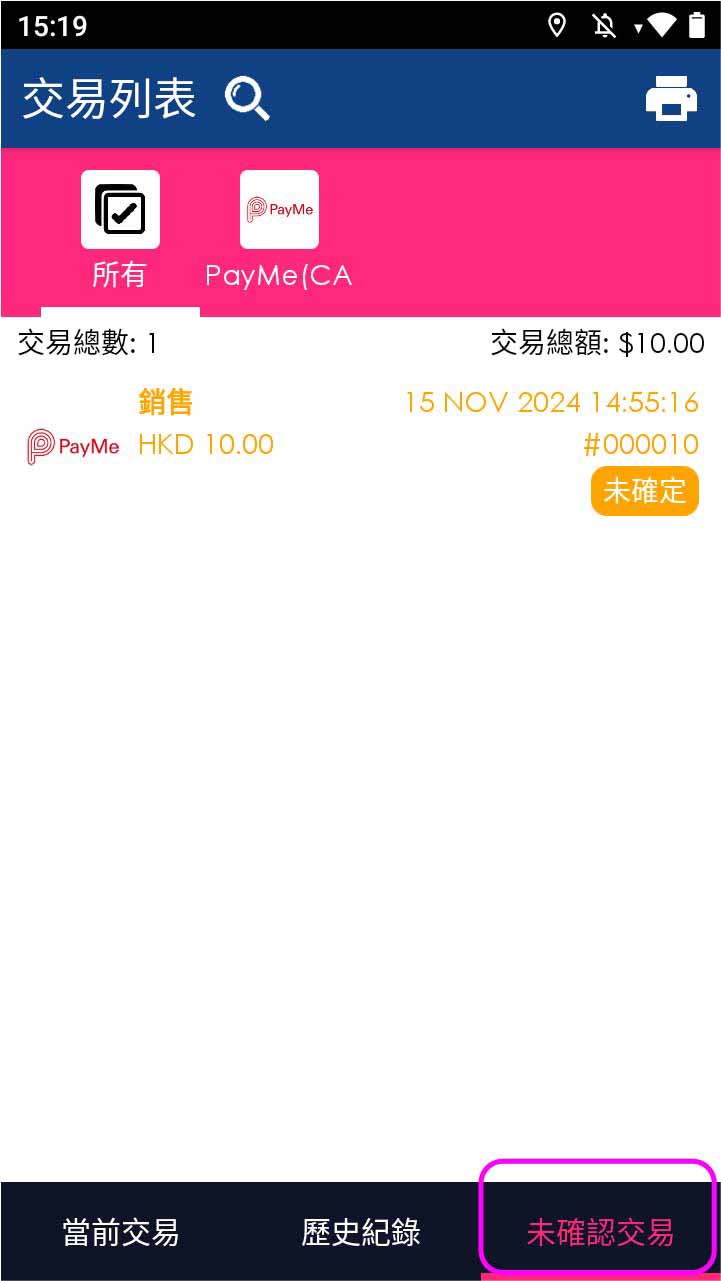

選擇 [未確認交易] 頁

- 步驟 3 -

選擇交易記錄

- 步驟 4 -

在對話框中按 [確認]

- 步驟 5 -

交易完成，終端機打印單據

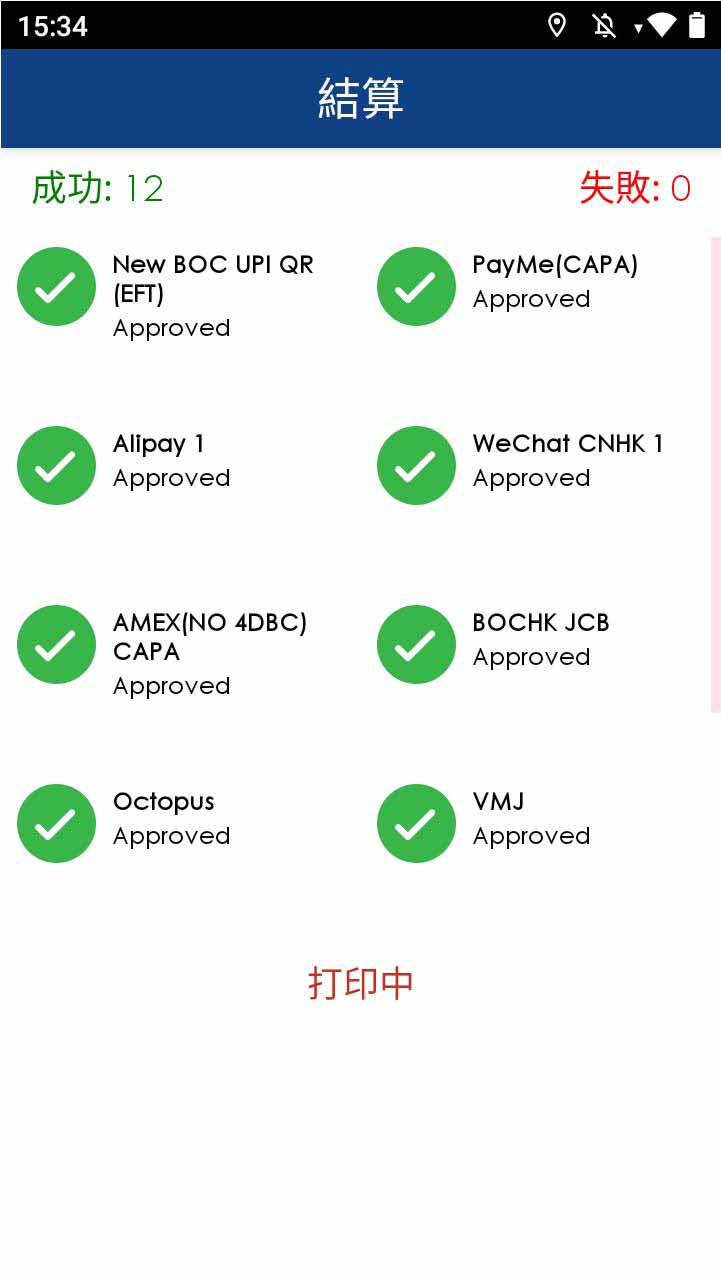

全部結算

單一結算

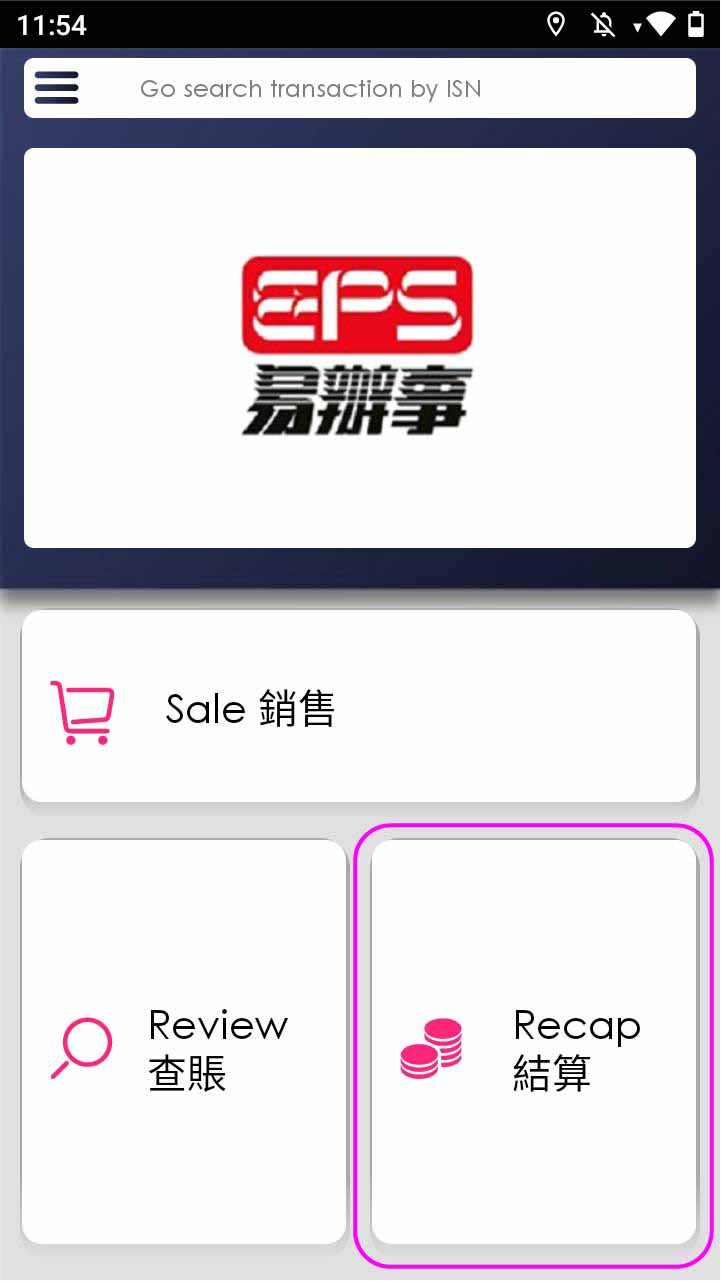

易辨事結算

- 步驟 1 -

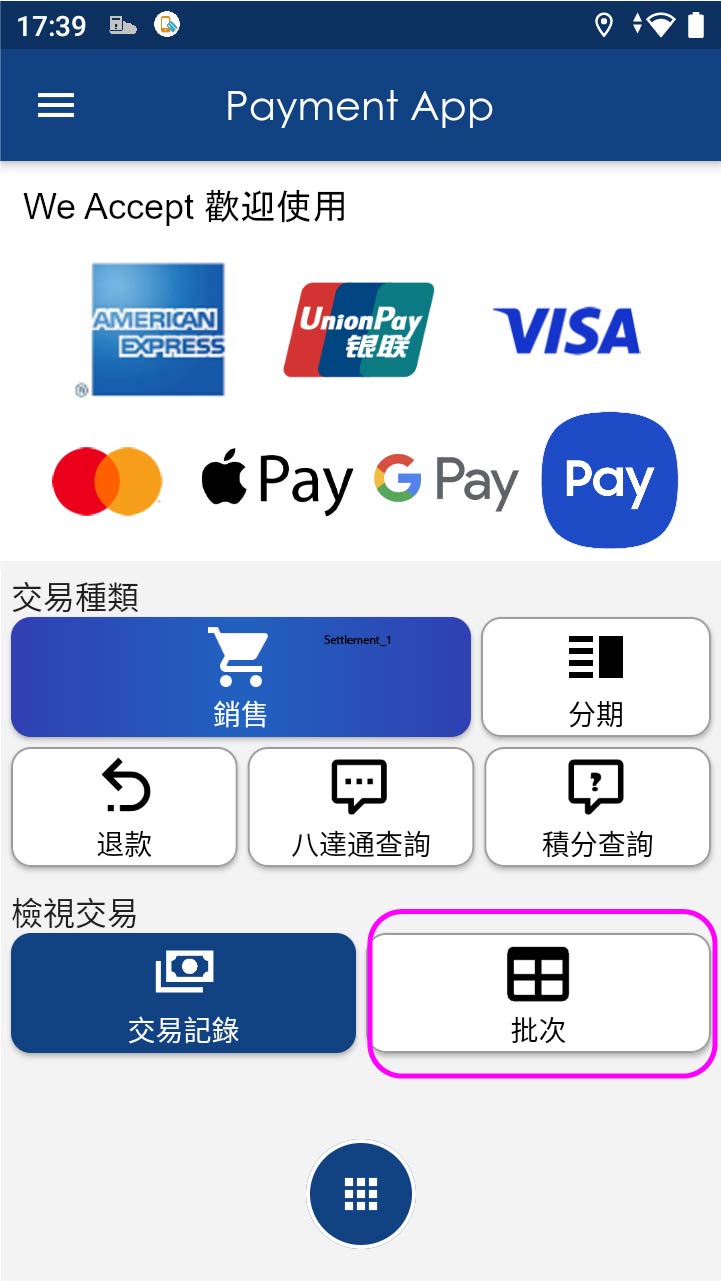

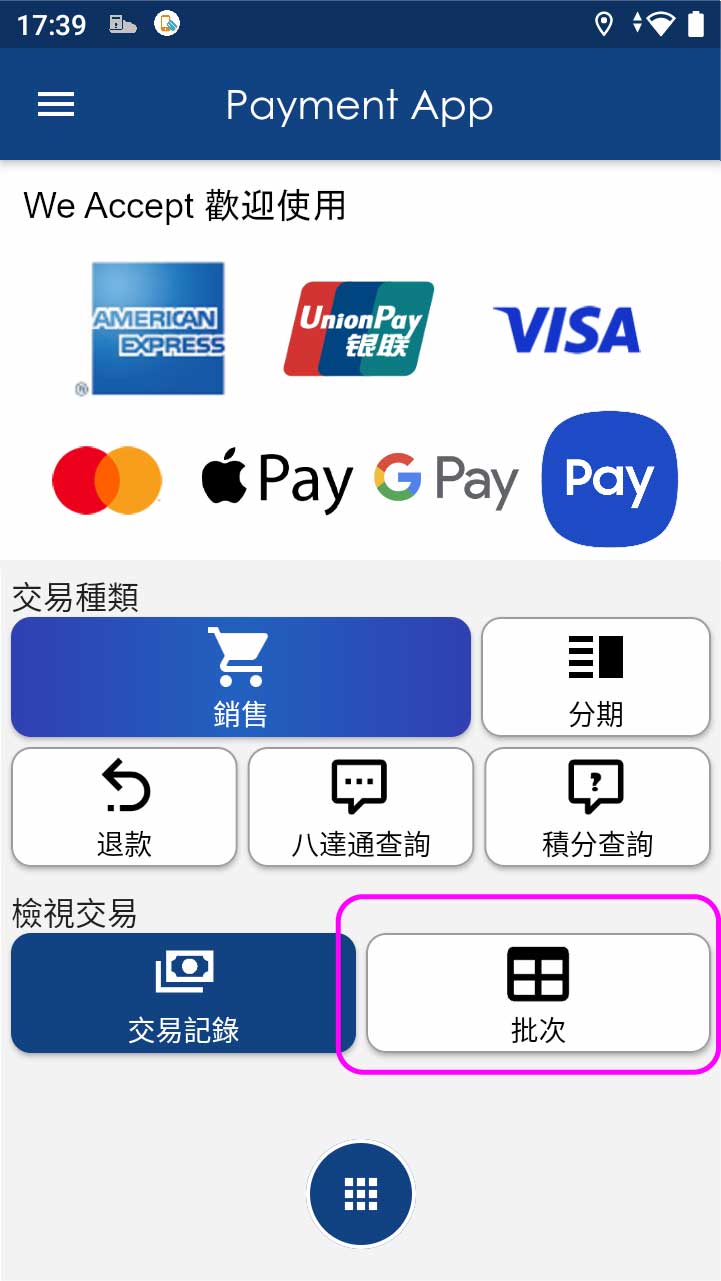

於主目錄按 [批次]

- 步驟 2 -

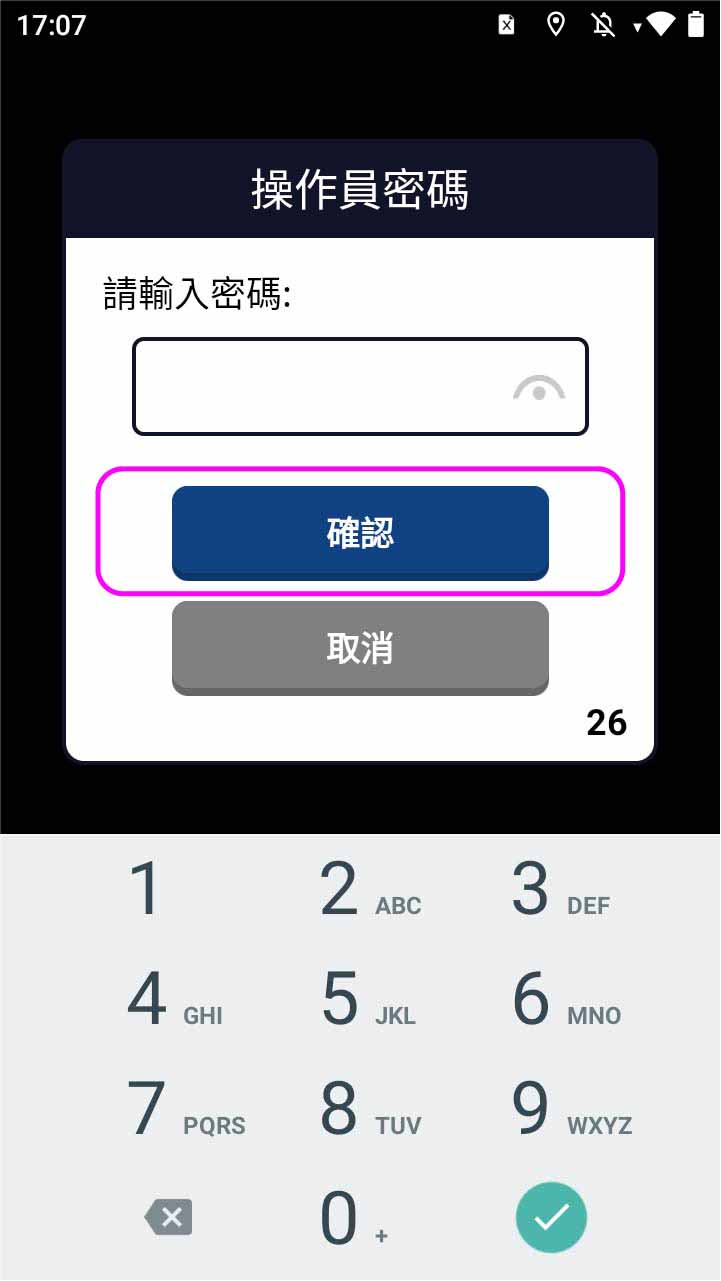

輸入操作員密碼，按 [確認]

- 步驟 3 -

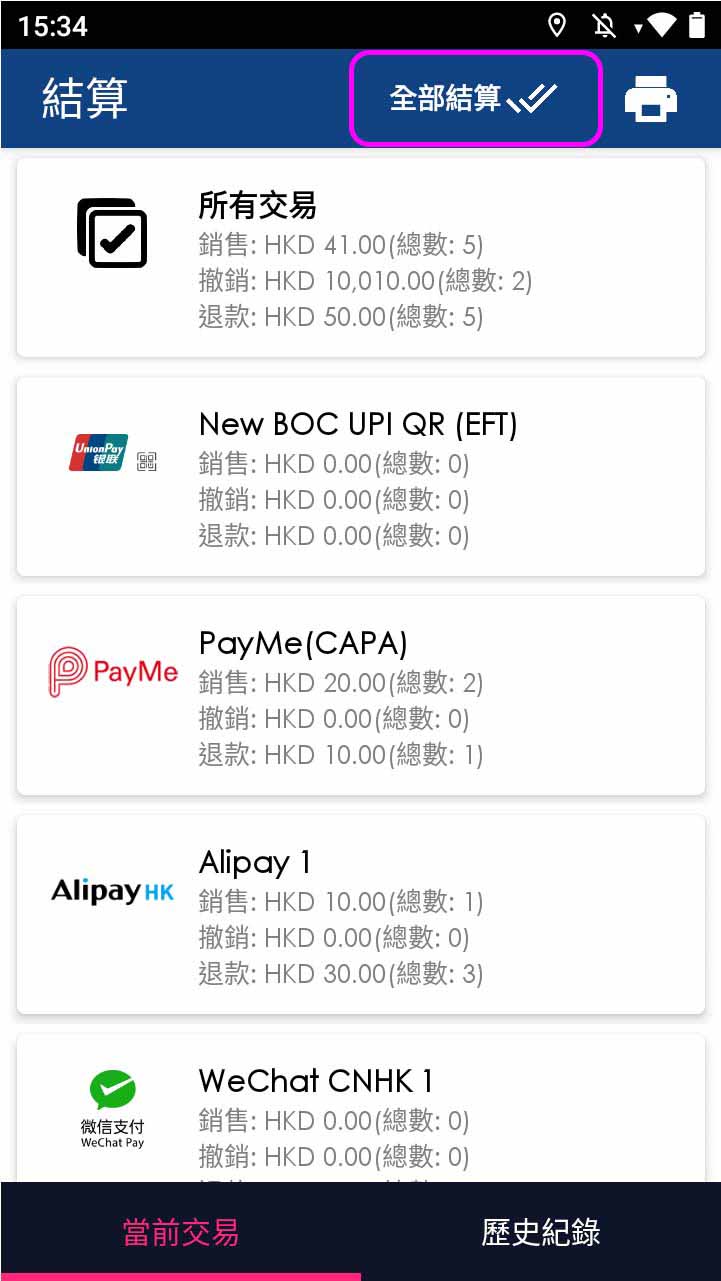

按 [全部結算]

- 步驟 4 -

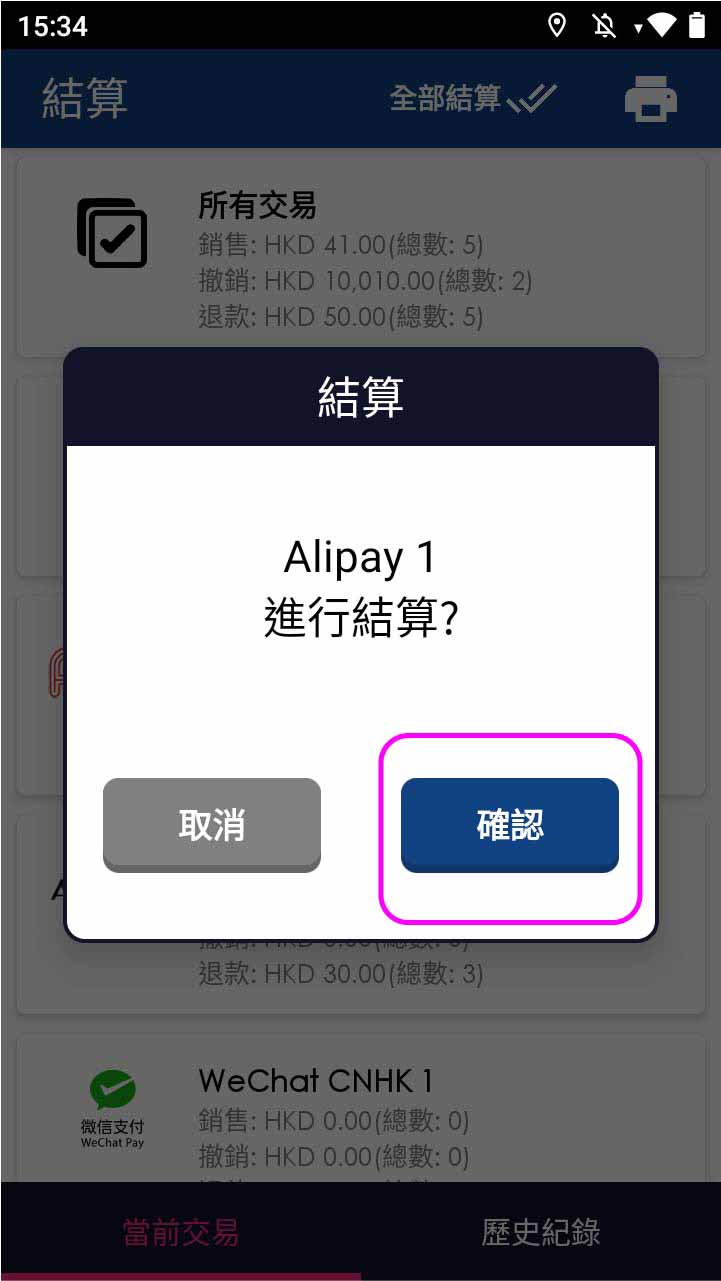

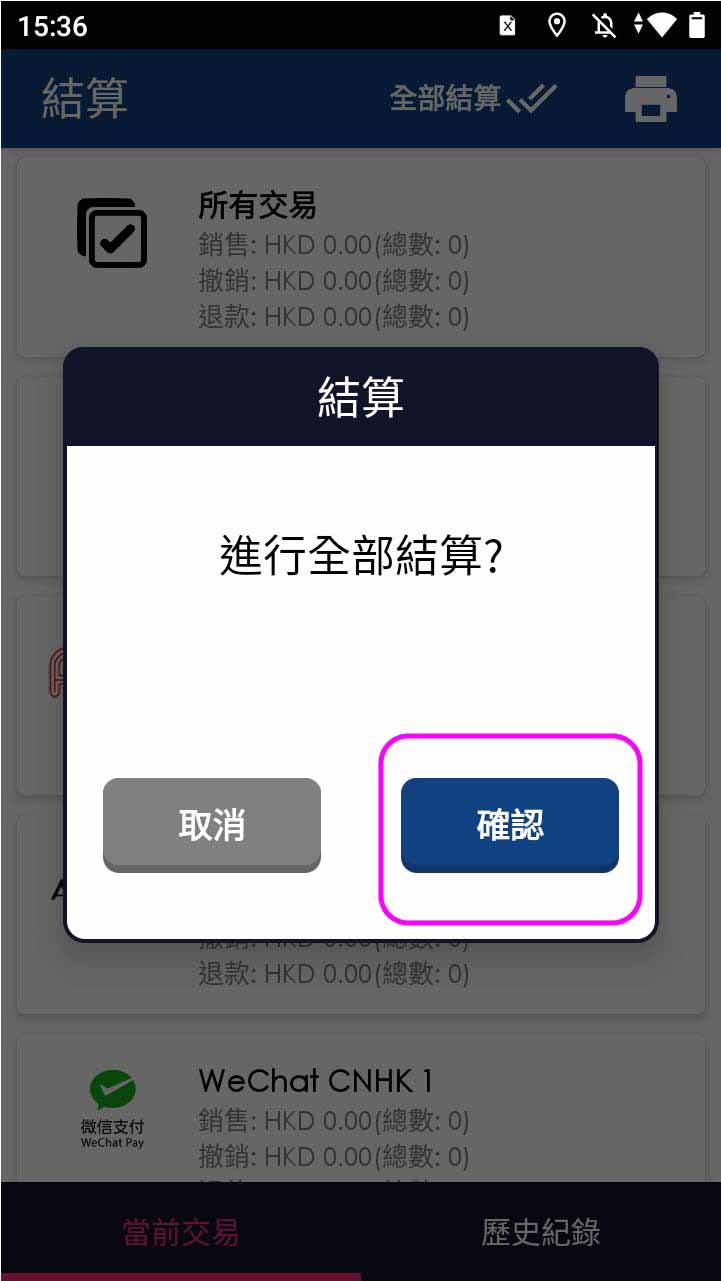

在對話框中按 [確認]

- 步驟 5 -

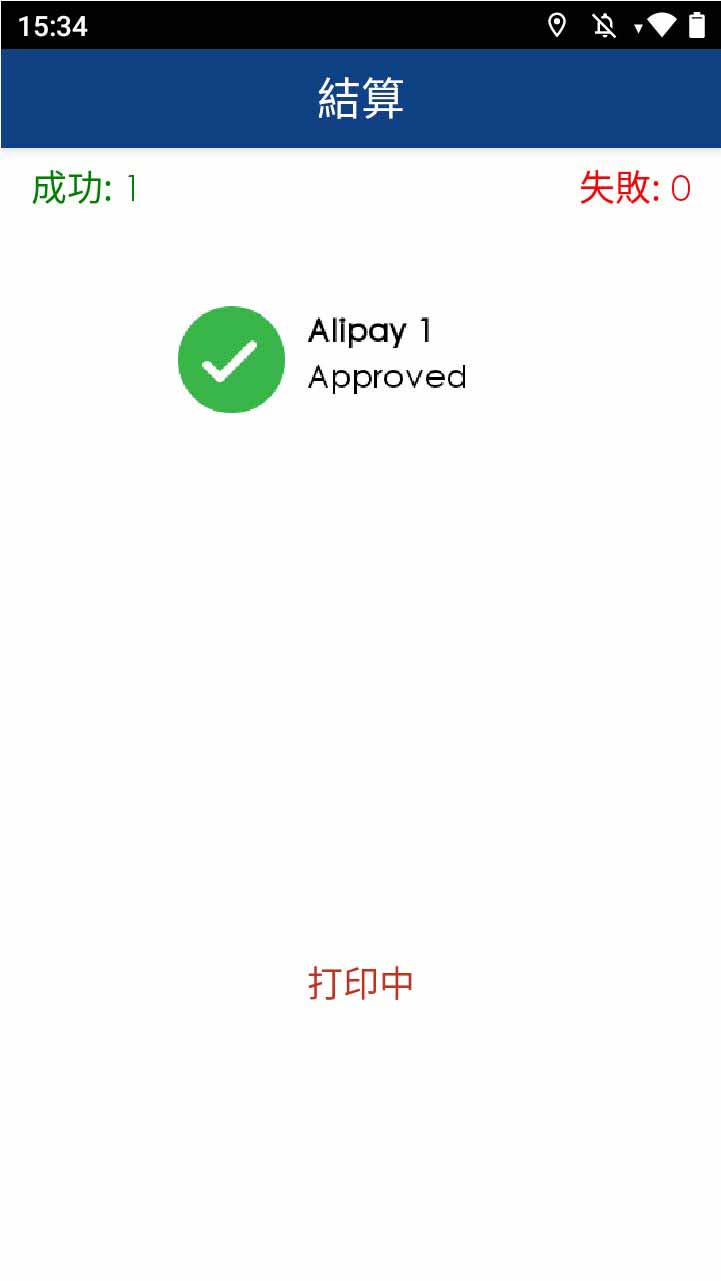

終端機打印單據

- 步驟 1 -

於主目錄按 [批次]

- 步驟 2 -

輸入操作員密碼，按 [確認]

- 步驟 3 -

選擇並按下交易類型

- 步驟 4 -

在對話框中按 [確認]

- 步驟 5 -

終端機打印單據

小費調整

- 步驟 1 -

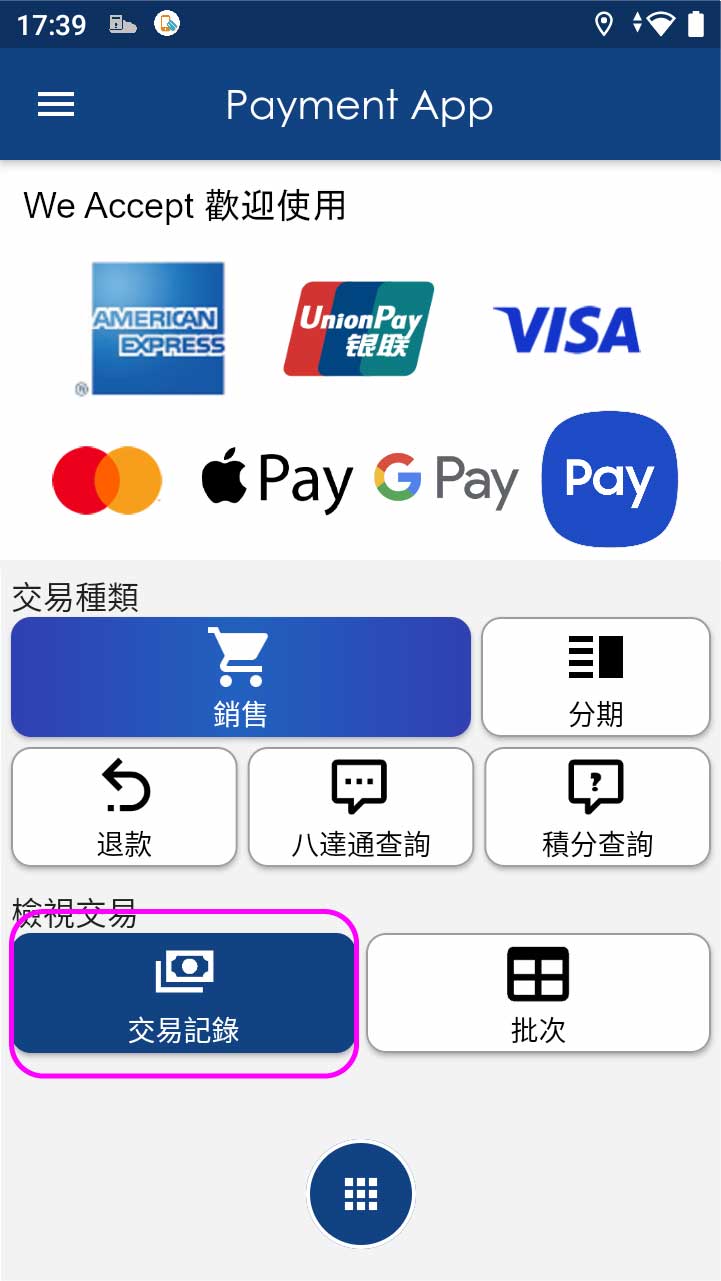

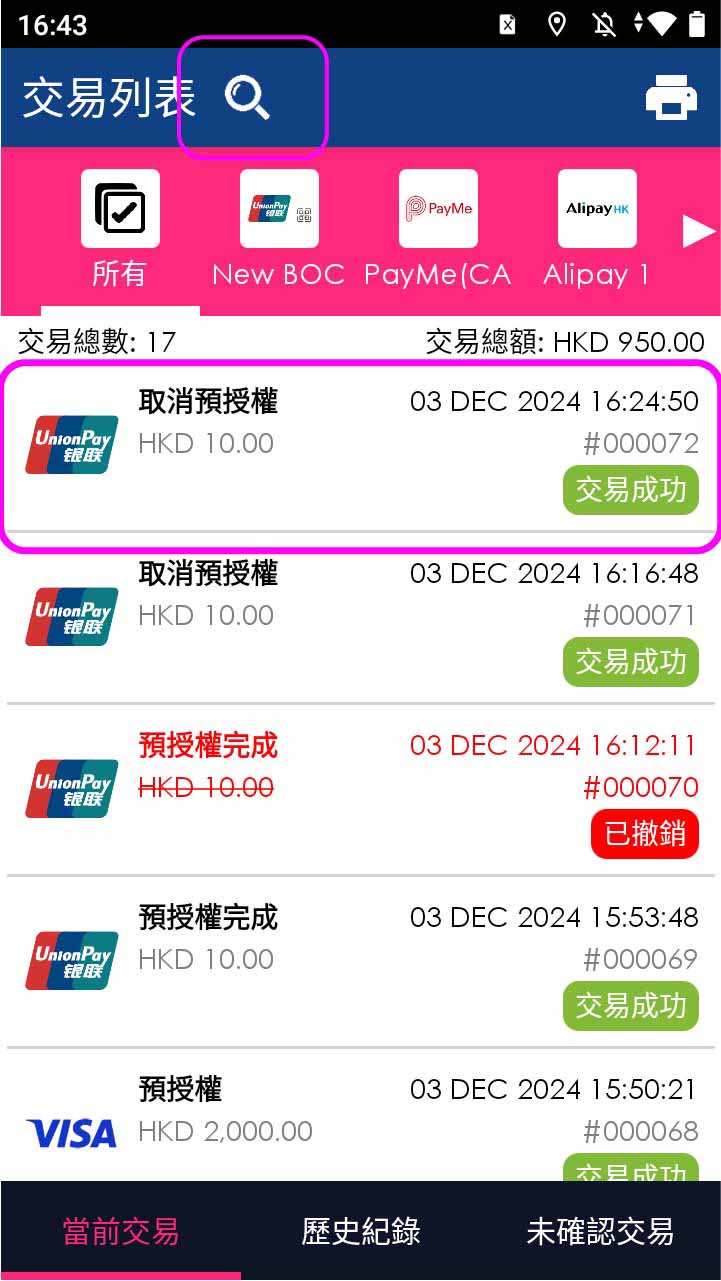

於主目錄按 [交易記錄]

- 步驟 2 -

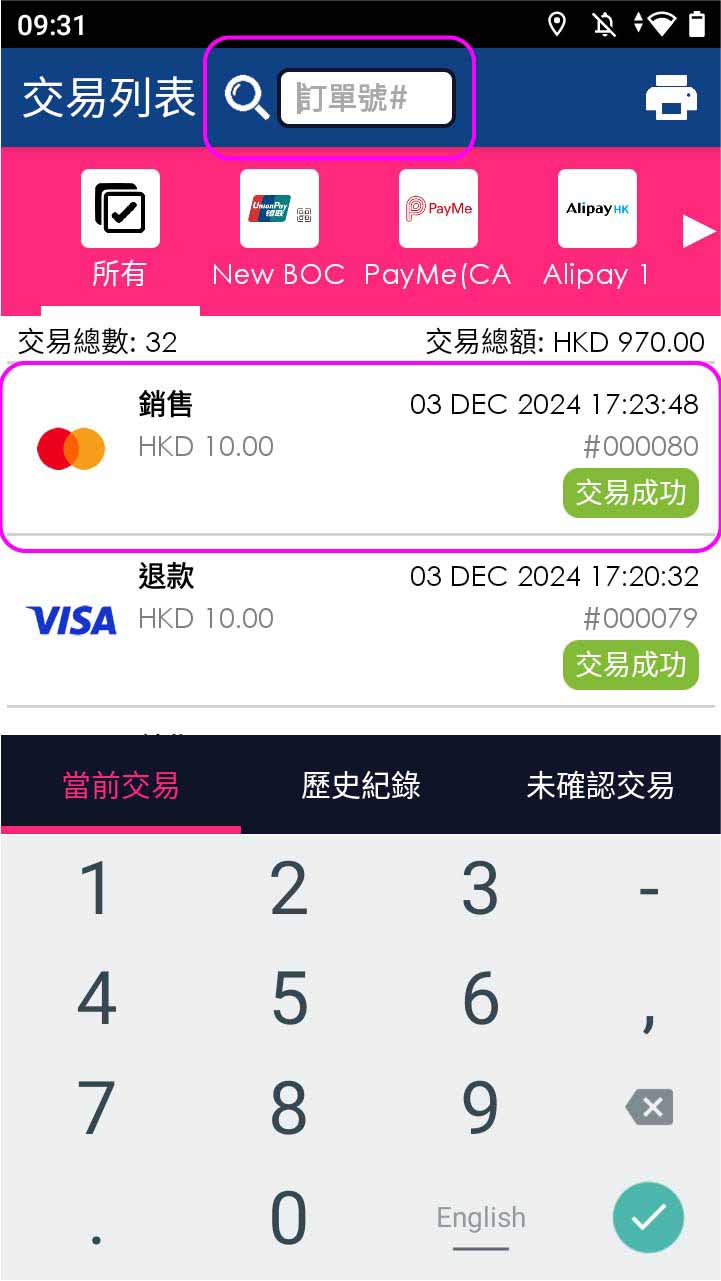

點擊 [放大鏡圖標] 輸入交易號或直接點擊該筆交易

- 步驟 3 -

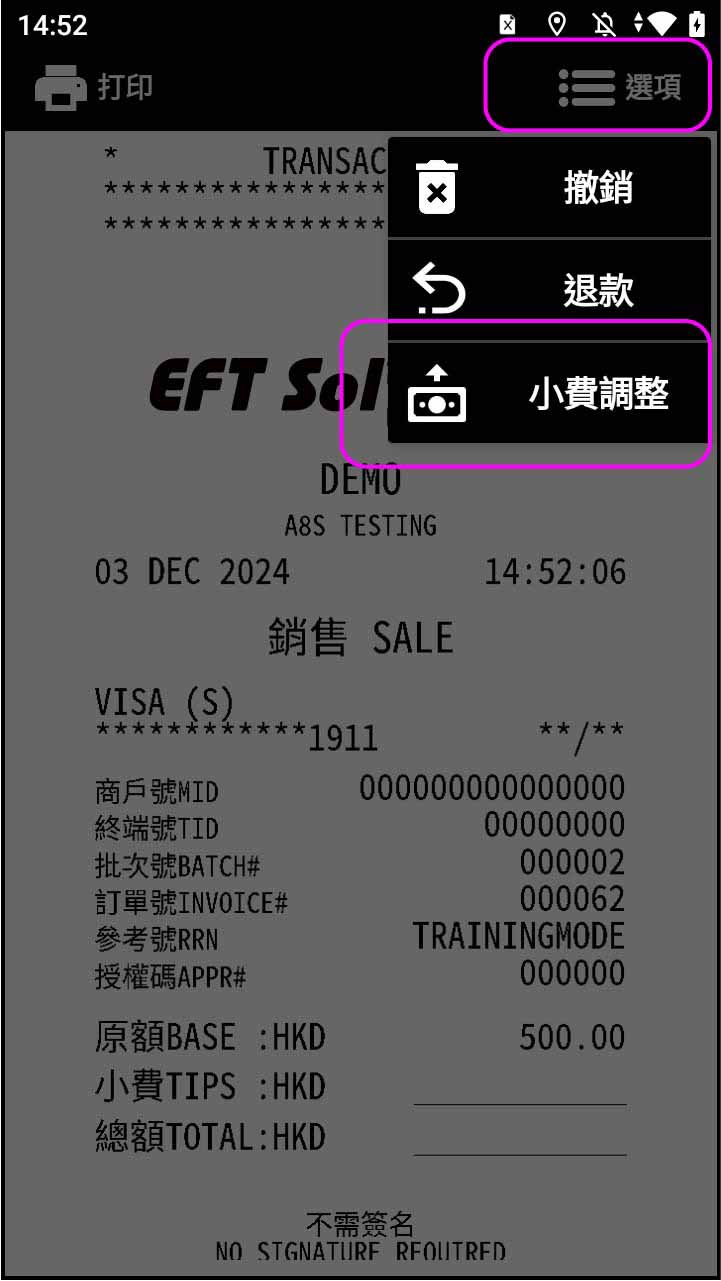

按 [選項] ，然後按 [小費調整] 按鈕

- 步驟 4 -

輸入調整後的總金額，按 [繼續]

- 步驟 5 -

交易完成，終端機打印單據

預授權

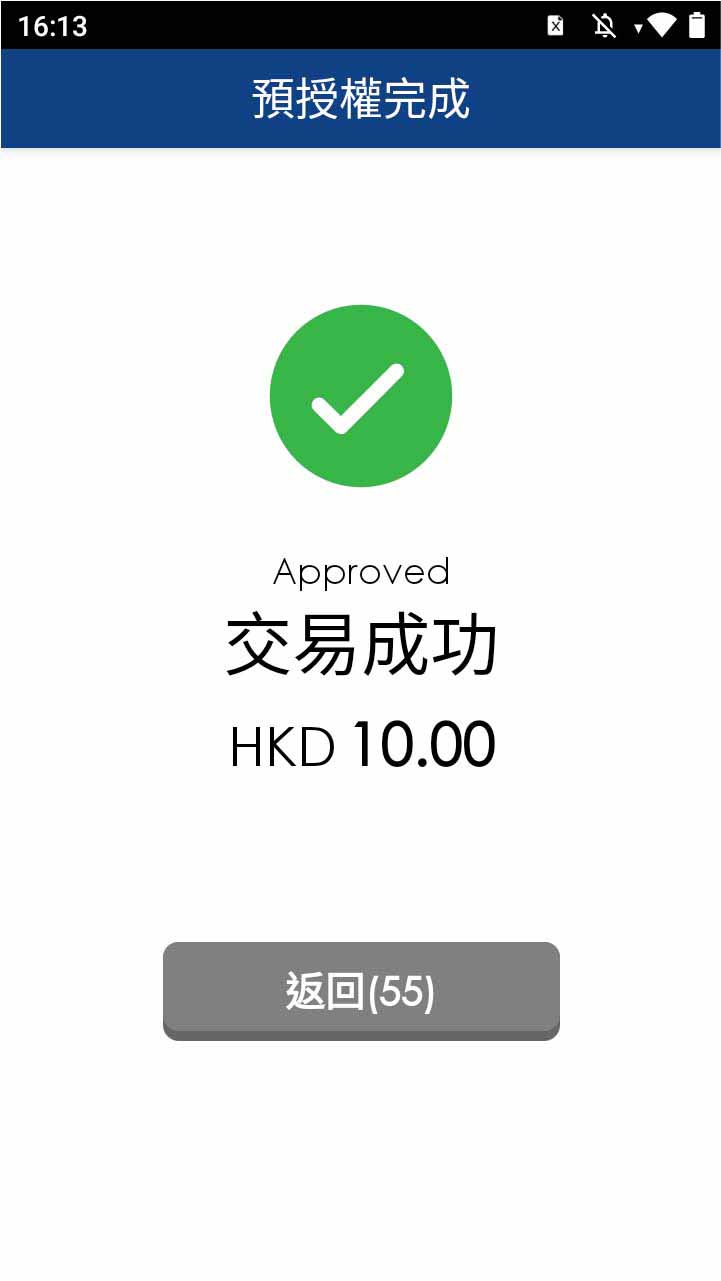

預授權完成

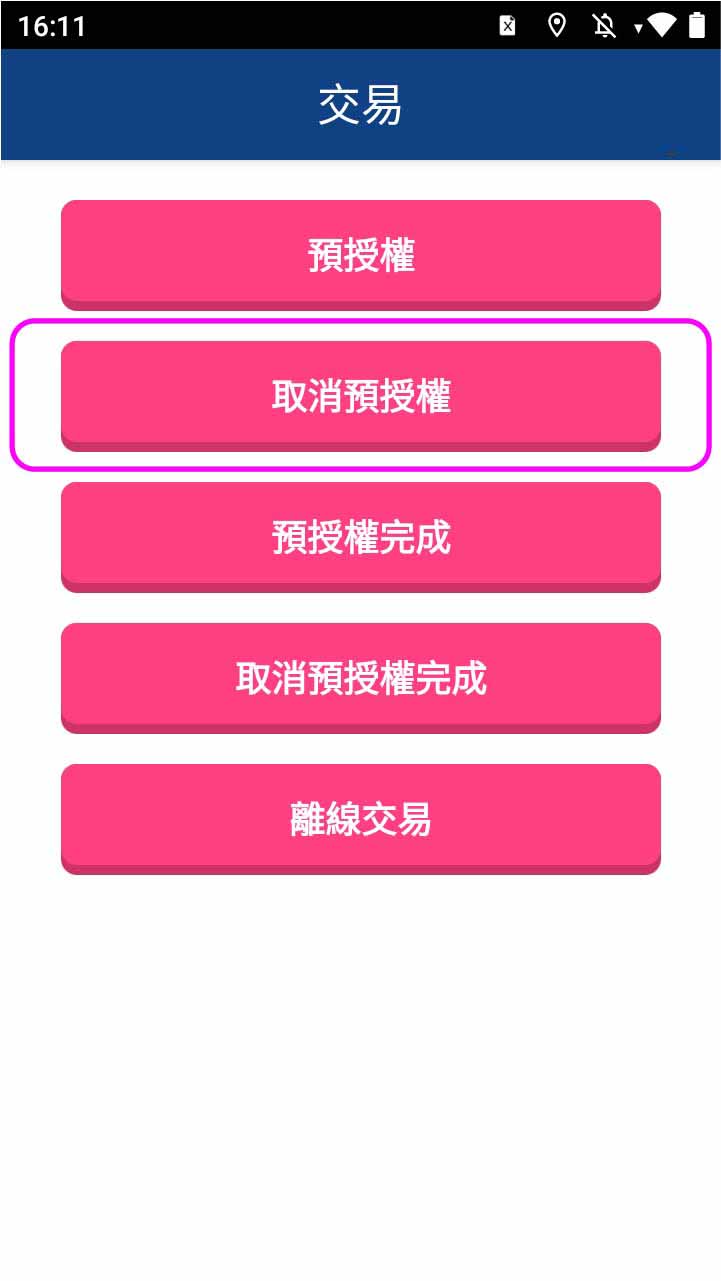

撤銷預授權

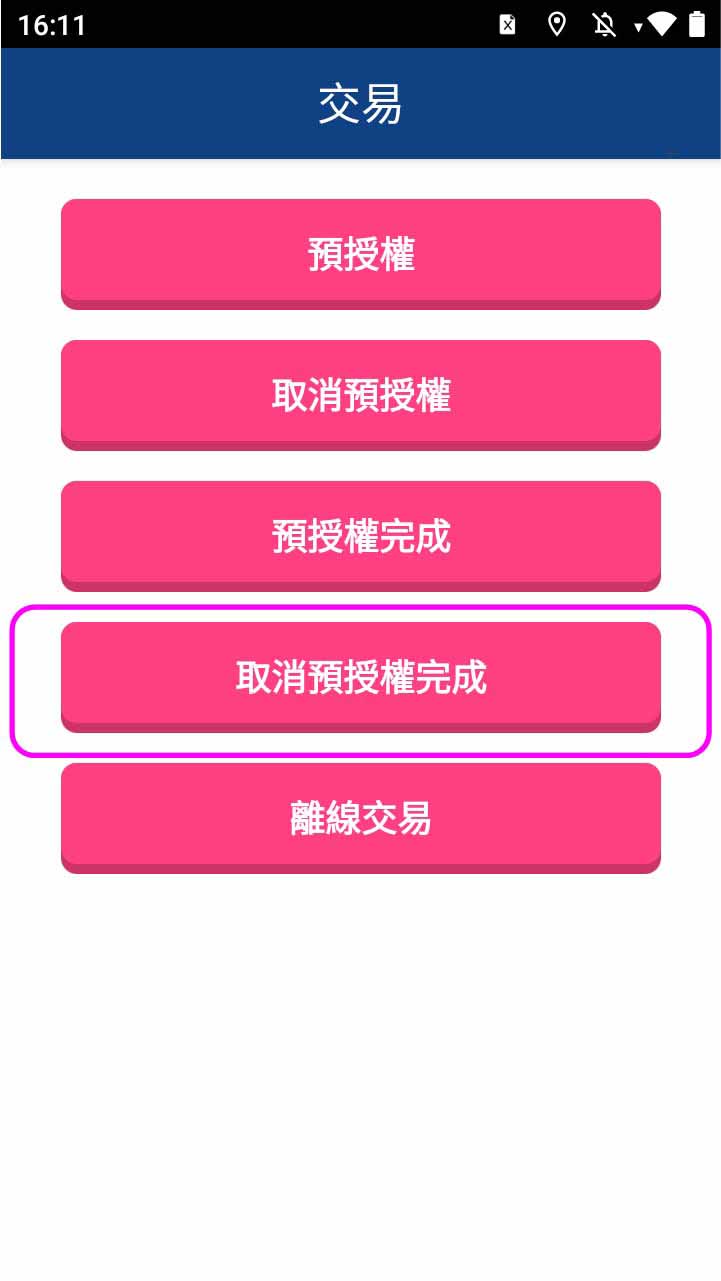

撤銷預授權完成

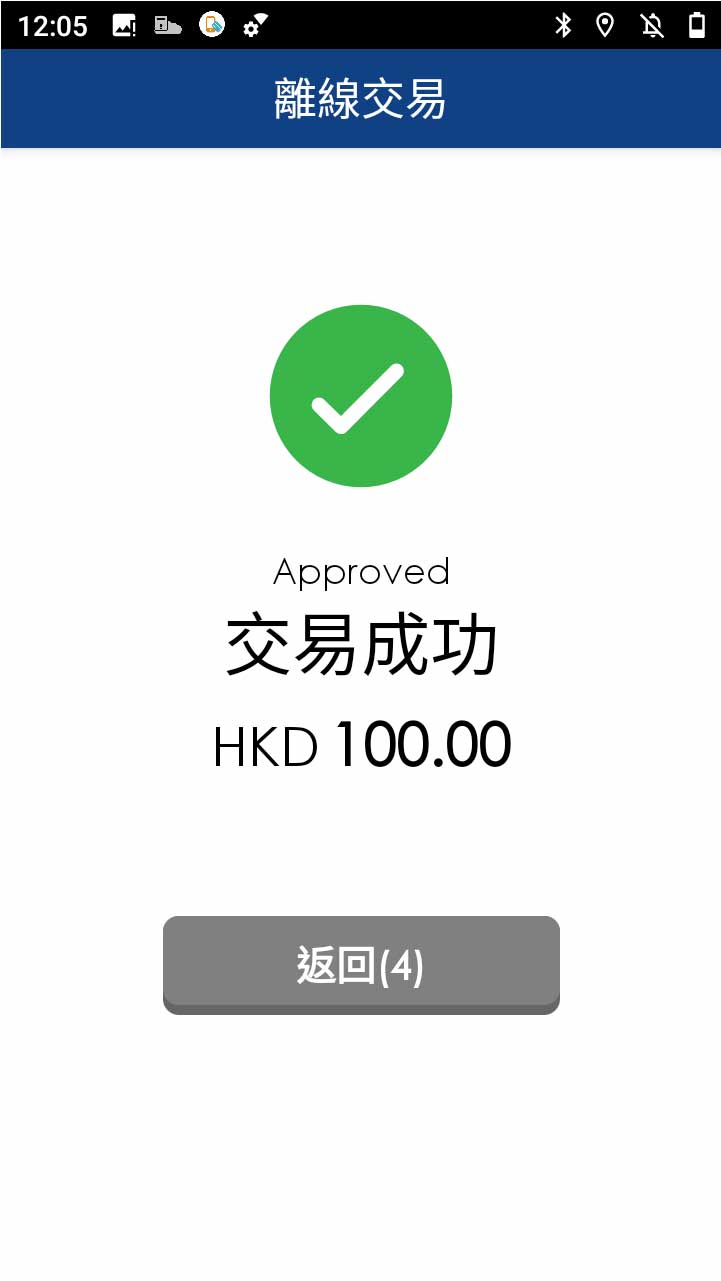

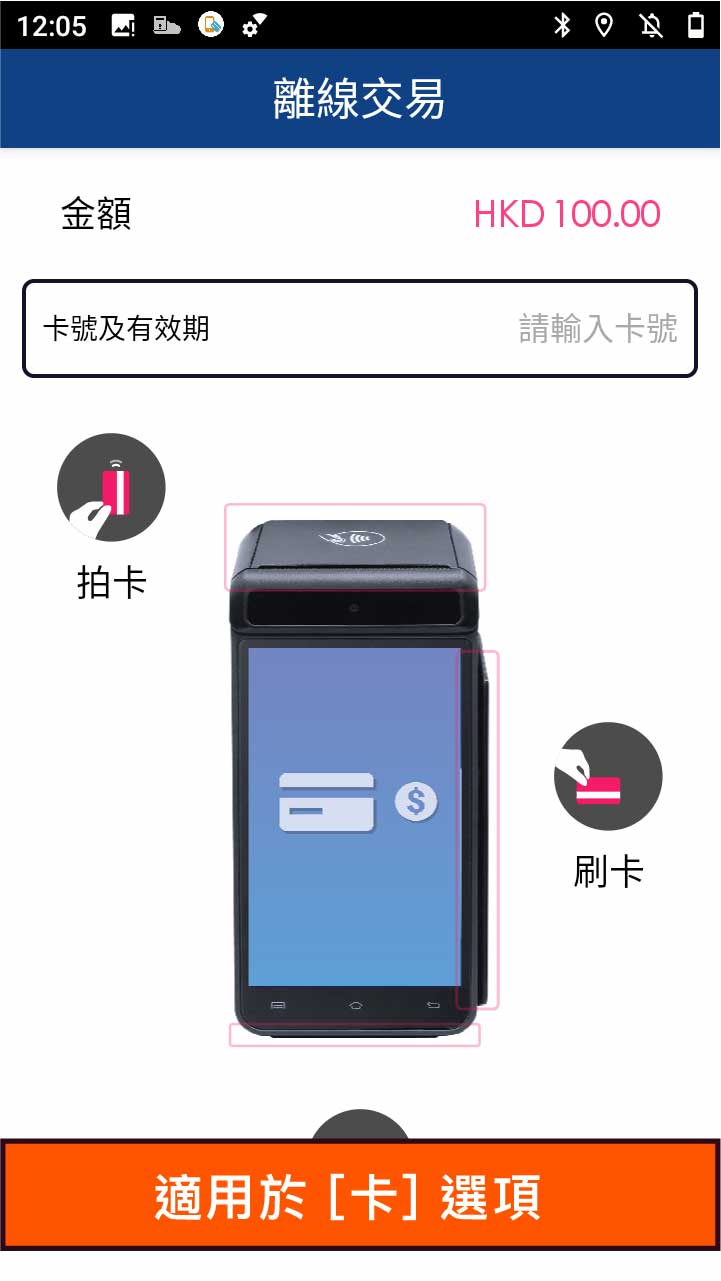

離線

- 步驟 1 -

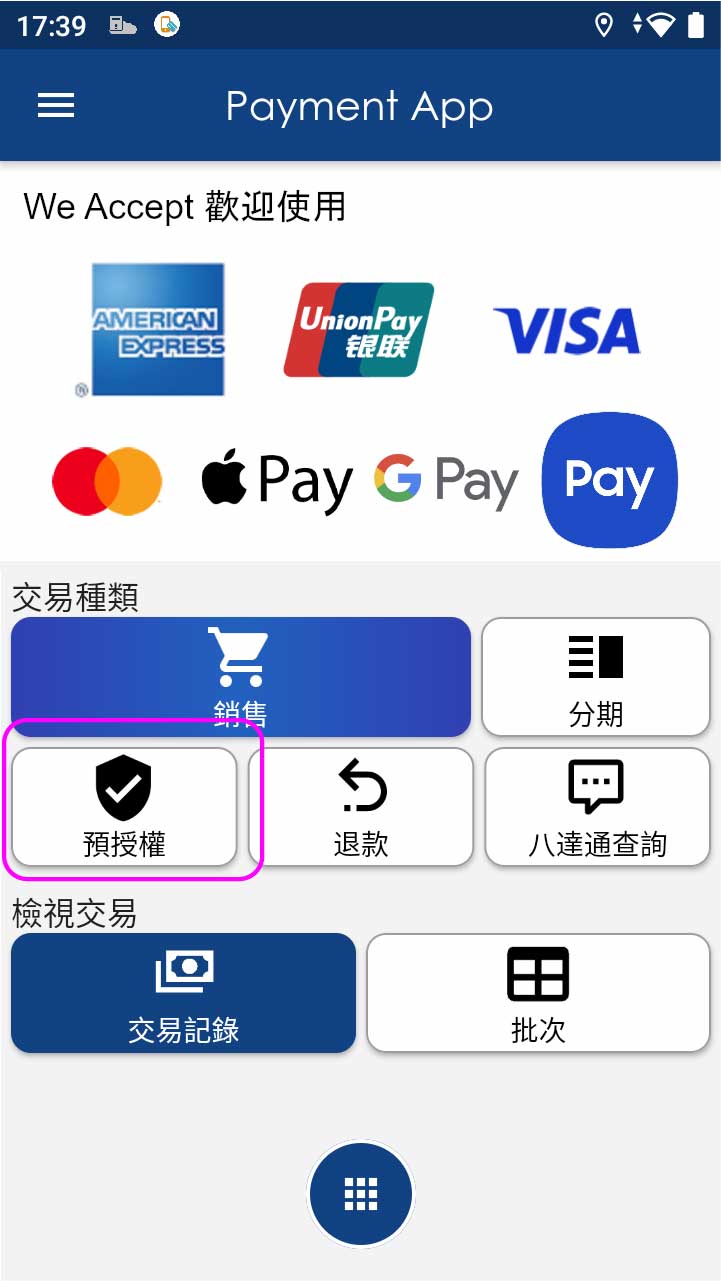

於主目錄按 [預授權]

- 步驟 2 -

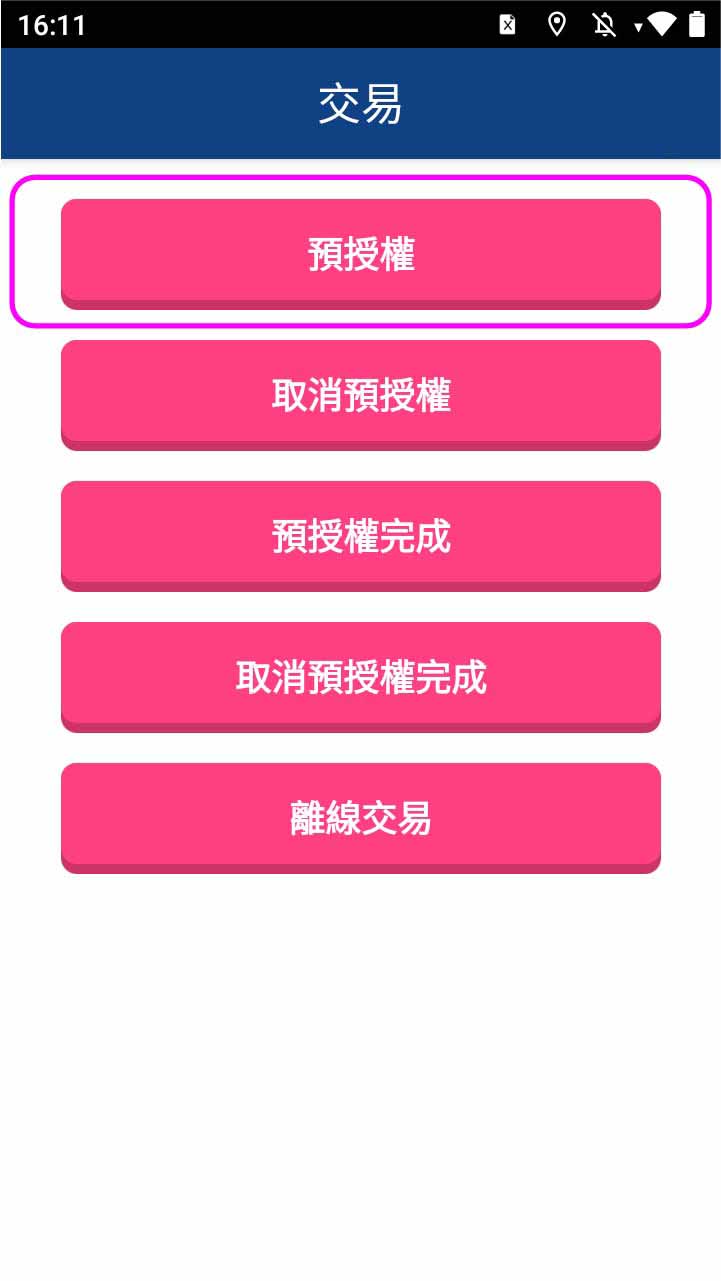

選擇 [預授權]

- 步驟 3 -

輸入預授權金額，選擇信用卡支付

- 步驟 4 -

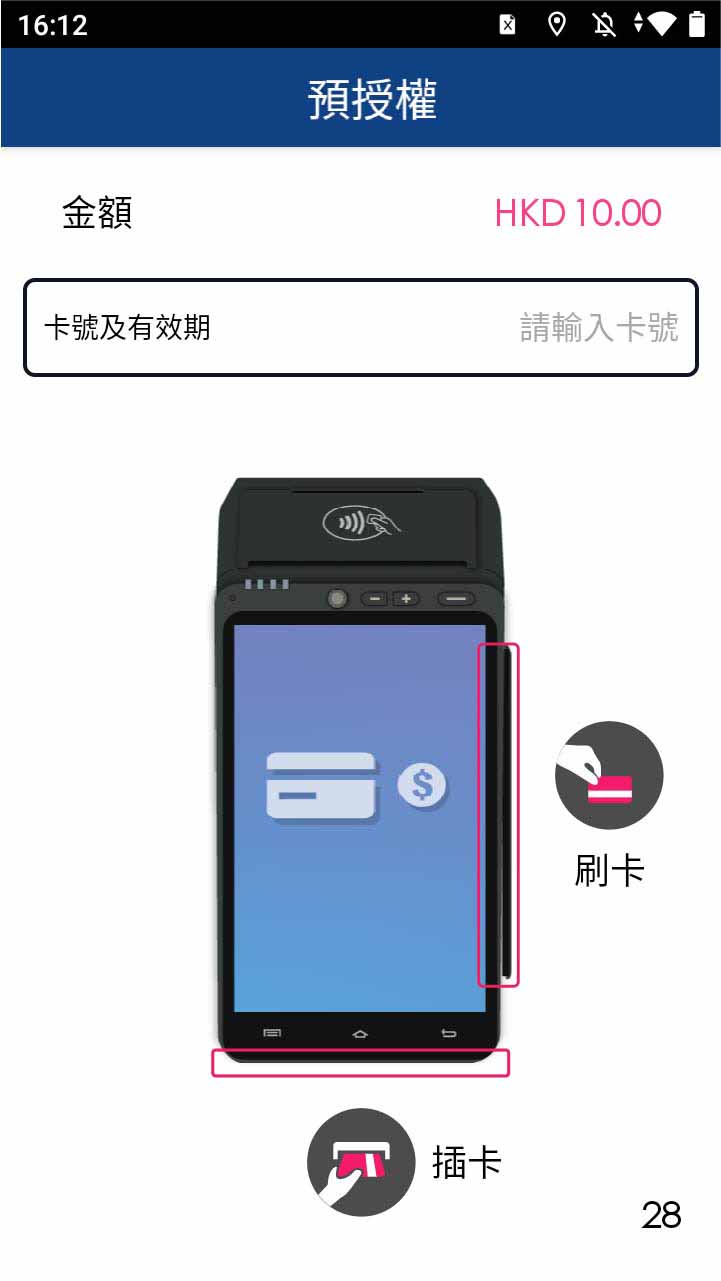

插卡/刷卡/ 手動輸入卡號及到期日

- 步驟 5 -

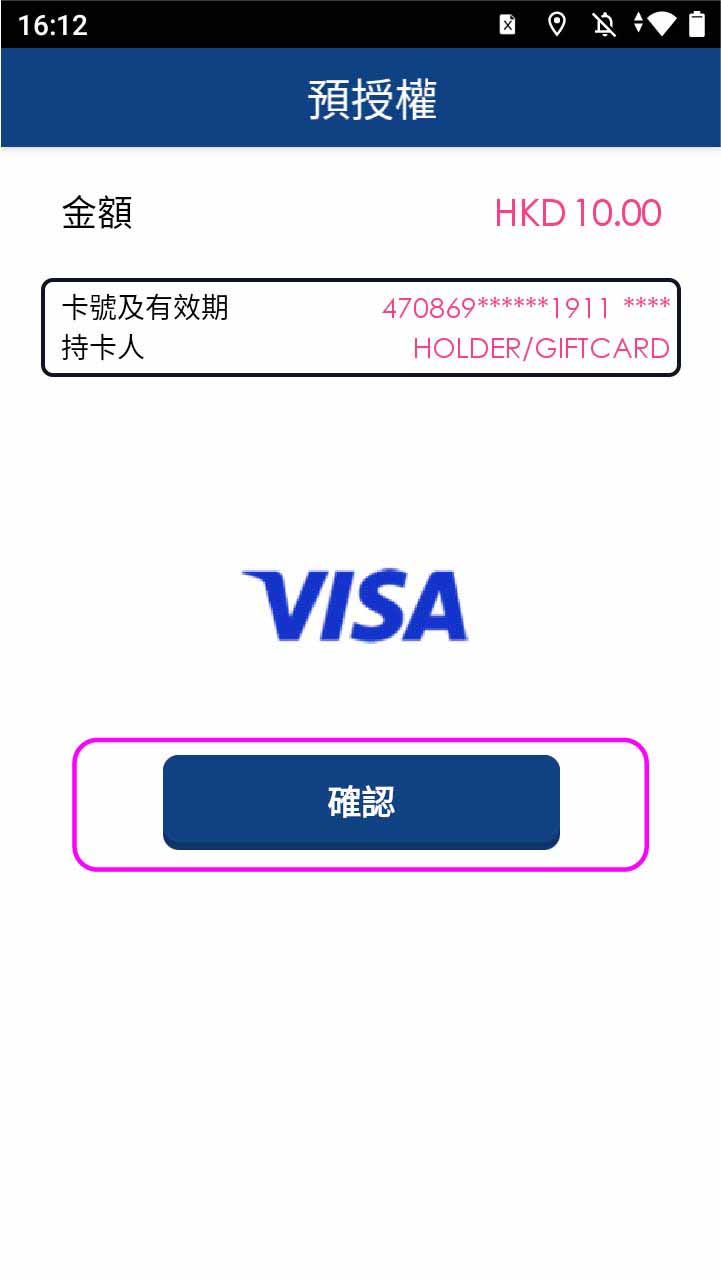

選擇 [確認]

- 步驟 6 -

如須客人簽署，可選擇電子簽署，或按[Skip]列印存根並請客人在存根上簽署

- 步驟 7 -

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [預授權]

- 步驟 2 -

選擇 [預授權完成]

- 步驟 3 -

輸入預授權完成金額，選擇 [繼續]

- 步驟 4 -

掃描預授權單據上的付款碼

- 步驟 5 -

插卡/刷卡/ 手動輸入卡號及到期日

- 步驟 6 -

選擇 [確認]

- 步驟 7 -

如須客人簽署，可選擇電子簽署，或按[Skip]列印存根並請客人在存根上簽署

- 步驟 8 -

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [預授權]

- 步驟 2 -

選擇 [取消預授權]

- 步驟 3 -

輸入操作員密碼，按 [確認]

- 步驟 4 -

輸入預授權金額，選擇 [繼續]

- 步驟 5 -

掃描預授權單據上的付款碼

- 步驟 6 -

插卡/刷卡/ 手動輸入卡號及到期日，按[確定]

- 步驟 7 -

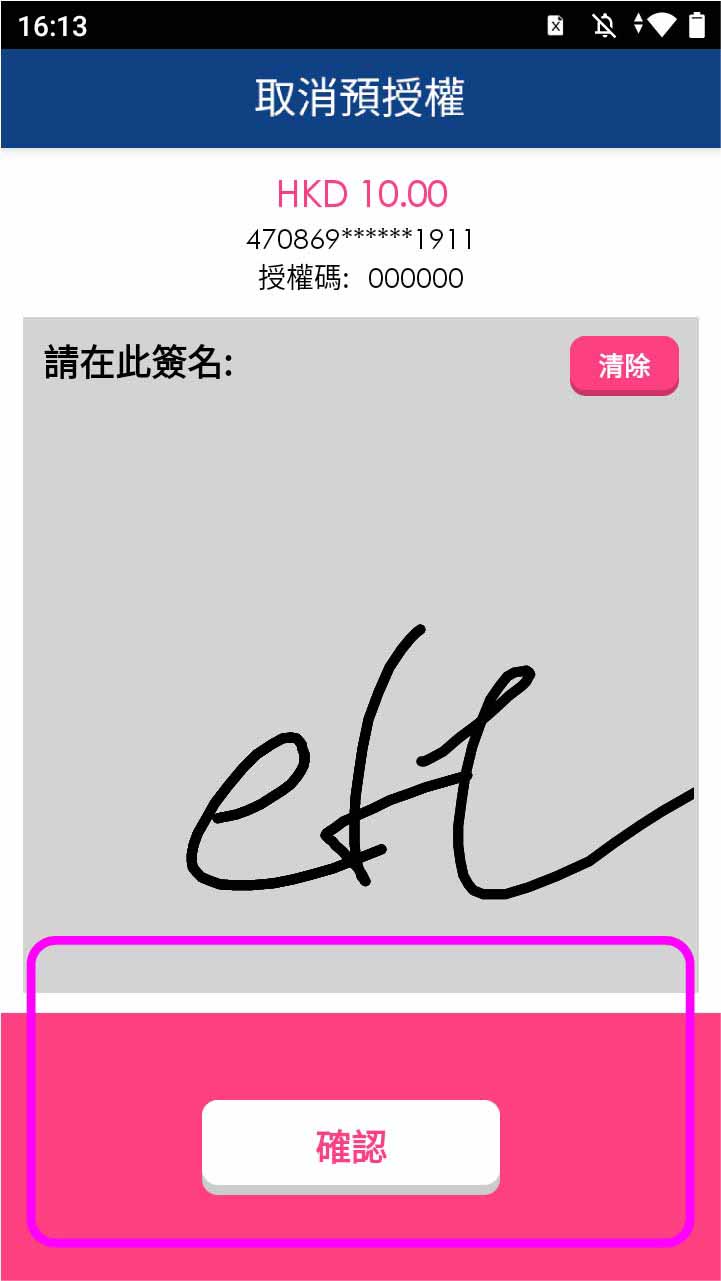

如須客人簽署，可選擇電子簽署，或按[Skip]列印存根並請客人在存根上簽署

- 步驟 8 -

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [預授權]

- 步驟 2 -

選擇 [撤銷預授權完成]

- 步驟 3 -

於「交易號」搜索框內輸入交易號或直接點擊該筆交易

- 步驟 4 -

按 [選項] ，然後按 [撤銷] 按鈕

- 步驟 5 -

輸入操作員密碼，按 [確認]

- 步驟 6 -

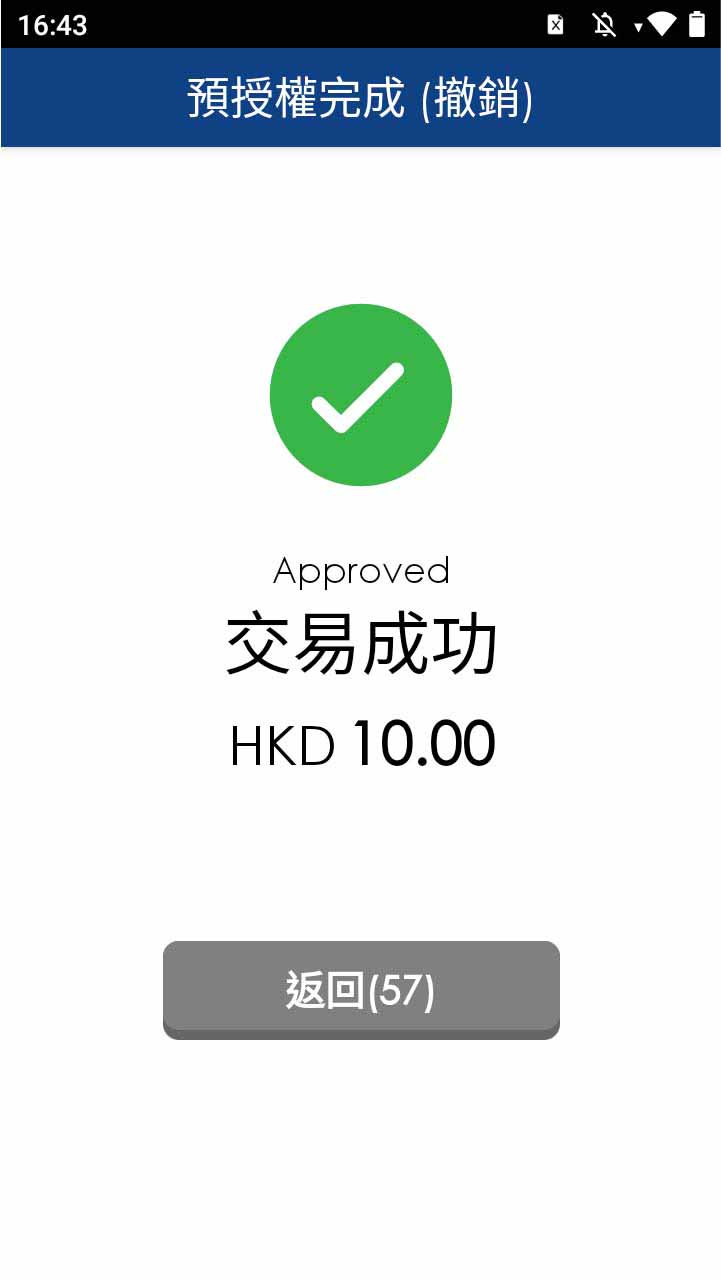

交易完成，終端機打印單據

- 步驟 1 -

於主目錄按 [離線交易]

- 步驟 2 -

輸入操作員密碼，按 [確認]

- 步驟 3 -

輸入離線交易金額，然後選擇 [卡] 或 [二維碼]

- 步驟 4 -

拍卡/插卡/刷卡輸入資料

- 步驟 5 -

輸入授權碼，按[繼續]

- 步驟 6 -

掃描預授權單據上的付款碼

- 步驟 7 -

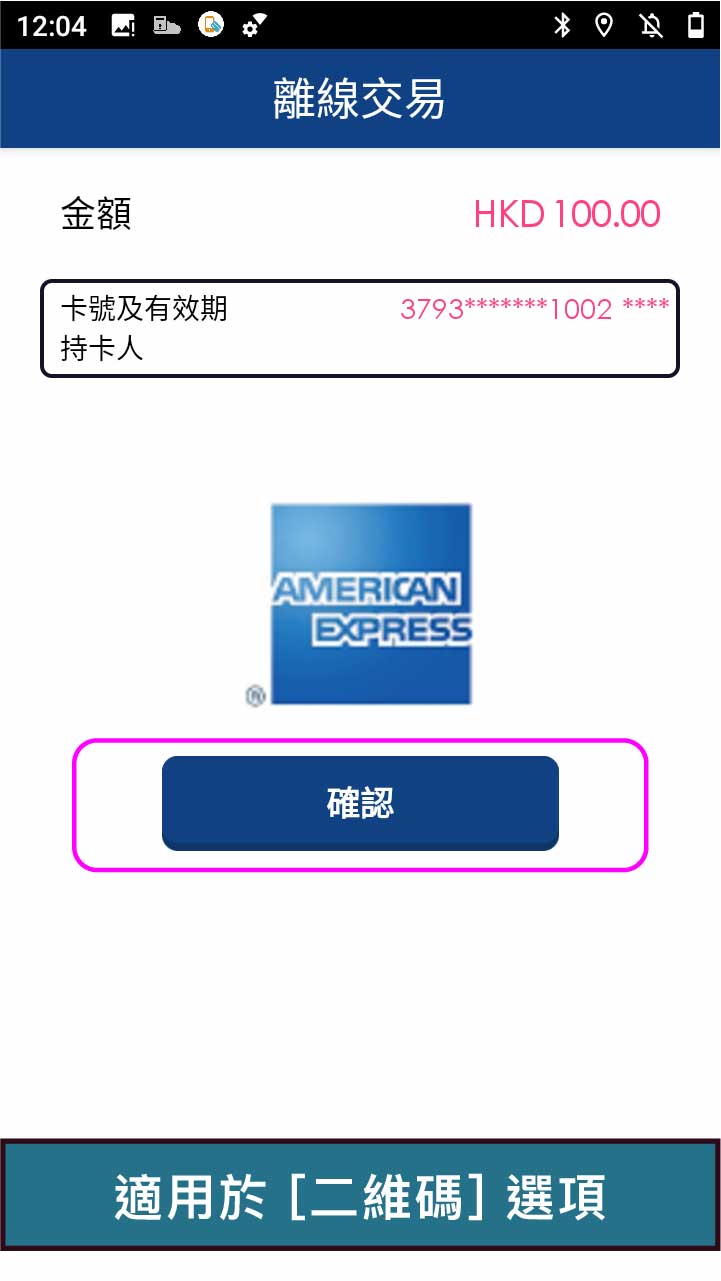

檢查信用卡資料，然後按[確認]

- 步驟 8 -

如須客人簽署，可選擇電子簽署，或按[確認]列印存根並請客人在存根上簽署

- 步驟 9 -

交易完成，終端機打印單據

重印單據

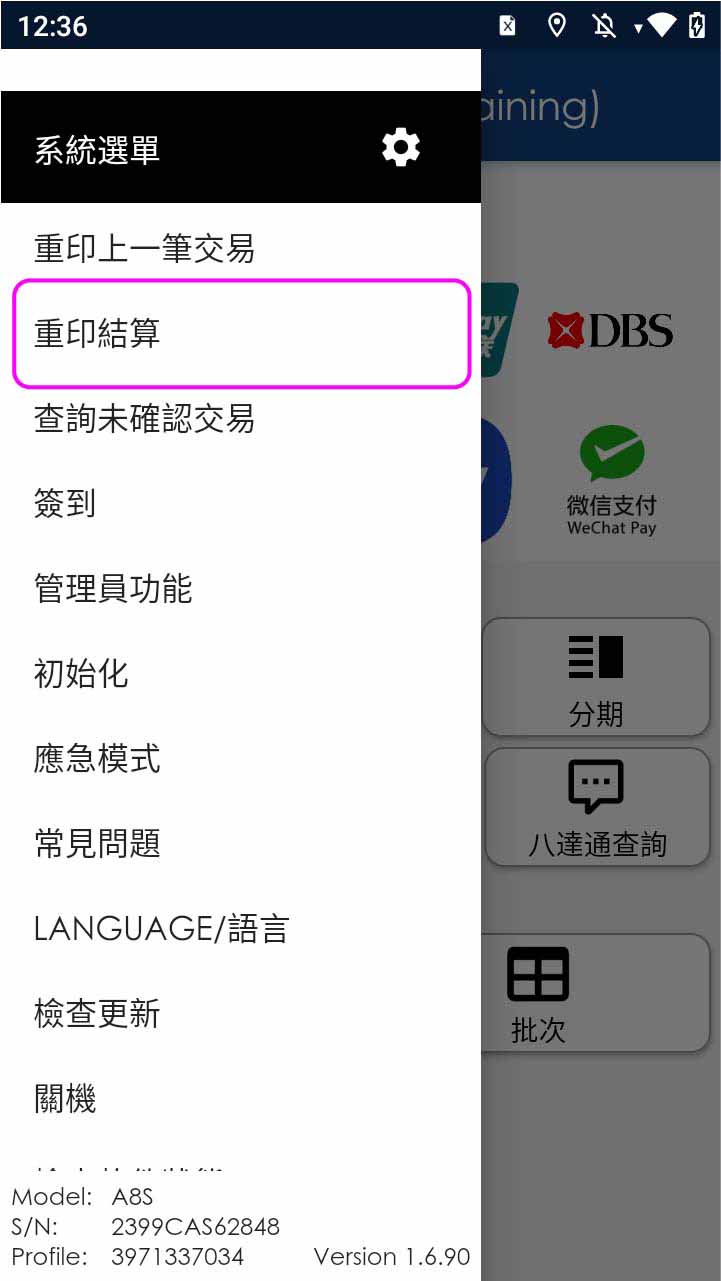

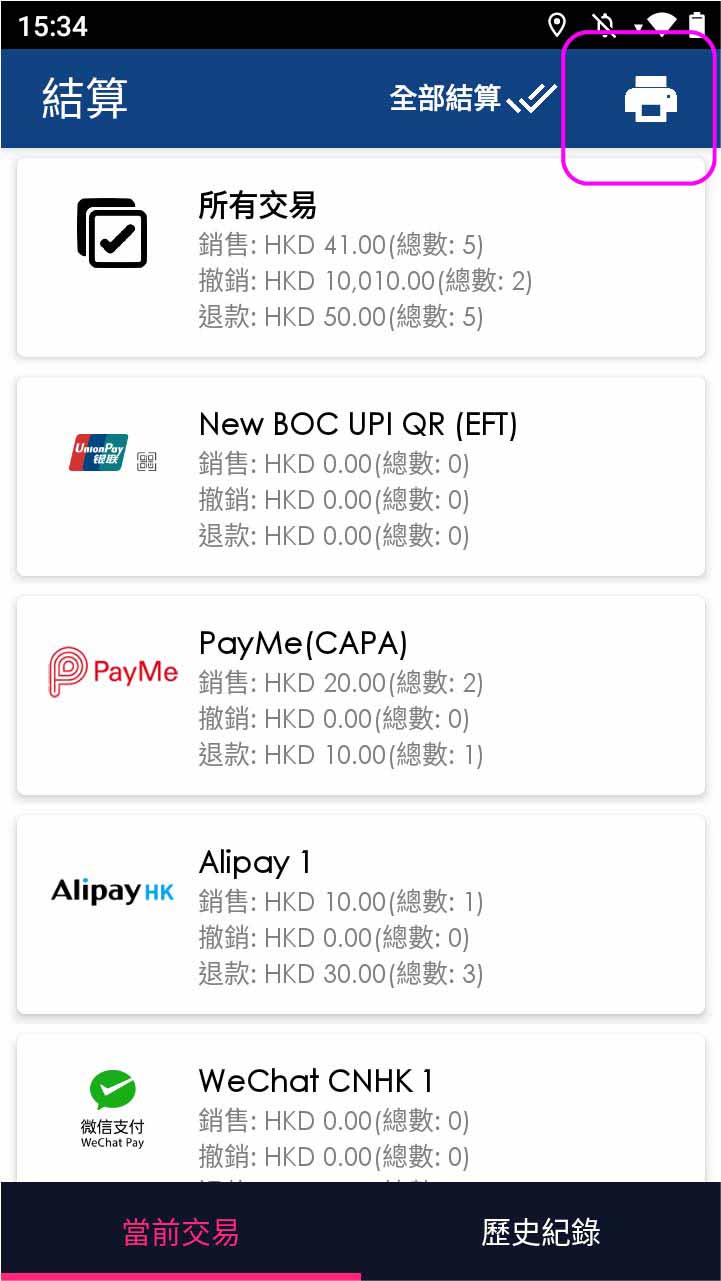

重印上一次結算

查詢/打印明細

查詢/打印匯總

易辦事交易查詢/重印

易辦事重印結算

易辦事打印總額

- 步驟 1 -

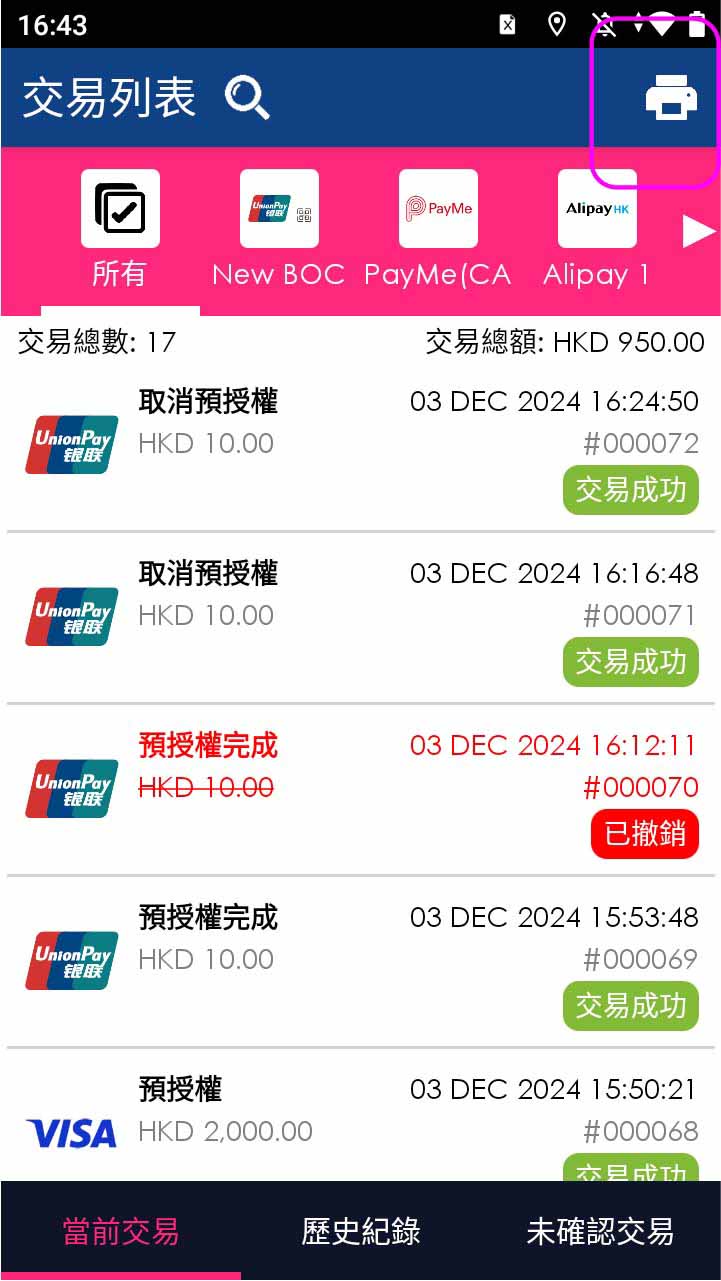

於主目錄按 [交易記錄]

- 步驟 2 -

按 [放大鏡圖標] 輸入交易號或直接點擊該筆交易

- 步驟 3 -

按 [打印]，終端機打印單據
